Page 18 MiniRanger Plus 7ML19981CJ01

Installation

Interconnection

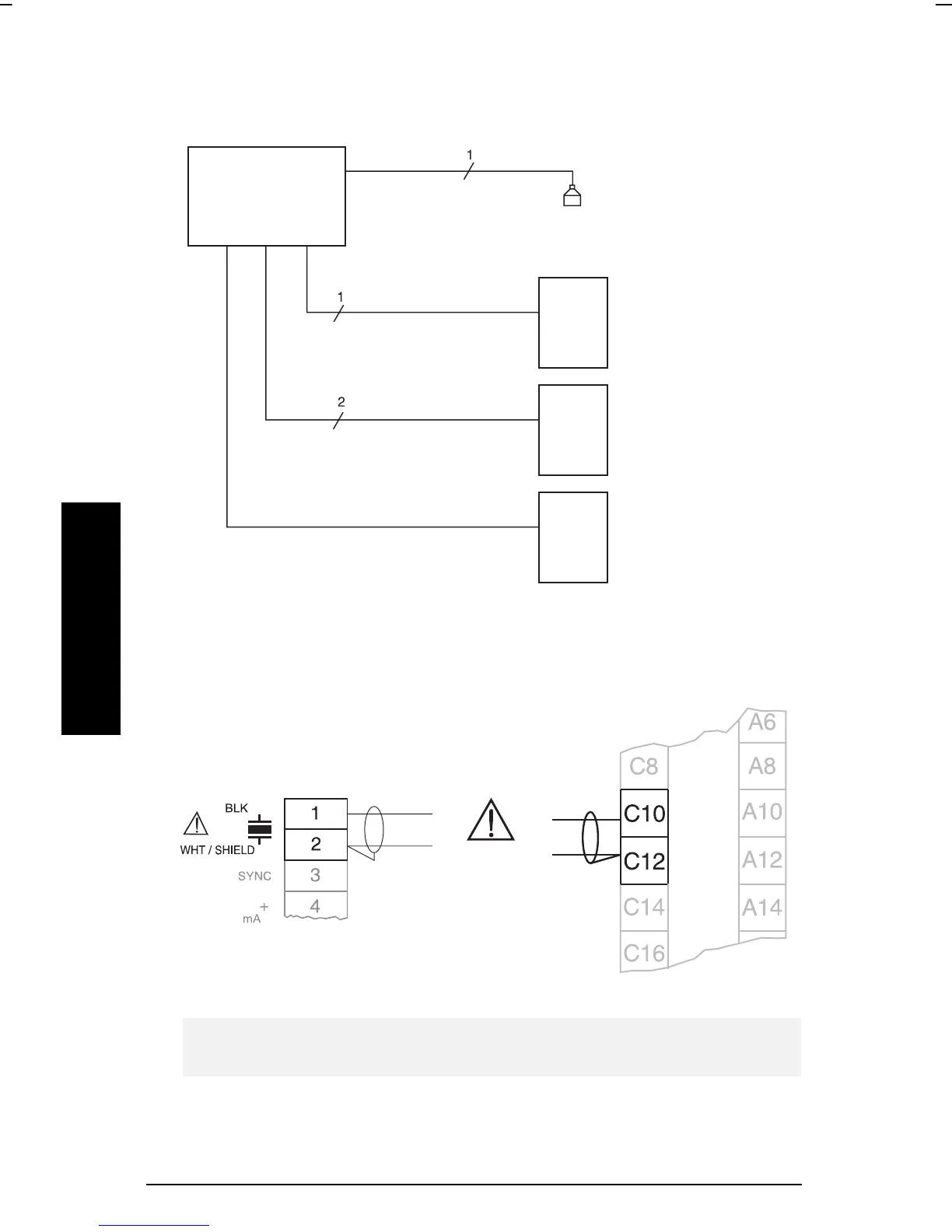

System Diagram

Transducer

Wall Mount Rack and Panel Mount

to transducer

Note:

Refer to transducer instruction manual for location and mounting details.

MiniRanger Plus

mA output

isolated

bipolar current *

(Milltronics communications)

*rack and panel only

*Milltronics transducer,

see Specifications

customer device

customer alarm, pump

or control device

Milltronics BIC-2,

buffered interface

converter

blk

wht/shld
