Page 20 MiniRanger Plus 7ML19981CJ01
Installation

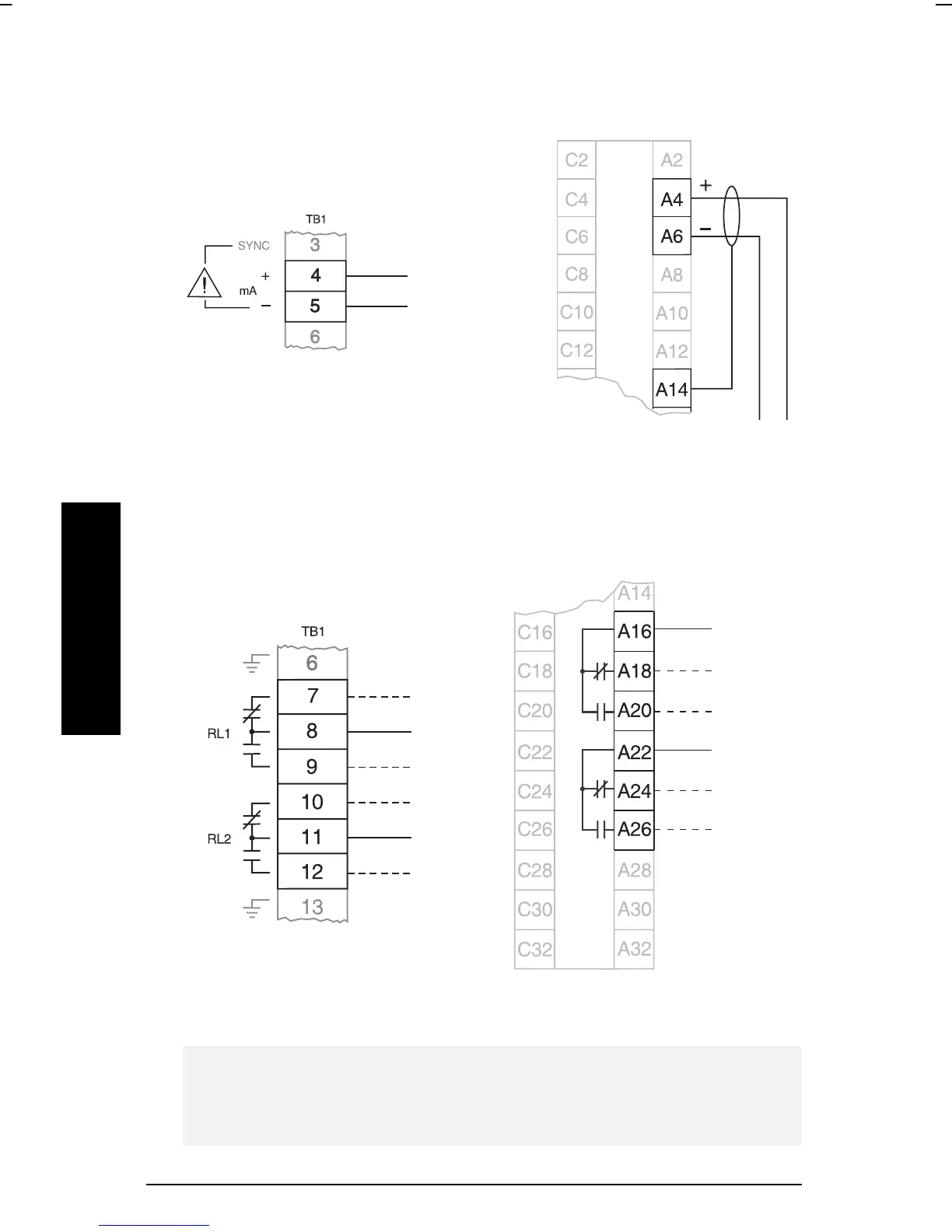

Current Output
Wall Mount Rack and Panel Mount
isolated mA output, 750 Ω max load
Relay Output
Wall Mount Rack and Panel Mount
relays shown in de-energized state, contacts rated 5 A at 250 V non-inductive
Note:
All relays are certified for use in equipment where the short circuit capacity
of the circuits in which they are connected is limited by fuses having
ratings not exceeding the rating of the relays.
to customer
instrumentation
to customer
instrumentation
n.c
com
n.o.
n.c.
com
n.o
com
n.c
n.o.
com
n.c.
n.o
relay 2
relay 1
