Page 14 MiniRanger Plus 7ML19981CJ01
Installation

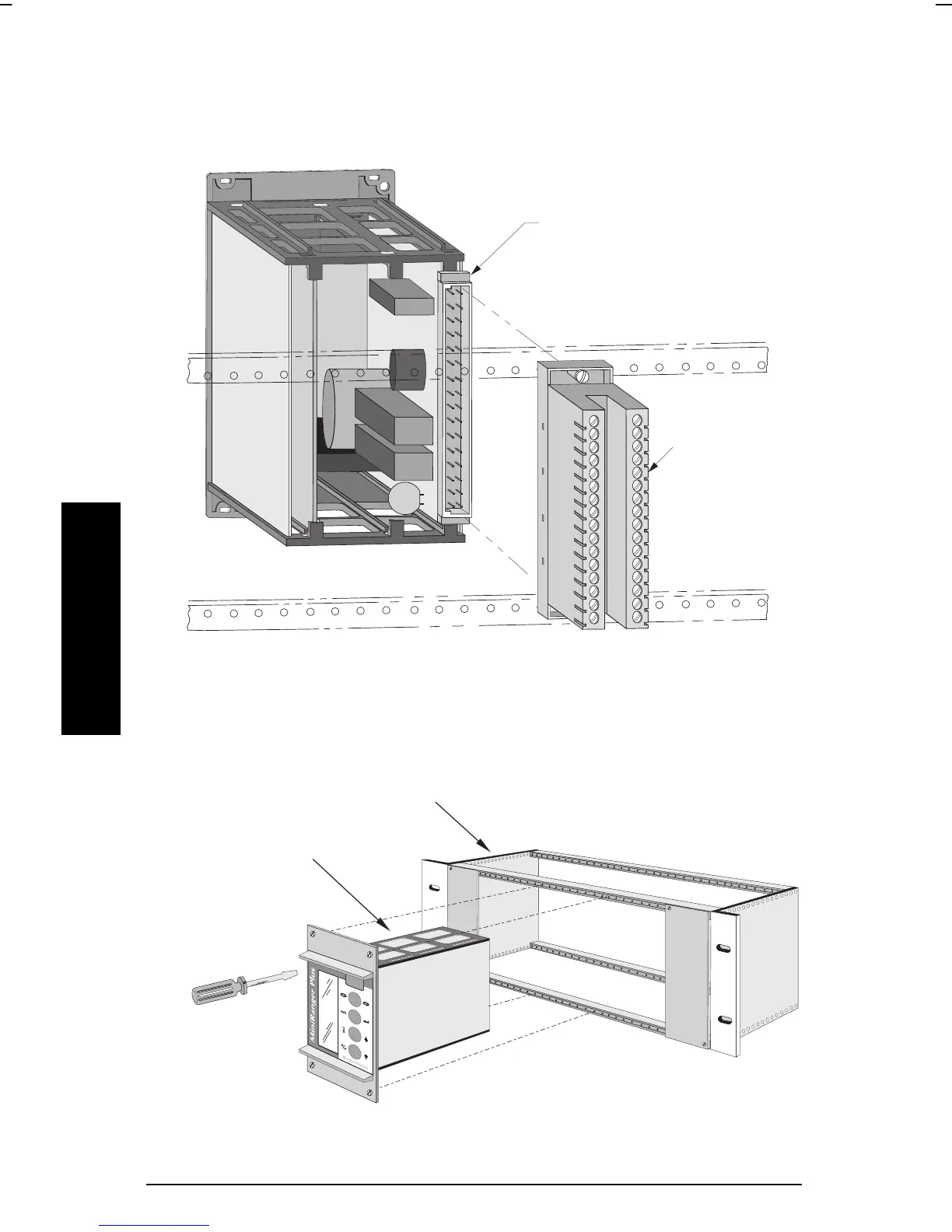

Rack Mount
1. Slide the MiniRanger Plus into the sub-rack, aligning the connector with the
rail mounted terminal block.
2. Push the MiniRanger Plus into the sub-rack until the MiniRanger Plus front
cover is snug to the front rails.
3. Tighten the 4 captivated screw to secure the MiniRanger Plus in place.
connector, 2 row form D
male 32 way, per DIN 41612
terminal block, 2
row form D
female 32 way,
per DIN 41612
84 HP (19”) sub-rack
MiniRanger Plus
DIN 3U/14 HP pug in unit
blanking panels must cover any unused slots
