Milnor 48040F7D - Page 107

A. Hot water line
B. Cold water line
C. Hot water line for the 5 chemical supply compartments
D. Cooldown water line
E. The components used with no vacuum breaker
Legend

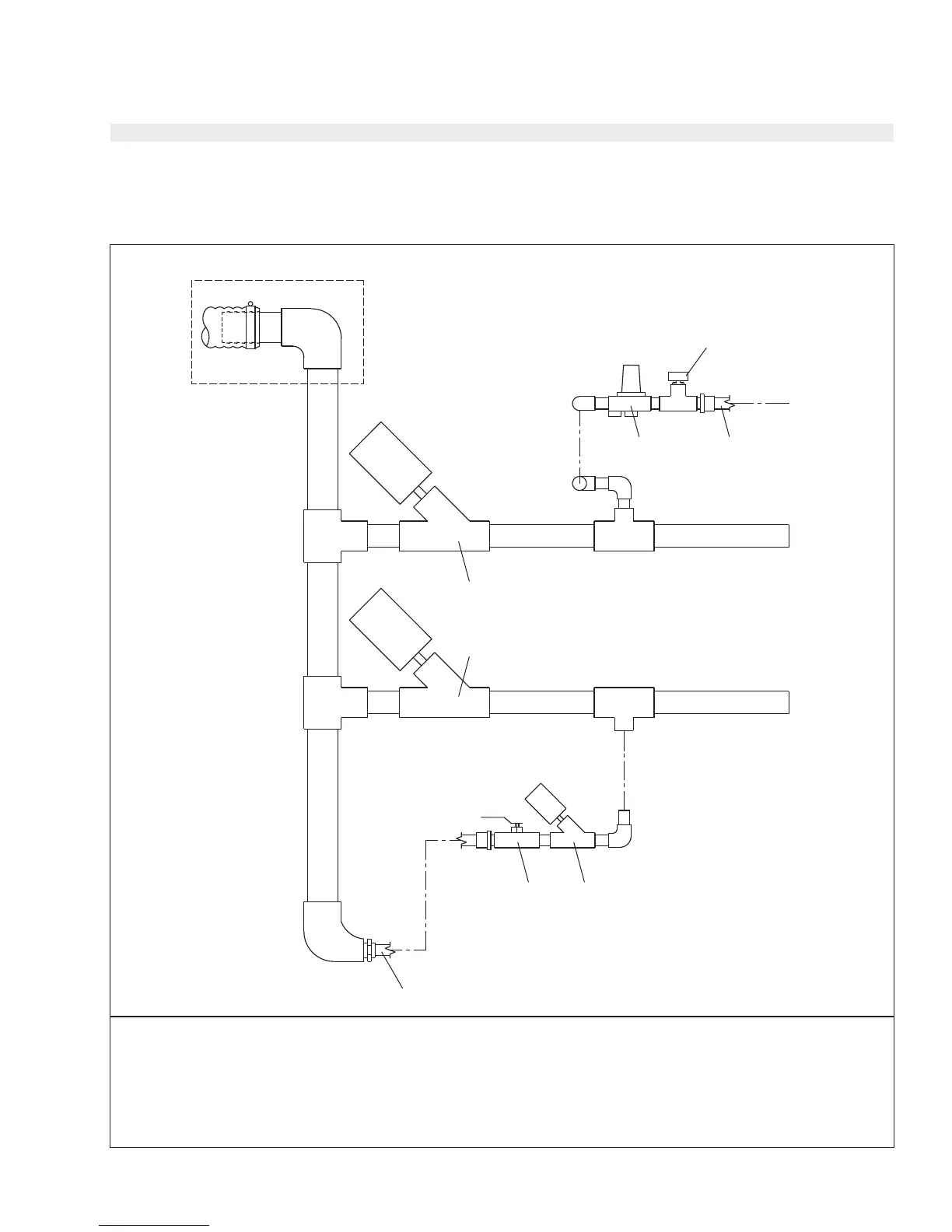

Figure 2: Water Inlet Components and Installation
Page (2 / 3)
PELLERIN MILNOR CORPORATIONPELLERIN MILNOR CORPORATION
BMP150019/2015095A
A
B
C
D
E
1
1
5
7
6
32
4
Water Inlet Components and Installation
48040F7J, F7Z (AZ)
103
