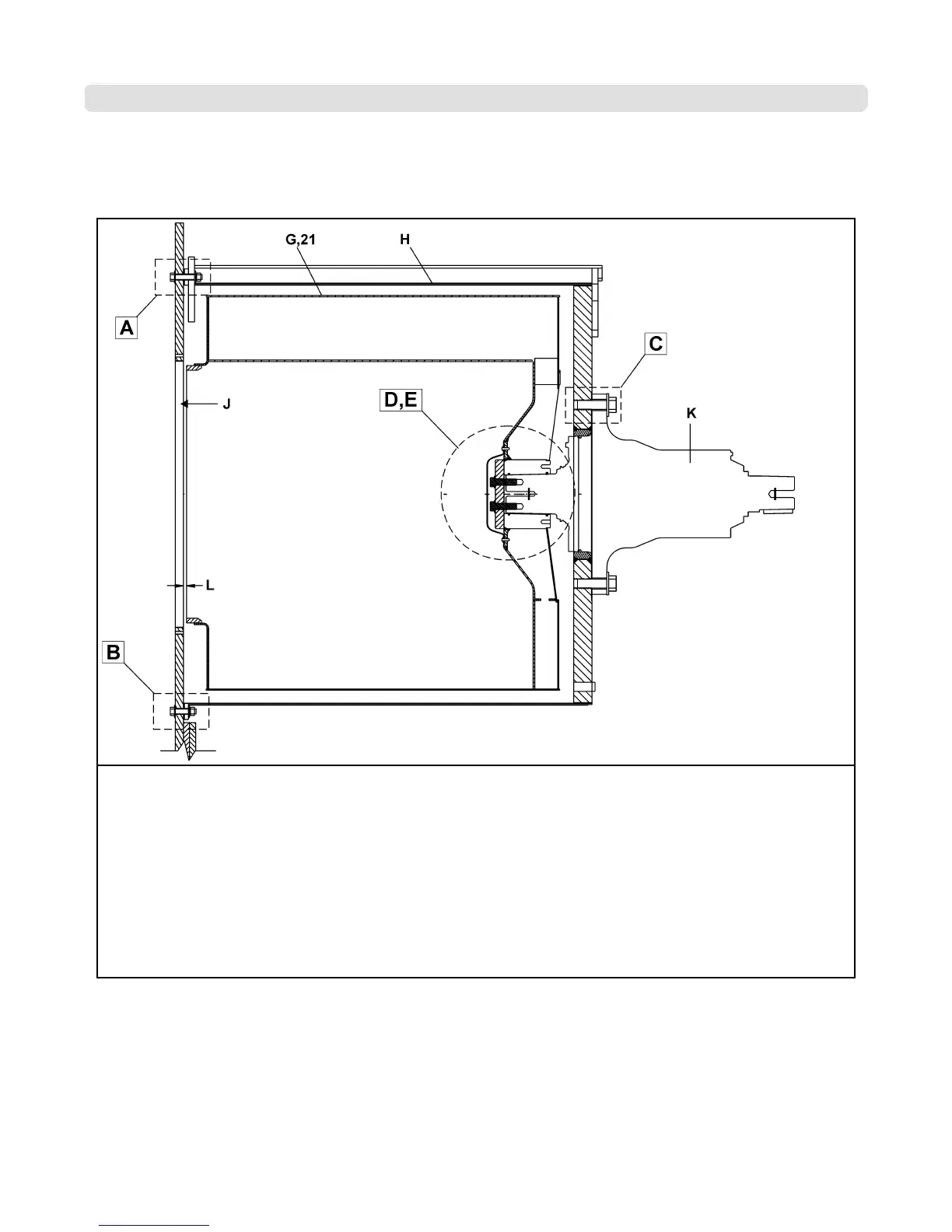

Figure 1. Cross section view
Legend
A. Detailed view — Top connection between the shell front and the shell side sheet
B. Detailed view — Bottom connection between the shell front and the shell side sheet
C. Detailed view — Connection between the shell rear and the bearing housing
D. Detailed view — Connection between the Pull-up plate and the Hub (outer bolts)
E. Detailed view — Connection between the Pull-up plate and the Shaft (inner bolts)
G. Cylinder
H. Shell
J. Shell front
K. Bearing housing
L. This dimension must be in this range: 0.3125 inches [8mm] — 0.375 [9.5mm].
Cylinder and Bearing Installation MWF100, 4840F
1 of 3
BPWMEB01 / 2017466A
