Pellerin Milnor Corporation
BPWMEB02.R01 0000160904 A.2 11/17/17 2:20 PM In Work
G. Use Locktite 242 torque to 34 FT. LBS.
H. Grease inlet for the rear bearing
J. When you install new seals, make sure that they point in the direction shown. The installation sequence: Install one seal into the rear
of the seal holder. Install the seal holder. Install the two remaining seals.
K. Fill this space with grease.

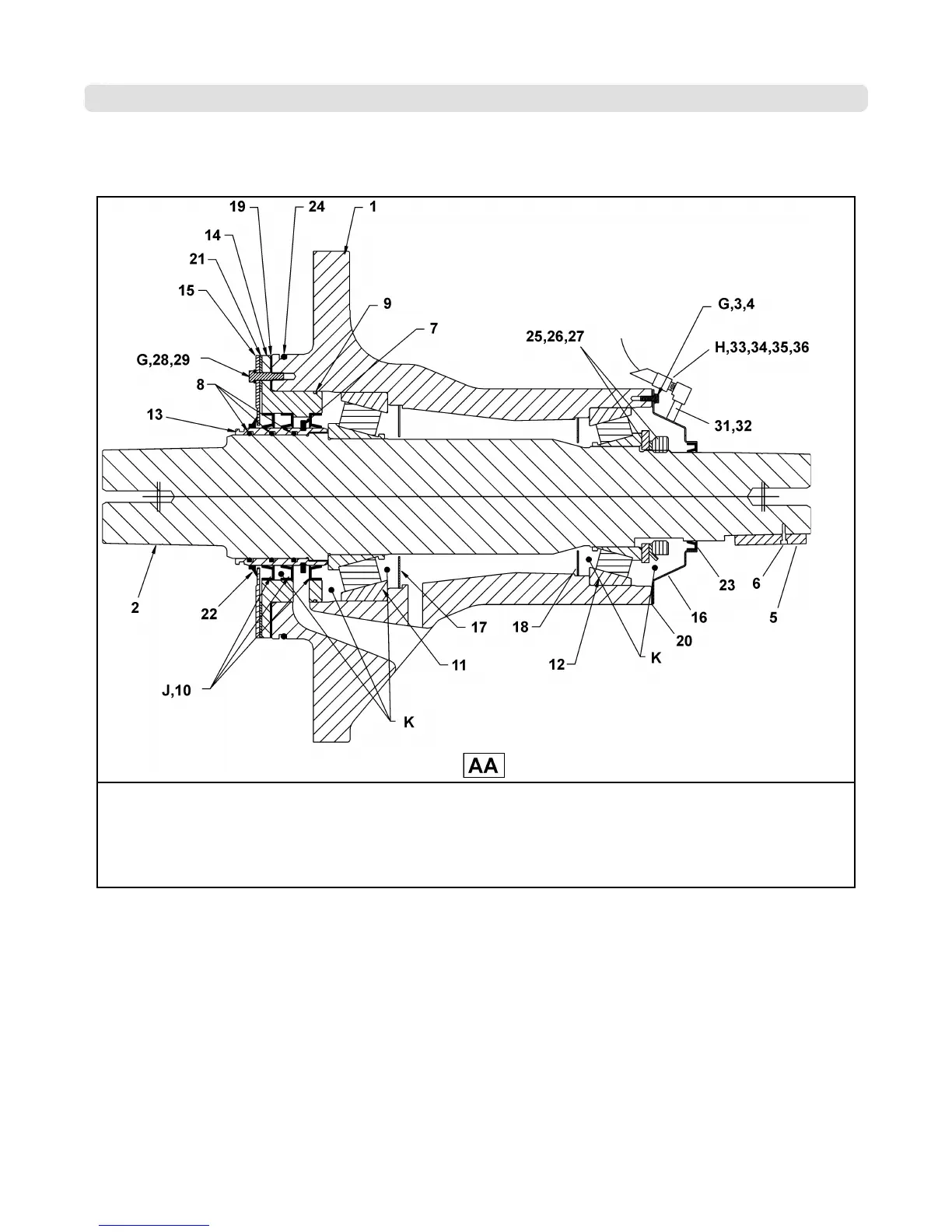

Bearing Assembly MWF100, 4840F
1 of 6
BPWMEB02 / 2017466A
BPWMEB02 0000160905 A.2 11/21/17 8:49 AM In Work
