Air Cylinder Components and Installation
PELLERIN MILNOR CORPORATION
BIIFLM11 (Published) Book specs- Dates: 20150424 / 20150424 / 20150424 Lang: ENG01 Applic: IFL IH4
Air Cylinder Components and Installation
1.
How To Get the Correct Piston Cup Shape
The figure that follows shows the correct shape and the incorrect shape of the piston cup. Tighten
the locknut only until you can turn the piston cup and the washer on the stem with some
resistance. If you tighten the locknut too much, this will cause the incorrect shape. This can stop
air cylinder movement.

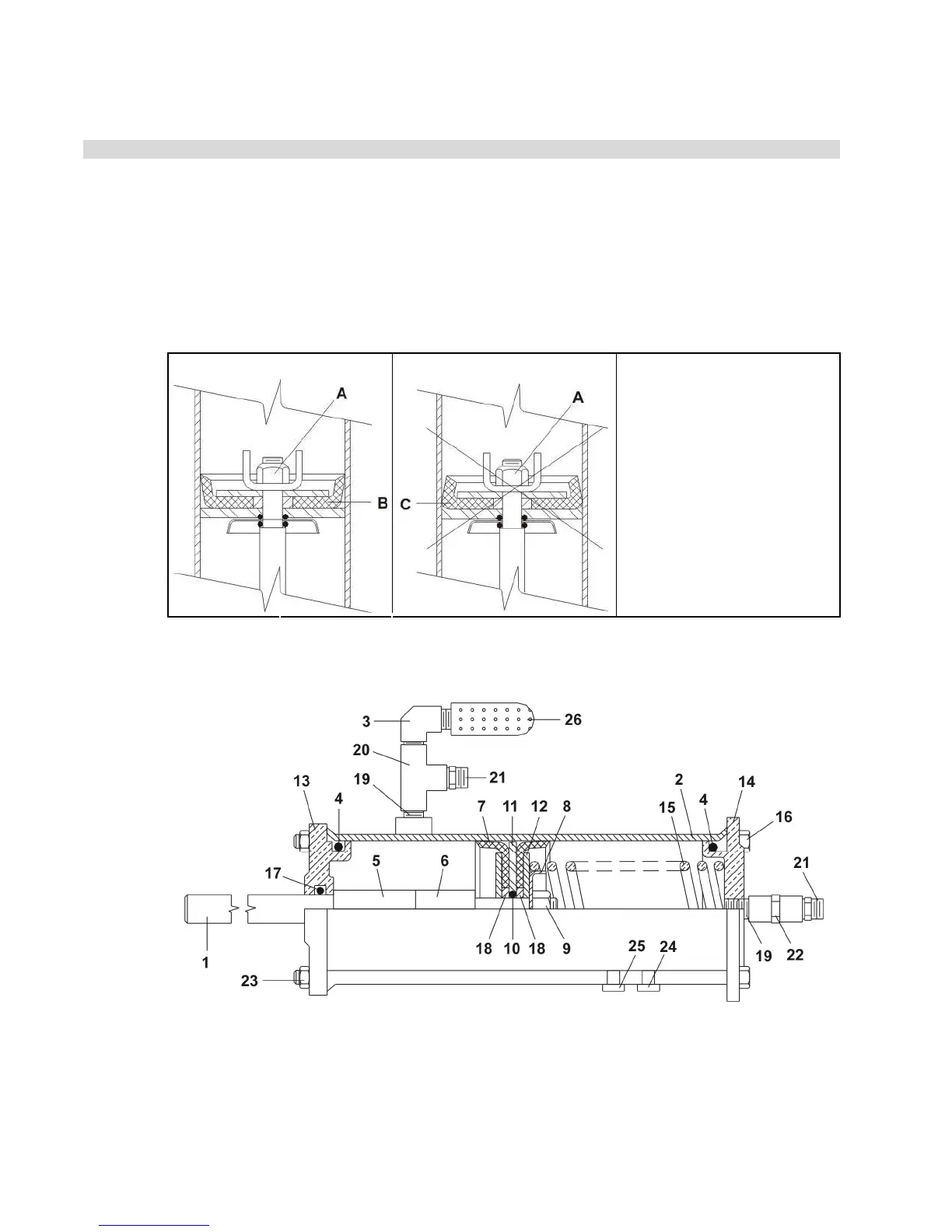

Figure 1: Compare Piston Cup Shapes
Correct shape Incorrect shape Legend
.
A. Lock nut
B. Piston cup, Correct shape
C. Piston cup, Incorrect
shape
2.
Air Cylinder Components
Figure 2: Air cylinder
81
