Item
Part Number
Description
Comments
Used In
Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the
"Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the
parts list to the illustration.
Parts List—Steam Inlet Components and Installation
-------------------------------------------------------------------------------------------COMPONENTS--------------------------------------------------------------------------
all 1 98CX820631 STEAM STRAINER 1+1/4", CSM
all 2 96D0011E 1.25"NPTBRZ N/C STEAMVALANGBD
all 3 98CF518C52 STEAM HOSE BRAIDED, 4840F CSM
all 4 98CF11369D GASKET STEAM FLANGE, 4840F CSM
4
3

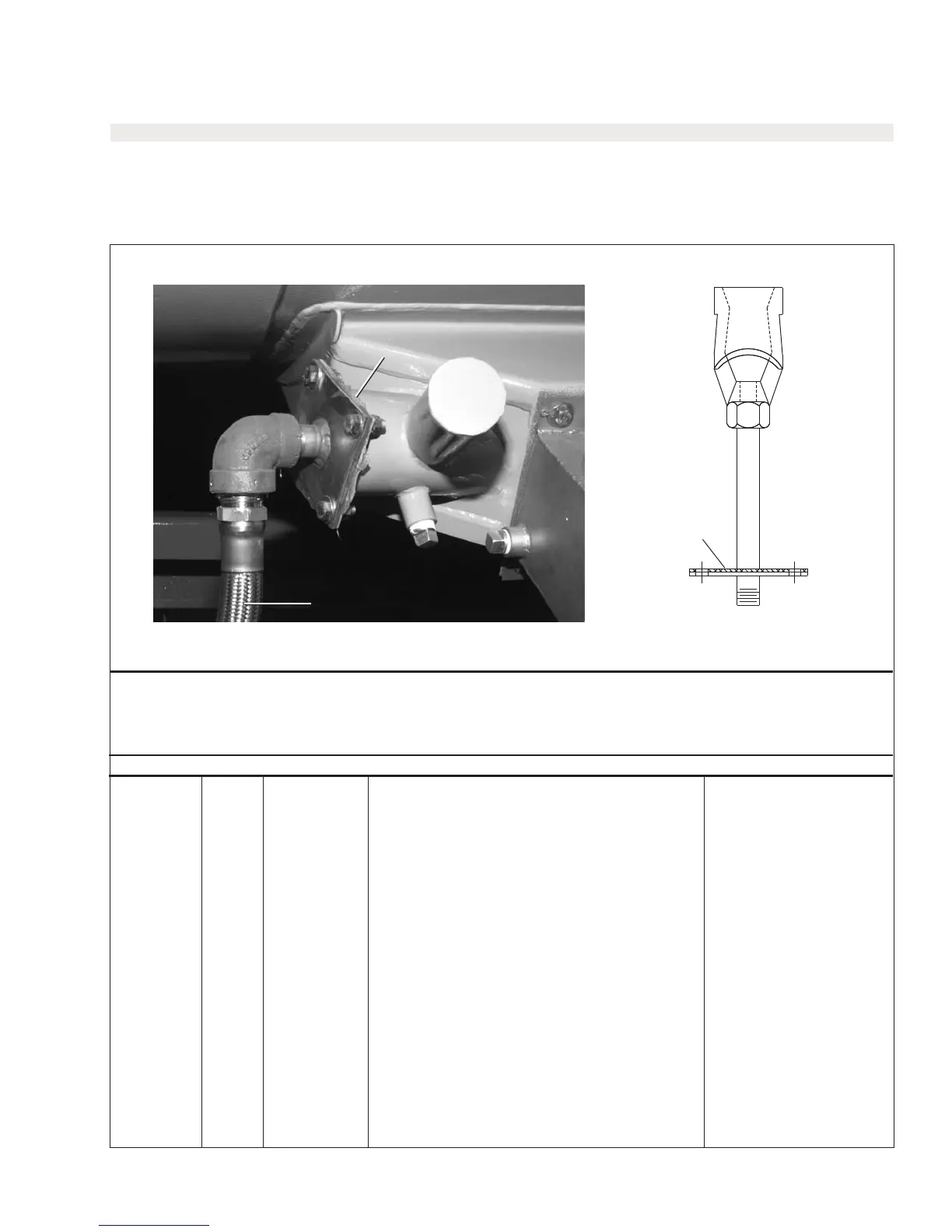

Figure 2: Sparger (steam nozzle)
Page (2 / 2)
PELLERIN MILNOR CORPORATIONPELLERIN MILNOR CORPORATION
4
BMP150021/2015095A
Steam Inlet Components and Installation
48040F7B, F7D, F7J, F7Z (AZ)
