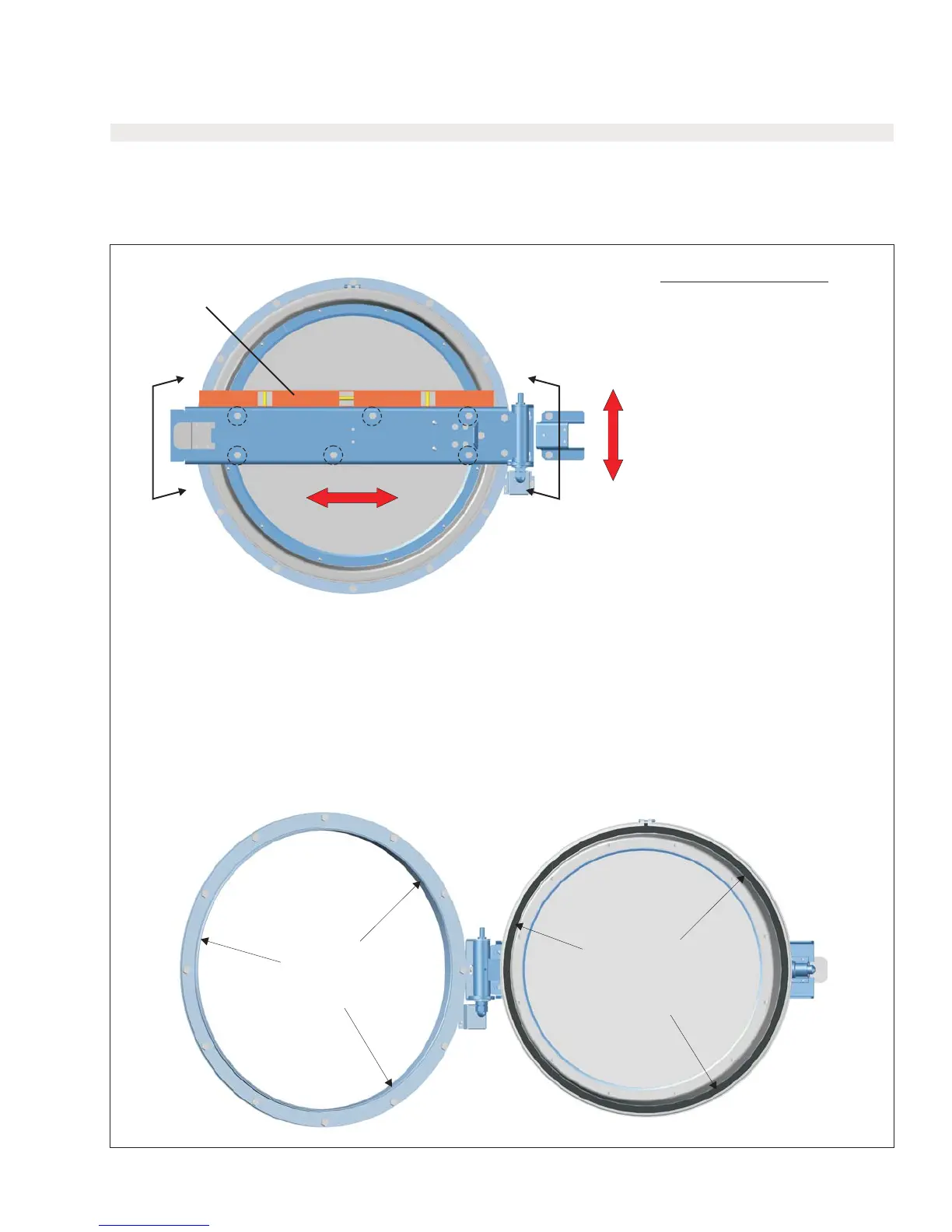

Figure 2: Adjust Door Position
Page (2 / 5)
PELLERIN MILNOR CORPORATIONPELLERIN MILNOR CORPORATION
impression should be centered on the door gasket and a continuous circle.
4. Adjust the position of the whole door. For left/right adjustments, slightly loosen the bolts
shown circled above and adjust door with a rubber or leather mallet. For vertical adjustment,
slightly loosen hinge bolts and adjust door.
5. Recheck door position.
6. When the door is centered, adjust the door striker to match the door. It should have the same
gap top and bottom.
7. Tighten door bolts.
Adjust Door Position
Install door with all shims
and hardware. Do not
tighten bolts.
1. Make sure the door
channel is level.
2. Test that the door is
centered to the door
opening.
3. Check door position.
Apply chalk around the
knife edge ring. Close the
door and activate the door
seal. Open the door and
check the impression on the
door gasket. The chalk
BMP150017/2015095A
Manual Door
48040F7B,F7D, F7J, F7Z (AZ)
F
F
G
G
Level
Make a
chalk ring
around
knife edge
Chalk ring
should be
centered and
continuous
on gasket
93
