MIMAKI CF-1215 User Manual

— 4.9 —

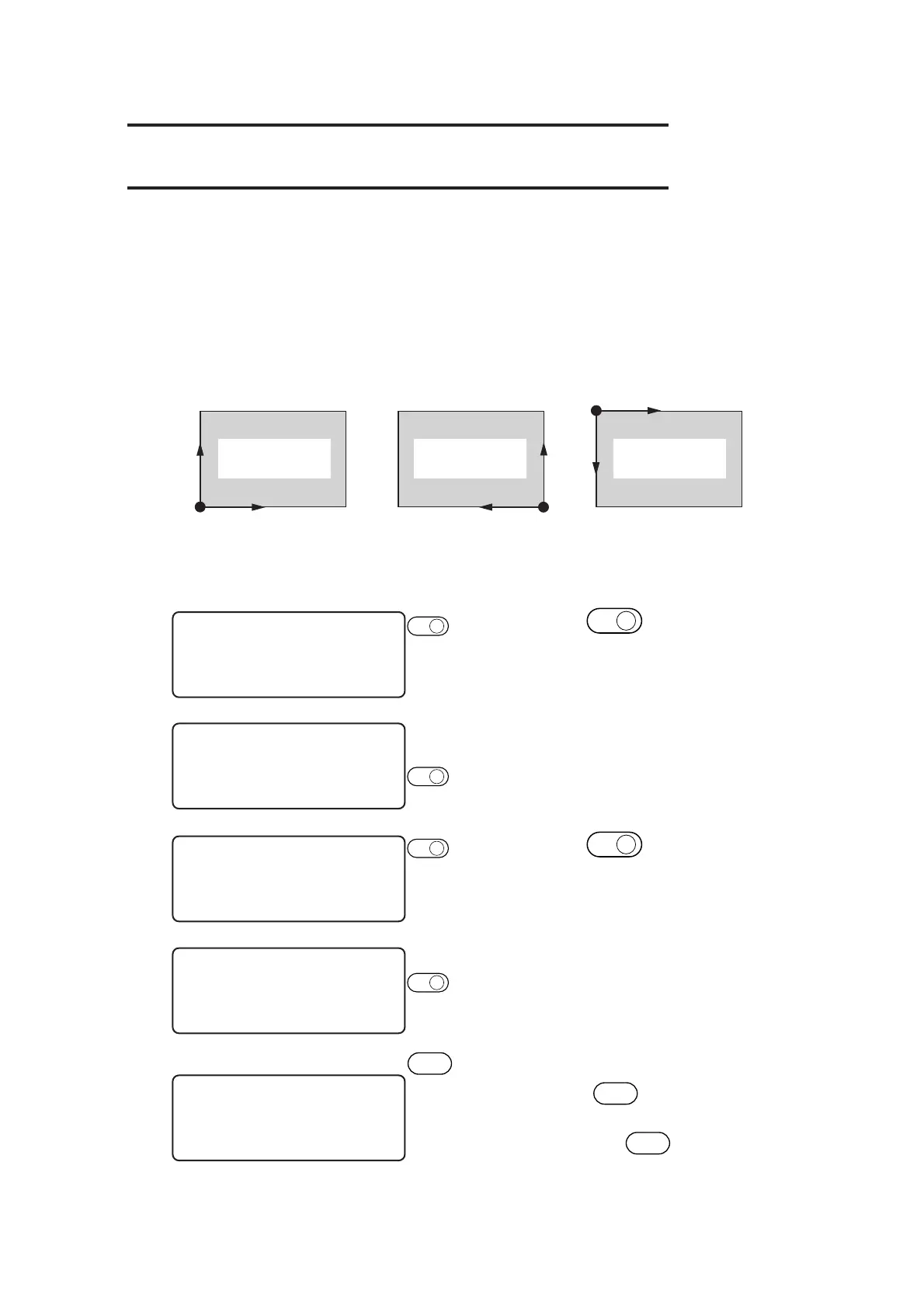

SETTING THE DIRECTION OF ROTATION FOR
THE COORDINATE AXIS [MODE SET] > [ROTATE]
In the case where the command origin is established at the lower left of the cutting area, it is neces-
sary to specify the direction of rotation for the coordinate axis in accordance with your CAD.
Set values
+90°: Lower right of the maximum effective cutting area
–90°: Upper left of the maximum effective cutting area
1 Press the
PAGE
+
key several times
until the LCD indicates page 3 of the
LOCAL MENU.
2 Select the [MODE SET].
3 Press the
PAGE
+
key several times
until the LCD indicates page 3 of the
[MODE SET].
4 Select one of the following as a setting
for the [ROTATE].
+90°, –90°
5 Enter the input values.
Press the
END
key to enter the input
values. If you do not enter the input
data, press the
C E
key.
X-axis
Y-axis
Y-axis
X-axis
X-axis
Y-axis
In the case where the
command origin is set
to the lower left corner
Maximum effective
cutting area
Maximum effective
cutting area
Maximum effective
cutting area
In the case where the
direction of rotation is
set to 90°
In the case where the
direction of rotation is
set to -90°
[ LOCAL ] 1 / 4
TOOL SELECT ———>
CONDITION ———>
TEST CUT ———>
[ LOCAL ] 3 / 4
INTERFACE ———>
MODE SET ———>
SELF TEST ———>
< MODE SET > 1 / 5
Z STROKE ∗7 mm >
MULTI–PASS ———>
VACUUM ∗AutoOFF>
< MODE SET > 3 / 5
ROTATE –90° >
COMMAND ———>
CMD SW ∗INVALID >
< MODE SET > 3 / 5
ROTATE –90° >
COMMAND ———>
CMD SW ∗INVALID >
PAGE
+
PAGE
+
F1
+
F2
+
END
