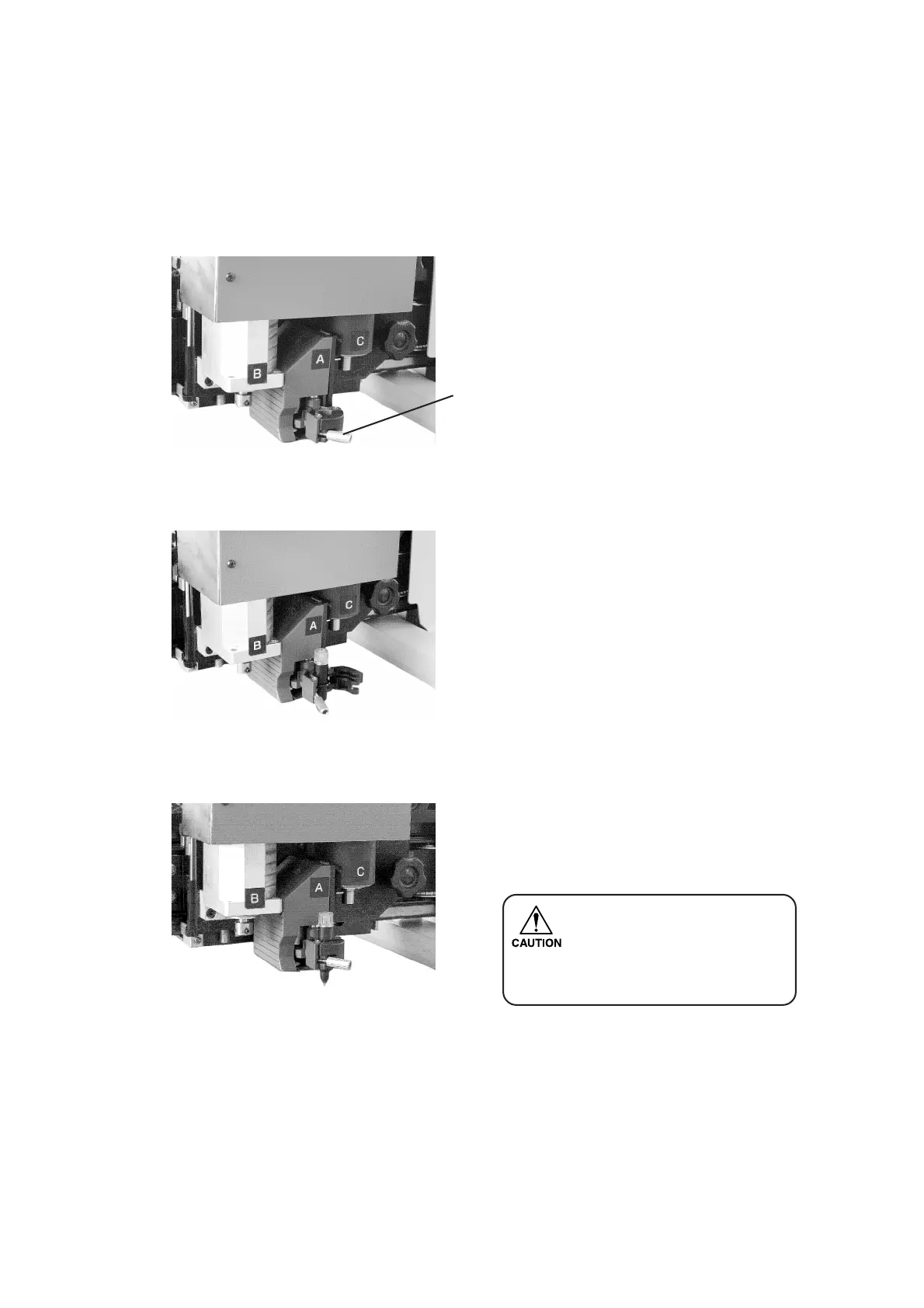

Attaching the pen and the swievel blade
If the head is in the lower position and a tool cannot be installed, lift the head. (“Adjusting the height
of the tool” See page 2.18.)
1 Loosen the screw in head unit A.
Turn the screw A counterclockwise to
loosen it.
2 Insert the eccentric cutter or plotter
pen in unit unit A.
Fit the collar of the pen or the swievel
cutter in the groove in the holder.
3 Tighten the screw in head unit A.
Close the holders and turn the screw
clockwise.
• Securely fix the cutter holder.
If the screw is securely tight-
ened, normal product quality
cannot be obtained.
Screw
