— 4.17 —

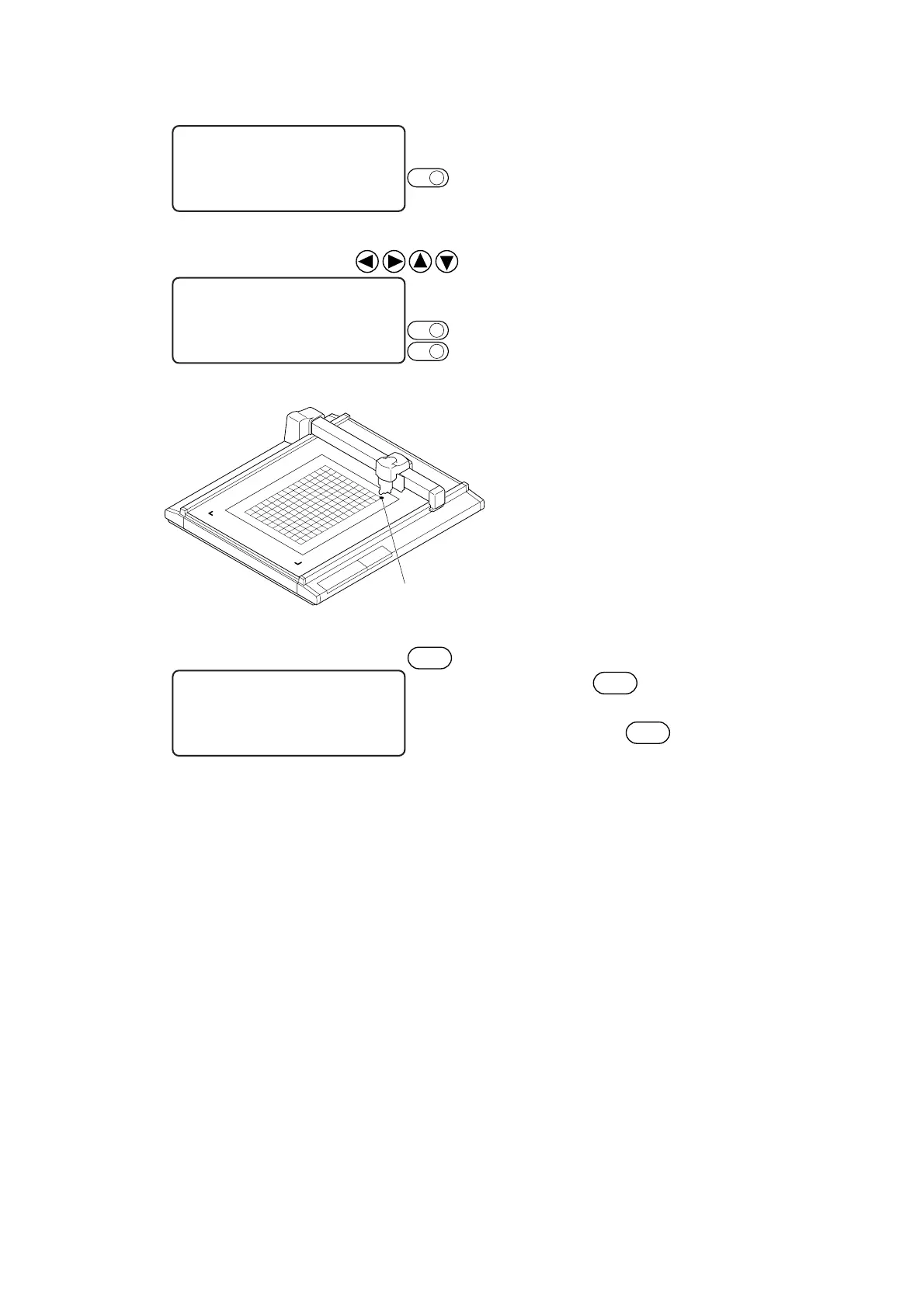

4 Select the [AXIS ALIGN].
5 Align the tip of the tool to point A.
Operate the jog keys to align the tip of
the tool to the rightmost one of the ruled
lines on the work.
Increase/decrease the speed and lift/
lower the tip of the tool when necessary
until point A is reached.
6 Enter point A.
Press the
END
key to enter the input
values. If you do not enter the input
data, press the
C E
key.
END
[ LOCAL ] 4 / 4
CUT AREA ———>
AXIS ALIGN ———>
TOOL SELECT ———>
< AXIS ALIGN > [ mm ]
00.00 00.00
SPEED FAST >
CUTTER UP >
< AXIS ALIGN > [ mm ]
912.60 61.0
SPEED FAST >
CUTTER UP >
Point A
F3
+
F2
+
F2
+
To Next Page
