Tangential Crease Swievel
cutter roller blade
Up angle The minimum angle required by the raised tool to O O O
change the direction of cutting (marking). This
reduces the degree by which the tool pries the work.
Ring If minute line segments continue, a rounding O O O
distance distance (R) is provided between each two of the line
segments to add another one.
Press The pressure applied to the tool at the time of O O
correction descending is to be corrected when cutting (marking)
heavy-weight works. The works can be cut without
fail when the tool is lowered by adding a pressure
correction value to the previously-set pressure value.
Press (Y) The pressure applied to the roller/cutter can be O
corrected in terms of Y-axis, to perform marking with
a Y-axis pressure applied separately from an X-axis
pressure. To mark a piece of corrugated fiberboard,
it can be placed with its flutes oriented in the Y-axis
for marking with a lighter pressure applied as
compared with the X-axis.
R5 speed The speed that is employed when cutting an arc that is O O
5 mm or less in radius. If [OFF] is selected, the arc is
cut at the previously specified speed.
R10 speed The speed that is employed when cutting an arc that is O O
less than 5 mm or more and 10 mm or less in radius.
If [OFF] is selected, the arc is cut at the previously
specified speed.
R15 speeds The speed that is employed when cutting an arc that is O O
10 mm or more and less that 15 mm. If [OFF] is
selected, the arc is cut at the previously specified
speed.
R20 speed The speed that is employed when cutting an arc that is O
15 mm or more and less that 20 mm. If [OFF] is
selected, the arc is cut at the previously specified
speed.
R30 speed The speed that is employed when cutting an arc that is O
25 mm or more and less that 30 mm. If [OFF] is
selected, the arc is cut at the previously specified
speed.
R40 speed The speed that is employed when cutting an arc that is O
30 mm or more and less that 40 mm. If [OFF] is
selected, the arc is cut at the previously specified
speed.

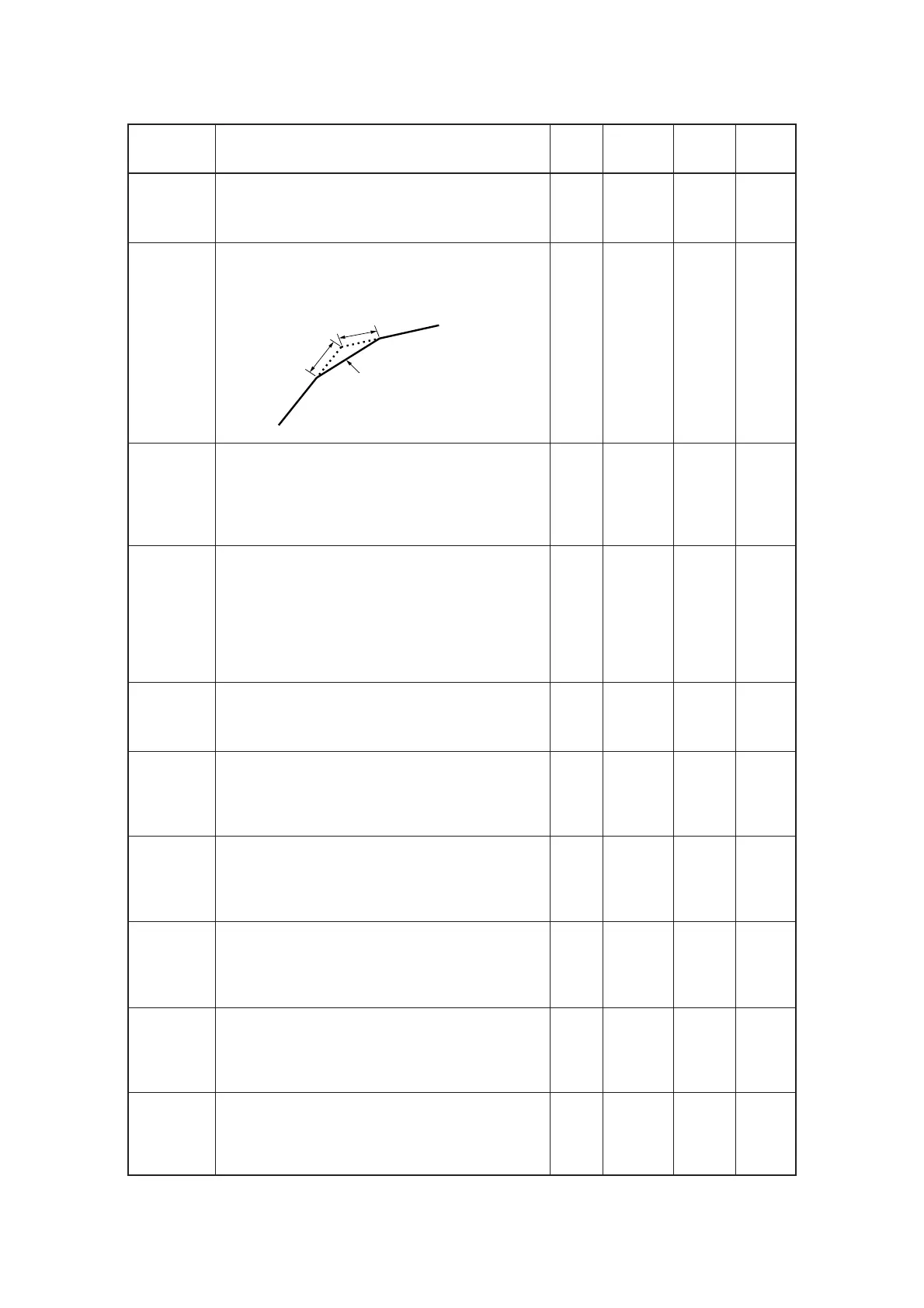

Setting item Description Pen
Line segment 2
R
R
Added line segment
Line segment 1
