Maintenance Manual > Adjustment Items > Adjustment Function > LANDING
Model CJV30/TPC Issued 2008.08.04 Revised 2009.06.30 F/W ver. 1.20 Remark
1.2
Rev.
4.2.10 LANDING
 Function
 Make this adjustment after completing the pen pressure adjustment.
(Use the following four different adjustment patterns.)
[REMOTE]: Plots 11 square patterns at the positions of different pen landing values in steps of 20, starting at
the first pen landing point.
Plots the square patterns in two rows (near the right end and the center of the media) using the
same set of landing values.
[FUNCTION]: Plots a radial pattern using the pen landing value selected based on the square patterns, four radial
patterns using the pen landing values one to four larger than the selected value, and five radial
patterns using the values one to five smaller. (4 steps)
[]: Plots four square patterns and 32 4-mm straight lines.
[]: Plots a broken line between pinch rollers.
 The adjusted values are registered as system parameters (No.7 and 9).
 The content of adjustment if as follows:
• #LANDING UP POSITION
• Pen landing
• Cutter landing

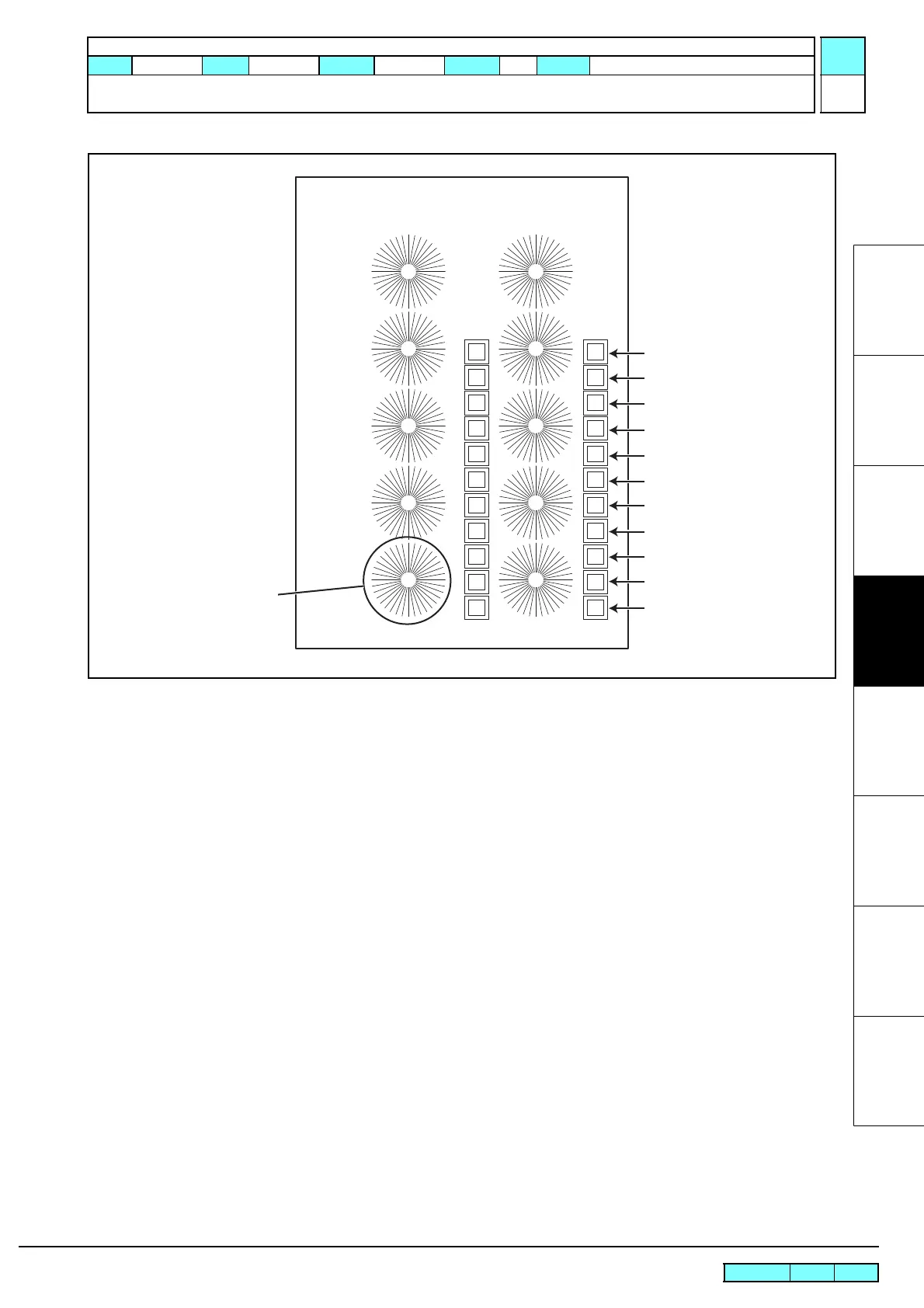

Plotted pattern using the pen
landing value corresponding
to the selected square pattern
Pen landing value: +200
Pen landing value: +180
Pen landing value: +160
Pen landing value: +140
Pen landing value: +120
Pen landing value: +100
Pen landing value: +80
Pen landing value: +60
Pen landing value: +40
Pen landing value: +20
Pen landing value: 0
(Current adjustment value)
