Maintenance Manual > Adjustment Items > Adjustment Function > GR/PR POSITION
Model CJV30/TPC Issued 2008.08.04 Revised 2010.11.05 F/W ver. 1.00 Remark
1.1
Rev.
4.2.13 GR/PR POSITION
 Outline
Makes the printer recognize the positional relation between the grid roller and the pinch roller.
Readjusts the position of grind roller and the pinch roller when the parameter has been initialized or when an error
occurs even if the position of the pinch roller is within an acceptable range upon media detection, and compensates
mechanical errors.
 Procedure

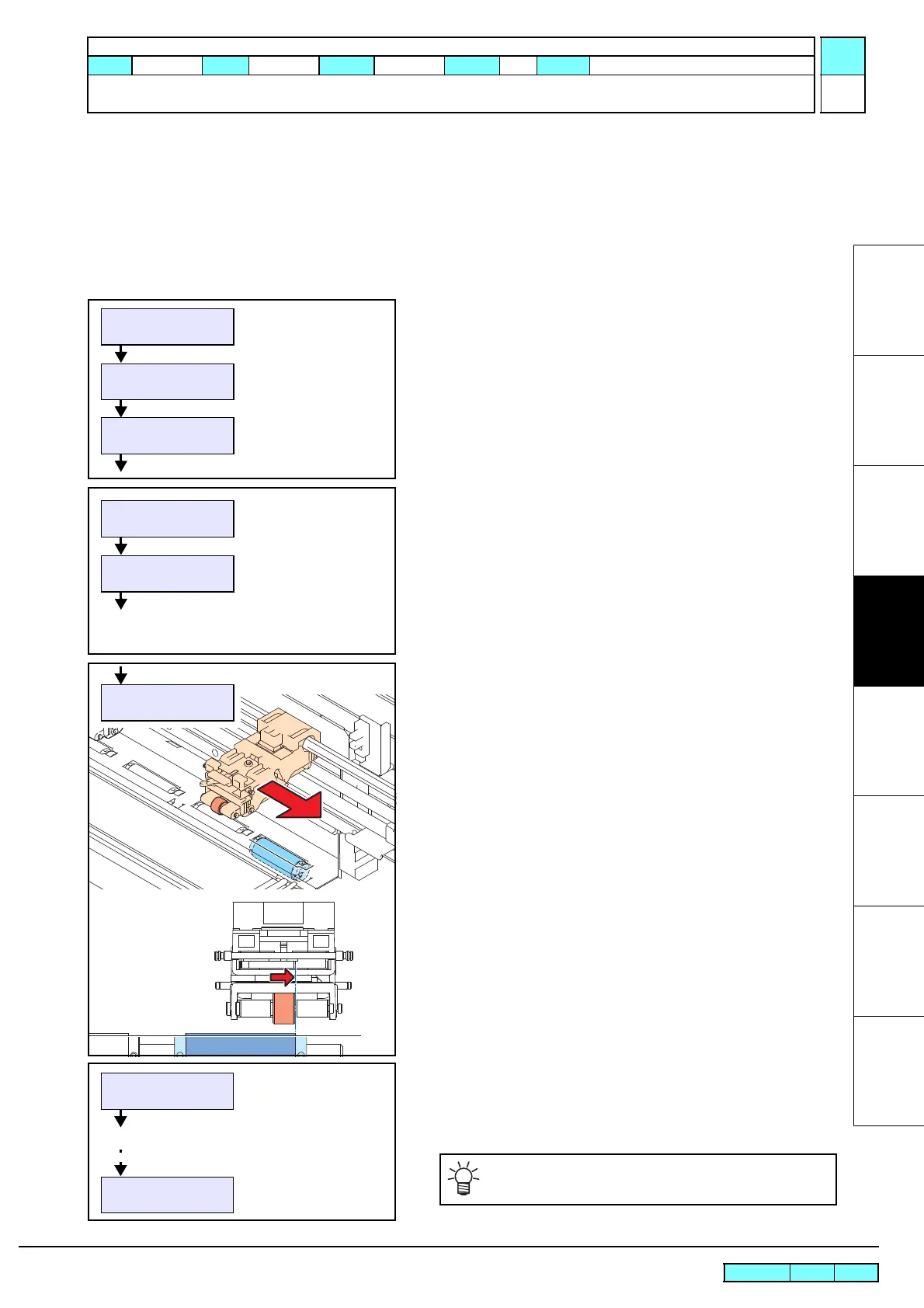

1. Select [GR/PR POSITION] from the operation menu.
2. Check the location of the cutter, and if it is not in the parking
position, move it to that position.
(If it has been parked in that position already, proceed to the
next screen.)
[ENTER]: Cutter moves to the parking position.
3. Hold up the clamp lever.
(If it has been held up already, proceed to the next screen.)
4. Align the both right ends of the rightmost pinch roller and the
rightmost grid roller, and hold the lever down.
(Margin of error: within ± 0.5 mm)
[]/[]:
[ENTER]: Finalizes (To the next compensation screen)
5. Carry out automatic compensation by clicking [ENTER].
After the automatic compensation is completed, return to “main
menu” by clicking [END].
<LOCAL.1> [#01]
FUNCTION
#ADJUST <ent>
#ADJUST / CUT
GR/PR POSITION <ent>
#GR/PR POSITION
Head Cut Retruct:ent
LEVER UP
SET:PR POSITION
LEVER DOWN
#GR/PR POSITION
ACTION :ent
 failure 
* When the automatic correction failed
In case automatic compensation fails, a screen for Step
3 is displayed.
