MIMAKI JV5 Series Maintenance Manual

© 2009 MIMAKI ENGINEERING CO.,LTD.
3.1.3 P.1
1
2
3
4
5
6
7
8
R.1.1
Maintenance Manual > Workflow > Ink Related Parts > Replacement of the Cartridge Assy
Model CJV30/TPC Issued 2008.08.04 Revised 2008.09.17 F/W ver. 1.20 Remark
1.1
Rev.

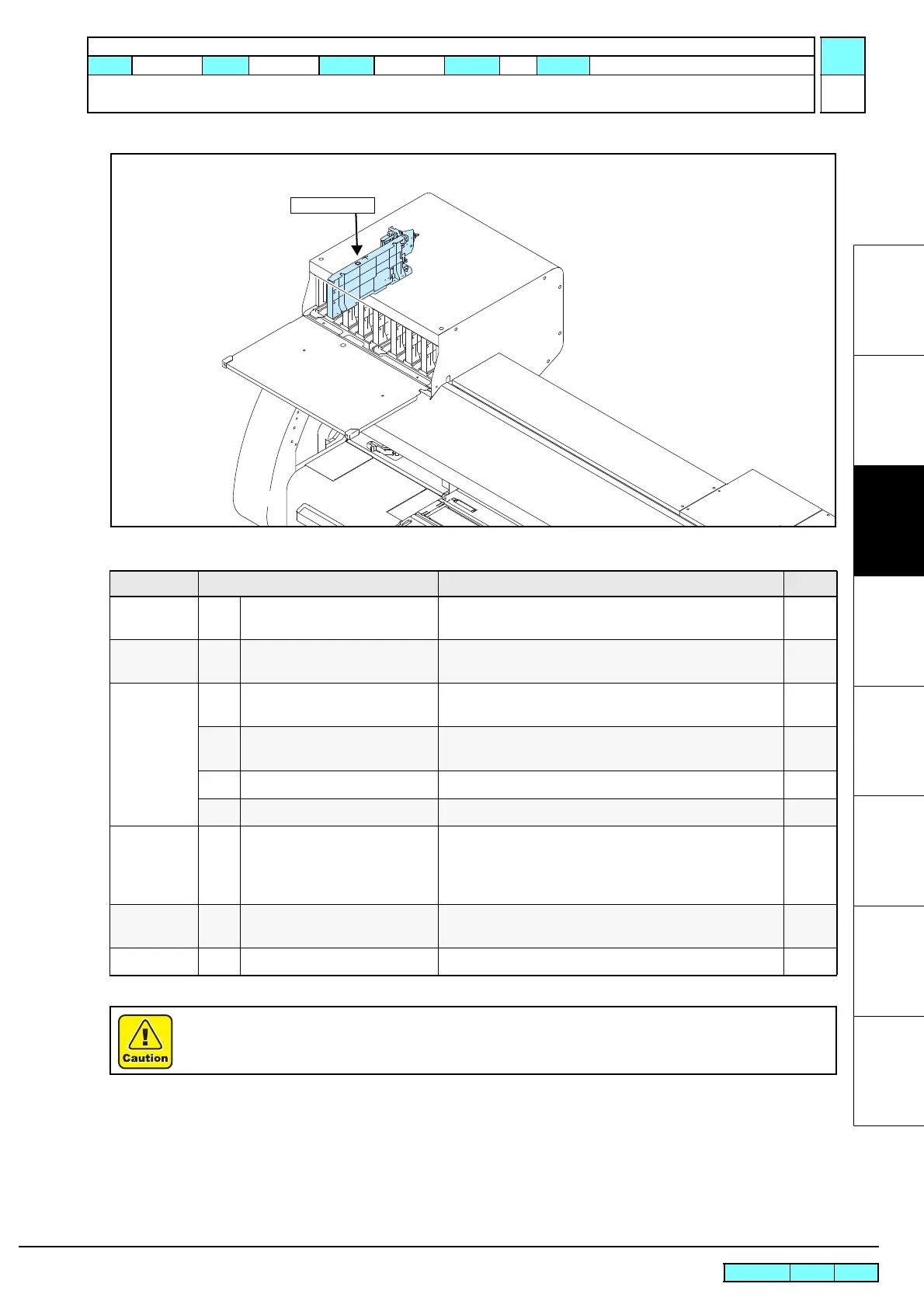

3.1.3 Replacement of the Cartridge Assy
 List of replacement procedures
Item Work operation Description Ref.
Covers
1.

Removal of covers, etc. Remove the ICU cover, cartridge holder B and cartridge base
U.
6.1.1
Ink
2. 
Ink discharging Discharge ink by carrying out [HEAD WASH] of the main-
tenance function.
4.2.7
Cartridge
Assy
3.

Removal of the joint. Remove the joint from corresponding cartridge.
Take care not to spill ink.
4. 
Removal of the cartridge. Disconnect the cables of corresponding cartridges from the
connector to remove the cartridges.
5. 
Mounting of the cartridge. Mount the cartridge.
6. 
Mounting of the joint. Mount the joint which has been removed.
Check
7.

Check on the sensors Check whether the exist/non-exist sensor, the near end sensor
and the contact PCB assy of corresponding cartridges function
normally, by conducting ink cartridge test.
It is preferable to conduct a check by actually using cartridges.
5.1.14
Ink
8. 
Ink filling Fill up the ink channels with ink.
Check for any nozzle outs by conducting a test plotting.
Covers
9.

Mounting of the covers. Mount the covers that have been removed. 6.1.1
Be sure to wear protective glasses and working gloves during the operation.
Ink may get into your eyes depending on the working condition, or hand skin may get rough if you touch
the ink.
