Maintenance Manual > Workflow > Driving Parts > Replacement of the Y Drive Belt
Model CJV30/TPC Issued 2008.08.04 Revised 2008.09.17 F/W ver. 1.20 Remark
1.1
Rev.

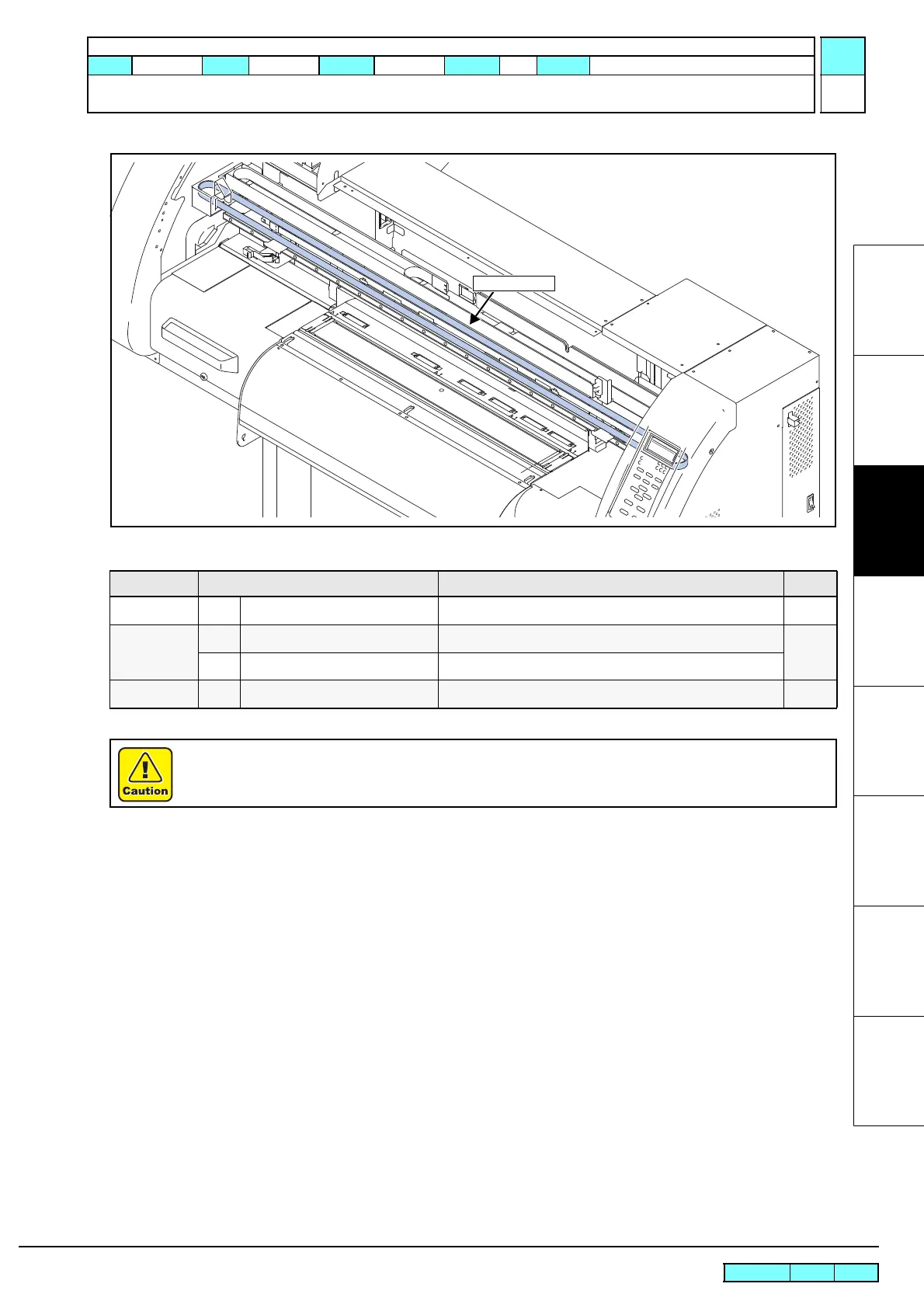

3.3.3 Replacement of the Y Drive Belt
 List of replacement procedures
Item Work operation Description Ref.
Covers
1.

Removal of covers, etc. Remove the CY cover F, KB cover and right cover. 6.1.1
Y Drive Belt
2. 
Removal of the Y drive belt. Remove the Y drive belt. 6.4.4
3.

Mounting of the Y drive belt. Mount the Y drive belt.
Covers
4. 
Mounting of the covers Mount the covers that have been removed. 6.1.1
Be sure to wear protective glasses and working gloves during the operation.
Ink may get into your eyes depending on the working condition, or hand skin may get rough if you touch
the ink.
Y Drive Belt
