© 2009 MIMAKI ENGINEERING CO.,LTD.
3.3.4 P.1
1
2
3
4
5
6
7
8
R.1.0
Maintenance Manual > Workflow > Driving Parts > Replacement of the Linear Encoder Scale
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.

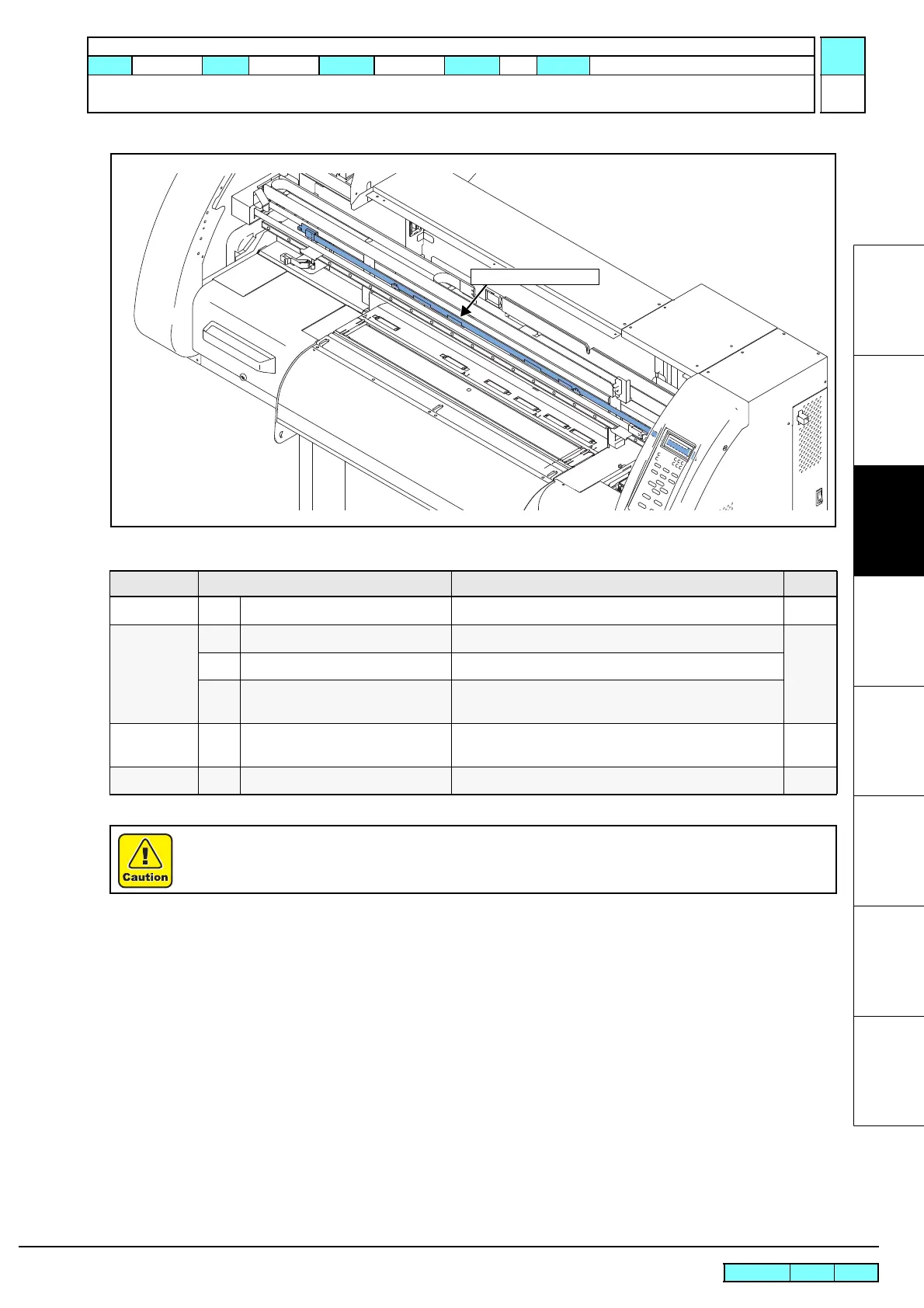

3.3.4 Replacement of the Linear Encoder Scale
List of replacement procedures
Item Work operation Description Ref.
Covers
1.
Removal of covers, etc. Remove the CY cover F and head cover. 6.1.1
Linear
Encoder Scale
2.
Removal of the linear encoder scale. Remove the linear encoder scale. 6.4.5
3.
Removal of the protective film Peel off the protective film from the encoder.
4.
Mounting of the
linear encoder scale. Mount the linear encoder scale.
Pay attention to the location of the encoder PCB assy.
Check
5.
Encoder check Carry out the encoder check to confirm it functions normally. 4.3.5
5.1.26
Covers
6.
Mounting of the covers Mount the covers that have been removed. 6.1.1
Be sure to wear protective glasses and working gloves during the operation.
Ink may get into your eyes depending on the working condition, or hand skin may get rough if you touch
the ink.
Linear Encoder Scale
