Maintenance Manual > Workflow > Driving Parts > Replacement the GR Roller Assy
Model CJV30/TPC Issued 2008.08.04 Revised 2008.09.17 F/W ver. 1.20 Remark
1.1
Rev.

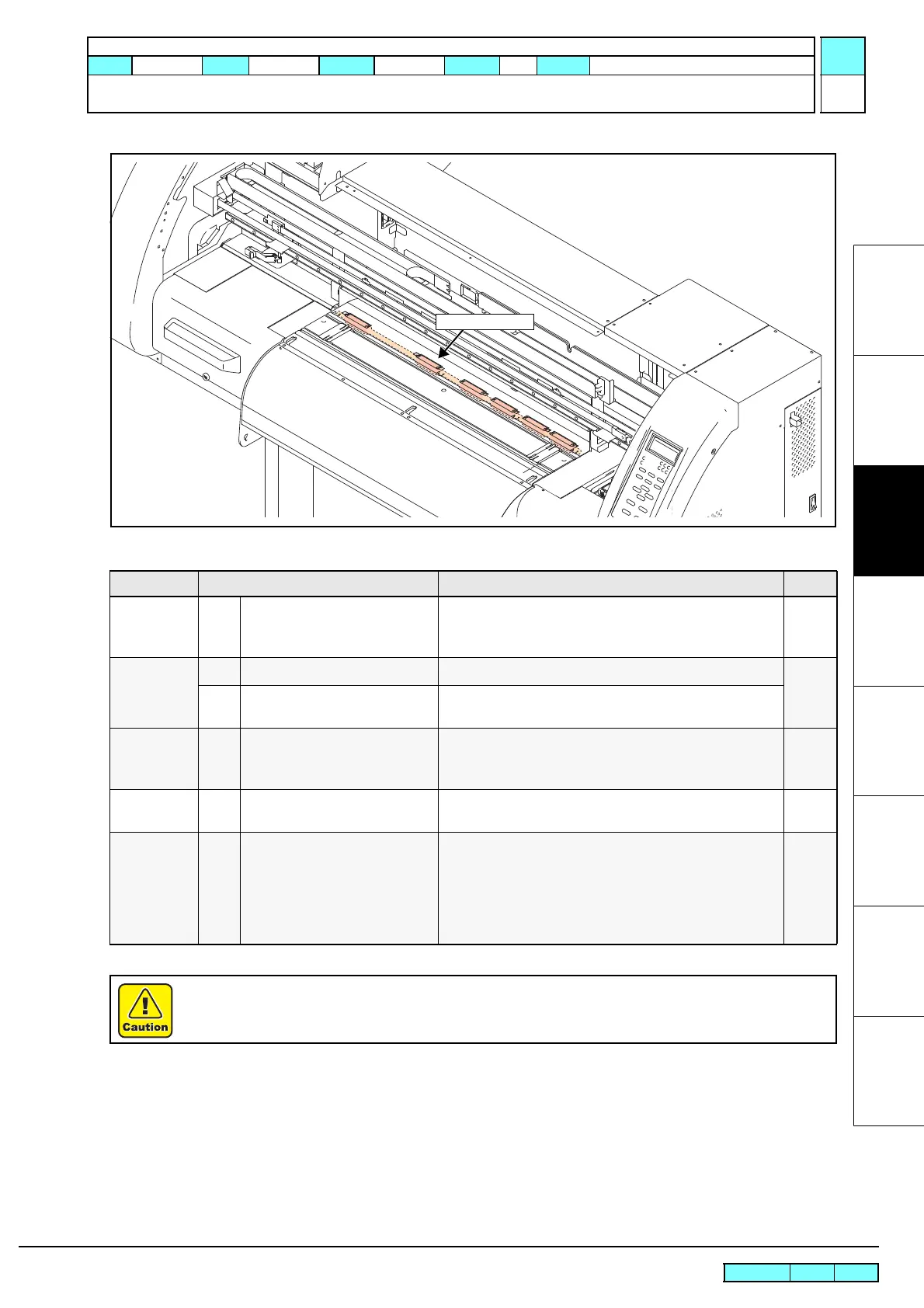

3.3.5 Replacement the GR Roller Assy
 List of replacement procedures
Item Work operation Description Ref.
Covers
1.

Removal of covers, etc. Remove the CY cover F, cartridge cover, maintenance cover
L, left cover, left station cover, heater connector cover, MS
cover 2 and MS cover 1.
6.1.1
GR Roller
Assy
2. 
Removal of the GR roller assy. Remove the GR roller assy. 6.4.7
3.

Mounting of the GR roller assy. Move the BR holder 30 until it reaches the near side and
stops, and then mount the GR roller assy.
Check
4. 
Check on the surface of the platen When the clearance between the head and the platen is not
stabilized and printed image is affected by that, adjust the
flatness of the platen.
Adjustment
5.

GR/PR adjustment Make the machine recognize the positional relationship
between the grid rollers and pinch rollers.
4.2.13
Covers
6. 
Mounting of the covers Mount the covers that have been removed.
Install all the covers temporarily first and then secure them
in order, starting with the one nearest one end.
Install the covers while pushing the pre-heater down.
(To ensure the space for the pick up chamber and to prevent
the covers from rising above the grid rollers)
6.1.1
Be sure to wear protective glasses and working gloves during the operation.
Ink may get into your eyes depending on the working condition, or hand skin may get rough if you
touch the ink.
GR Roller Assy
