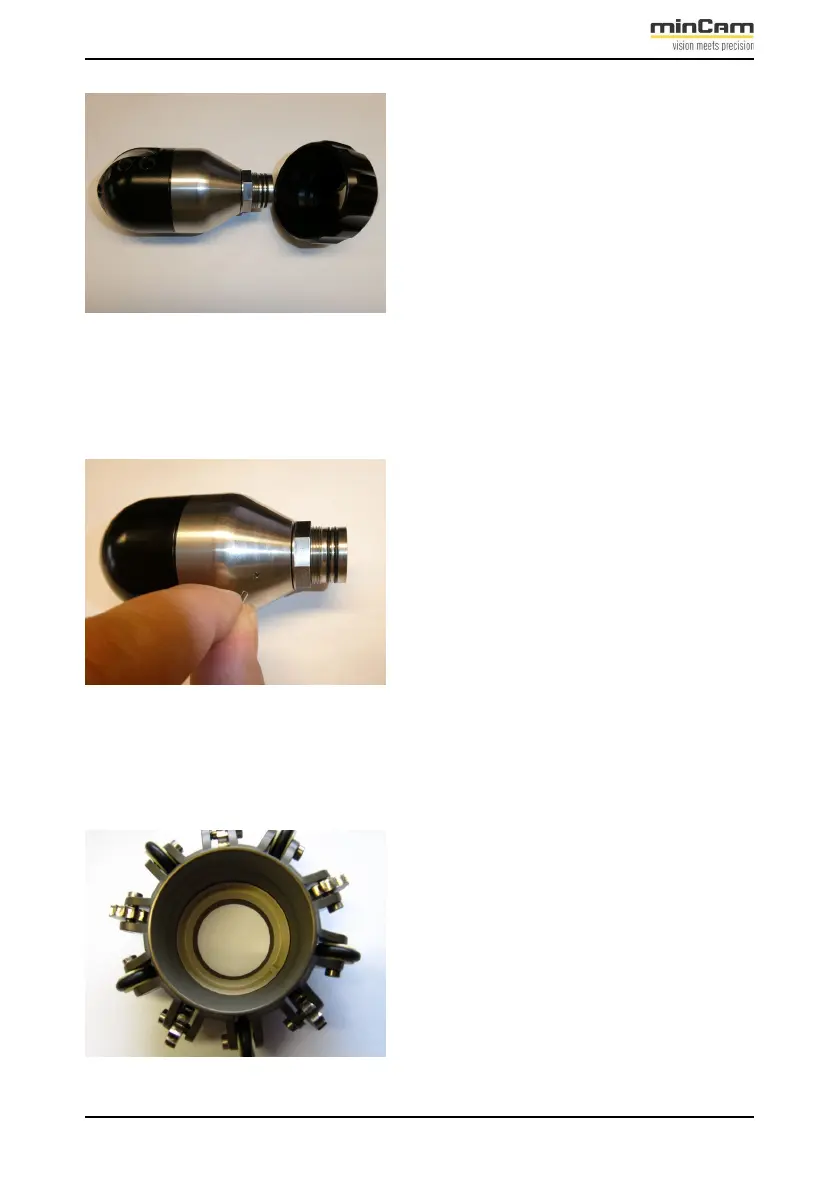

Remove the spacer
Insert the cylindrical pin into the
corresponding hole.
Insert the stop ring into the roll ring.
Chamfered side to the top.
