32 - 8 BeneVision N Series Patient Monitor Operator’s Manual
32.2.9.2 The Display of the OxyCRG Review Page
The following figure shows the OxyCRG screen:
32.2.9.3 Changing the Resolution of Trend Curves
To set the resolution of trend curves, follow this procedure:
1. Enter the OxyCRG review page.
2. Set Zoom.
32.2.9.4 Printing an OxyCRG Review Report
To print an OxyCRG review report, follow this procedure:
1. Enter the OxyCRG review page.
2. Set the desired compressed waveform and duration.
3. Select .
32.2.10 12-Lead ECG Review Page
When 12-lead ECG analysis is performed, you can review the most recent 20 events of 12-lead analysis. For more
information, see 12Resting 12-Lead ECG Analysis.
32.2.10.1 Entering the 12-Lead Review Page
Choose one of the following methods to enter the 12-lead ECG review page:
â– Upon completion of 12-lead ECG analysis, select Review from the 12-Lead Interpretation screen. For
more information, see 12Resting 12-Lead ECG Analysis.
■Select the Review quick key → select 12-Lead ECG.
■Select the Main Menu quick key → from the Review column select 12-Lead ECG.

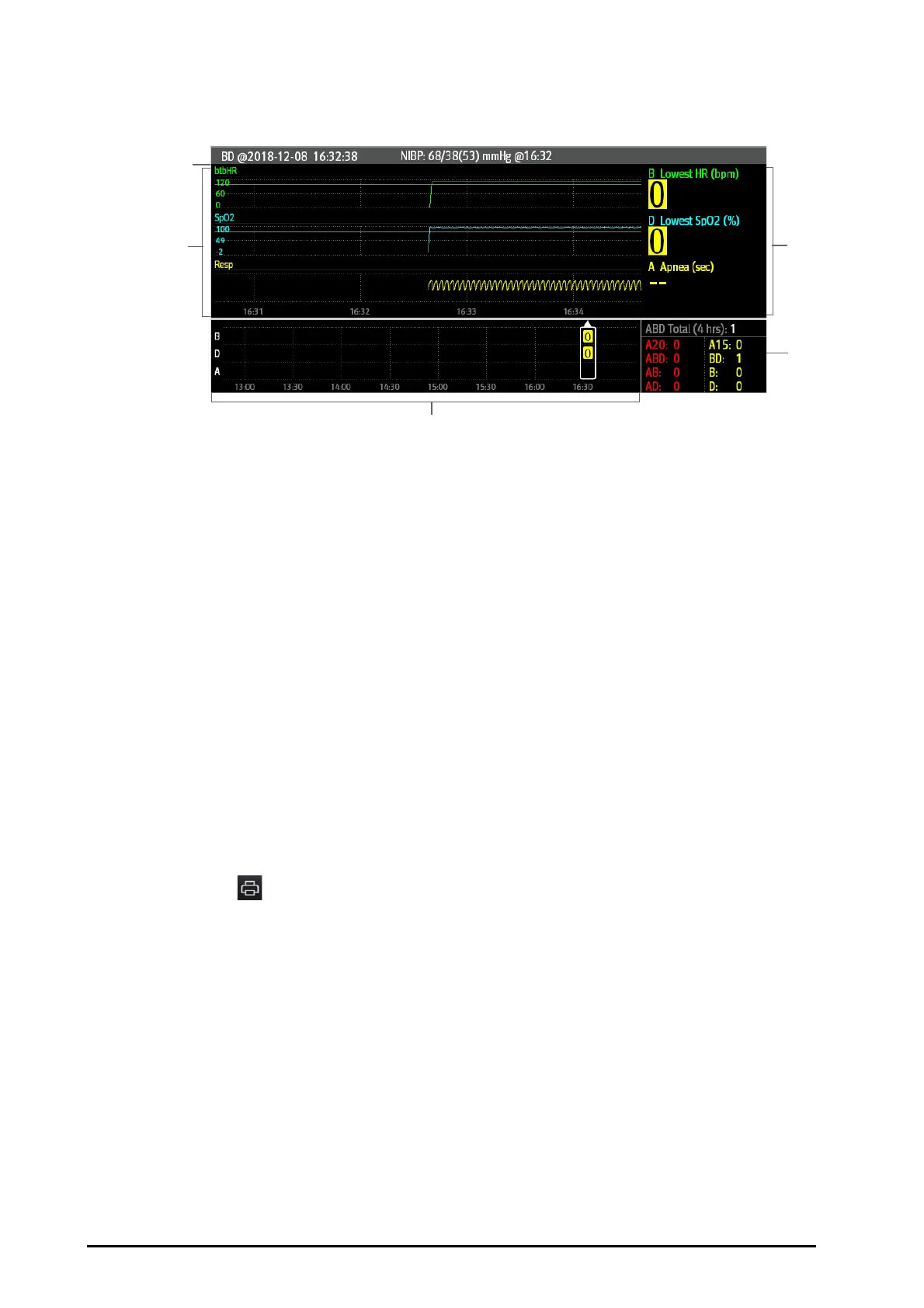

(1) Event title area: displays information of the selected event, such as the event type and time.
(2) Event detail area: displays parameter trends, compressed waveform, and parameter values of
selected event.
(3) Event summary area: displays ABD events within the Zoom period. The selected event is enclosed in
a white frame.
(4) Event statistics area: displays the total number of ABD events and the numbers of each event within
the Zoom period.
