BeneVision N Series Patient Monitor Operator’s Manual 2 - 7
2.3.3 N17, N15, N12, N12C Main Unit
The main unit displays and saves data from modules.

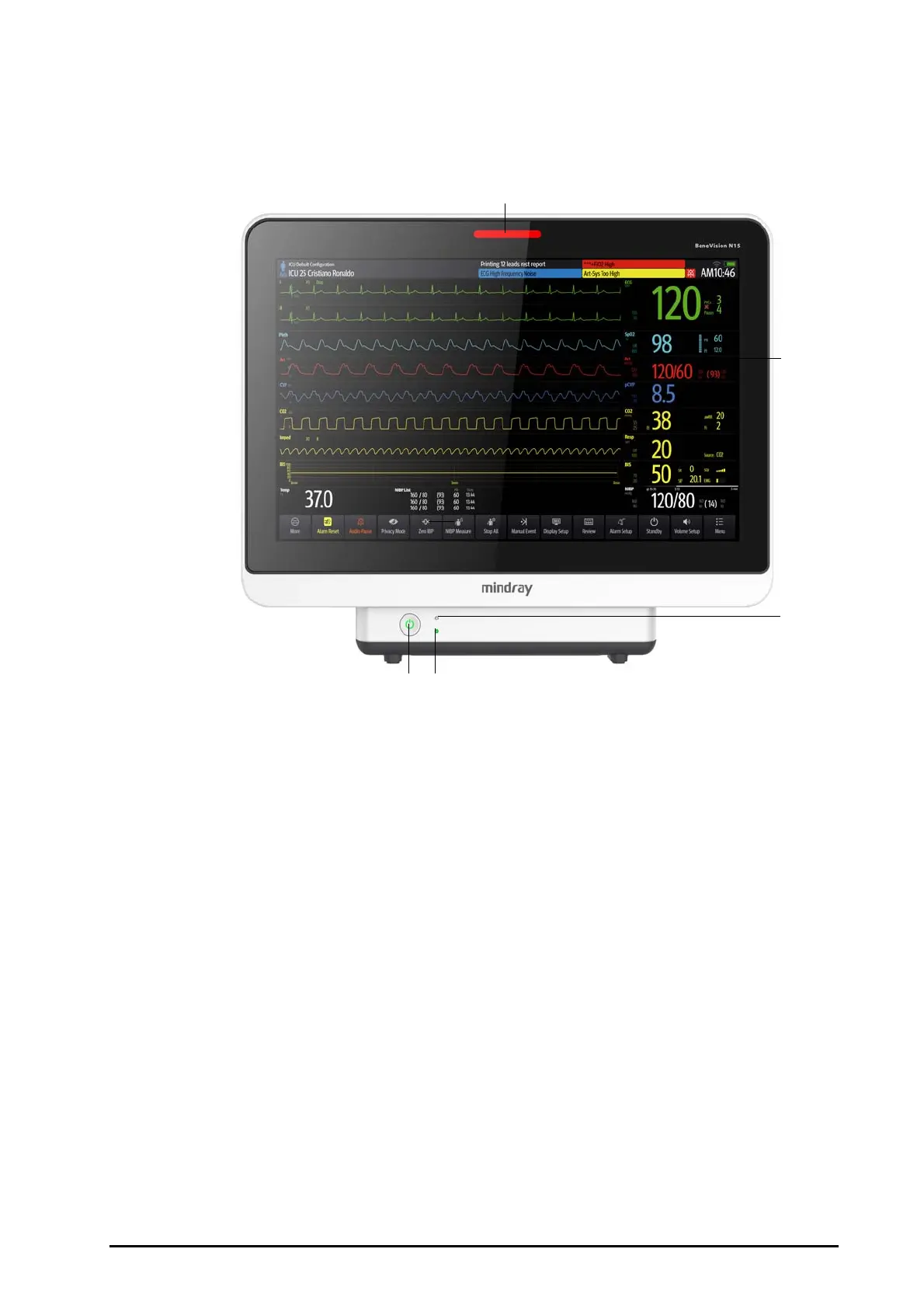

2.3.3.1 N17, N15, N12, N12C Front View
(1) Alarm lamp:
When a physiological alarm or technical alarm occurs, this lamp lights and flashes corresponding
with the alarm priority:
â—† High priority alarms: the lamp quickly flashes red.
â—† Medium priority alarms: the lamp slowly flashes yellow.
â—† Low priority alarms: the lamp lights in cyan without flashing.
(2) Display
(3) Battery indicator:
â—† Yellow: the battery is being charged.
â—† Green: the battery is fully charged.
â—† Flashing green: the monitor operates on battery power.
â—† Off: no battery is installed, or the monitor is powered off and no AC power is connected.
(4) AC power indicator
â—† On: when AC power is connected.
â—† Off: when AC power is not connected.
(5) Power switch
â—† Pressing this switch turns on the monitor.
â—† When the monitor is on, pressing and holding this switch turns off the monitor.
