33.3.2.1 Systemic Vascular Resistance Status

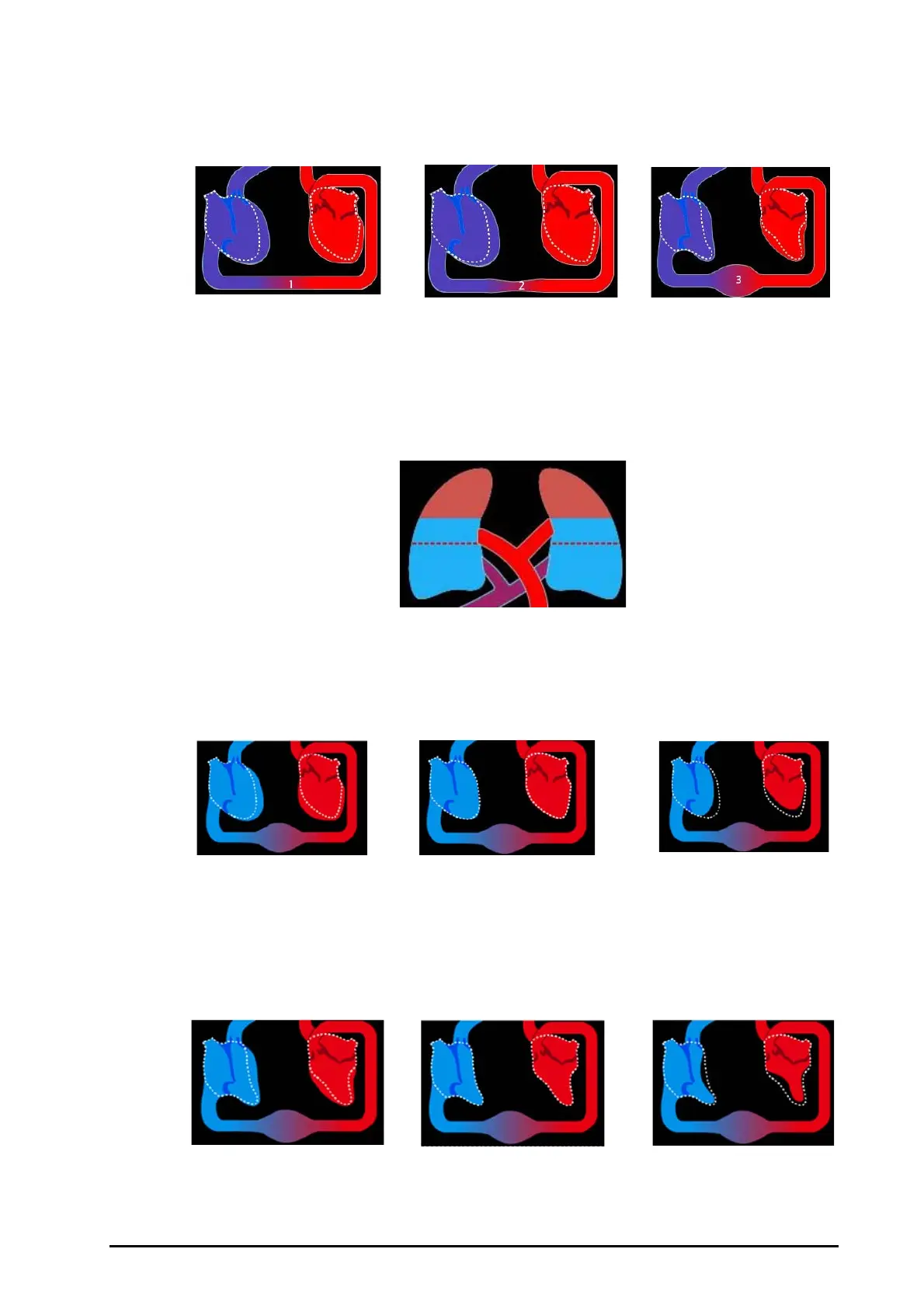

Systemic vascular resistance status is indicated by SVRI. The following pictures show the systemic vascular
resistance status.
33.3.2.2 Lung Water Status
Lung water status is indicated by ELWI. The following picture shows the lung water status, which is indicated by
the liquid level of lung. The dotted line marks the high limit of ELWI. The ELWI is considered too high if the liquid
level exceeds the dotted line. When ELWI is not available, the lung is displayed in gray color.
33.3.2.3 End Diastolic Volume Status
End diastolic volume status is indicated by EDVI (from the CCO/SvO
2
module) or GEDI (from the PiCCO module). The following
pictures show different end diastolic volume statuses. The dotted line marks the normal end diastolic volume status. When
EDVI or GEDI is not available, the heart in the diastole is displayed in gray color.
33.3.2.4 Ejection Fraction Status
Ejection fraction status is indicated by RVEF (from the CCO/SvO
2
module) or GEF (from the PiCCO module). The following
pictures show different ejection fraction statuses. The dotted line marks the normal ejection fraction status. When RVEF or GEF
is not available, the heart in the systole is displayed in gray color.
Normal resistance High resistance Low resistance
High end diastolic volume Normal end diastolic volume Low end diastolic volume volume
Low ejection fraction Normal ejection fraction High ejection fraction
