5-44 Image Optimization
Type Parameter Description
Min.
Function: set Min. as the 3D image rendering mode.
Displays the minimum echo intensity in the observation
direction.
This is useful for viewing vessels and hollow structures.
X-ray
Function: set X-ray as the 3D image rendering mode.
Displays the average value of all gray values in the ROI.
X Ray: used for imaging tissues with different internal
structures or tissues with tumors.
5.10.3.3 Static 3D Image Viewing
Enter/Exit Image Viewing
îš„ To enter image viewing:
The system enters image viewing when image acquisition is complete.
îš„ Exit
To return to 3D/4D image acquisition preparation status, press <Update> or
<Freeze>.
Activate MPR

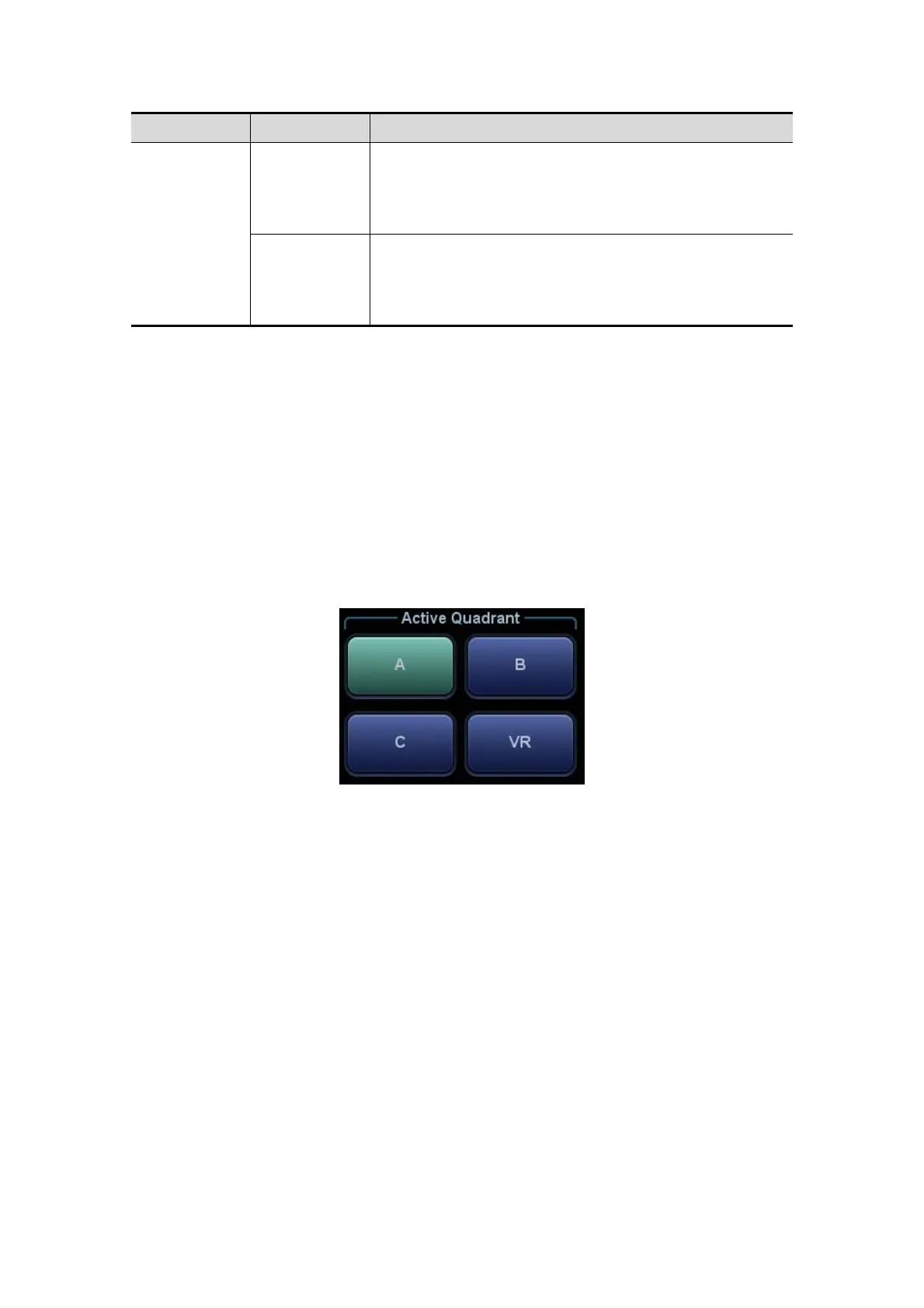

Tap [A], [B], [C] or [VR] to activate MPR or 3D image (VR).
MPR Viewing
In the actual display, different colors for the window box and the section line are used to
identify the MPR A, B and C.
z Window A is blue, and the lines (representing MPR A) displayed in the other two
windows are also blue.
z Window B is yellow, and the lines (representing MPR B) displayed in the other
two windows are also yellow.
z Window C is orange, and the lines (representing MPR C) displayed in the other
two windows are also orange.
The positions of the other two MPRs are indicated in the selected plane. You can roll the
trackball to change the position.
