12.2.7 Removing the Needle-guided Bracket
 NGB-001
 Metal-needle detachable

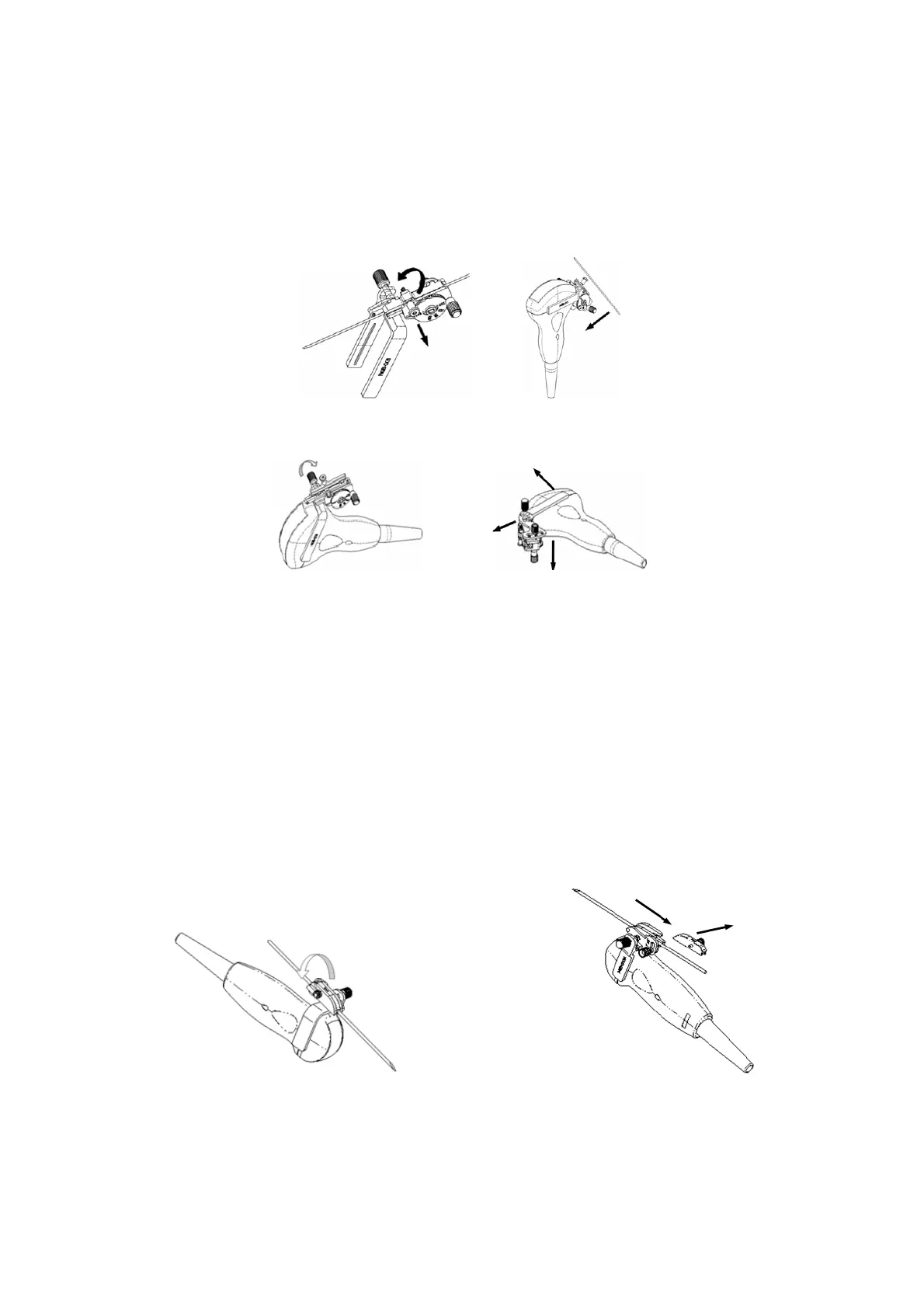

1. Pull the lock pin and open up the V-shaped cover to expose the needle.
2. Separate the bracket and the transducer from the needle.
3. Screw the pinch nut to release the needle-guided bracket.
4. Separate the bracket and the transducer.
 Metal-needle undetachable
While holding the transducer and the needle-guided bracket, open the Grip knob of the
needle-guided bracket.
 NGB-002
While holding the transducer and the needle-guided bracket, open the Grip knob of the
needle-guided bracket.
 NGB-003
Metal/needle detachable needle-guided bracket:
(1) Screw the nut of the guiding block and remove the guiding block slightly along the
direction of the needle’s tail.
(2) Separate the residual part of the needle-guide bracket and the transducer from the
needle.
