Probes and Biopsy 12-35

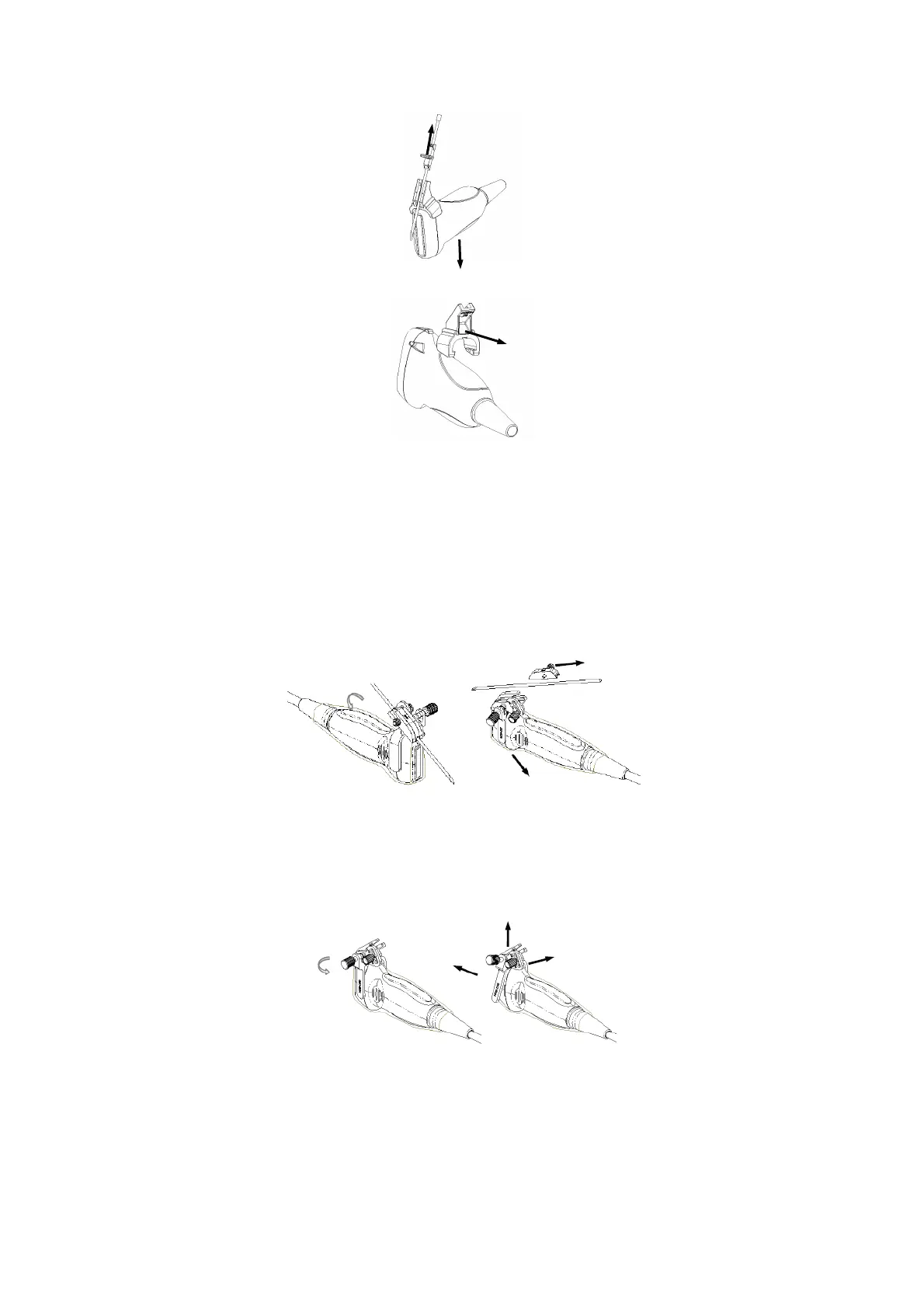

3) Remove the support of needle-guided bracket from the transducer.
 NGB-010
(1) Remove the guiding block slightly along the direction of the needle’s tail, and
separate the residual part of the needle-guide bracket and the transducer from the
needle.
(2) Remove the support of needle-guided bracket from the transducer.
 NGB-016
1. Screw the nut of the guiding block and remove the guiding block slightly along the
direction of the needle’s tail.
2. Separate the residual part of the needle-guide bracket and the transducer from the
needle.
3. Screw the pinch nut of the bracket, and remove the needle-guided bracket from the
transducer.
4. Separate the transducer and the needle-guided bracket.
12.2.8 Clean and Sterilize the Needle-guided Bracket
Cleaning
Follow the cleaning instructions in the manual.
