Mindray MX7 Service Manual

Part I Service Scenarios
Update 112

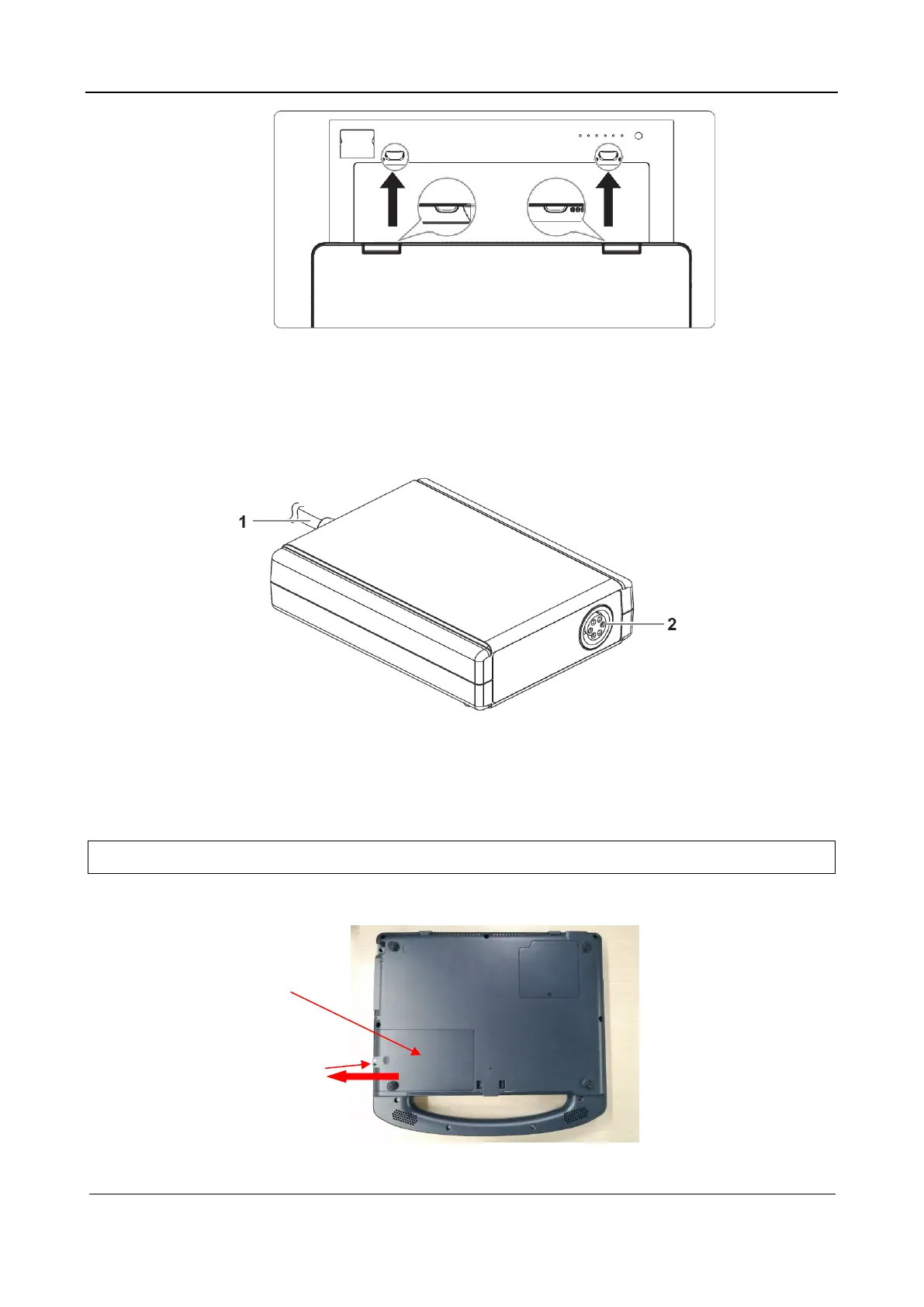

1. Place U-Bank to a flat and solid platform.
2. Align the grooves of the system with the tabs of U-Bank.
3. Push the system in the arrow direction as shown in the figure above until the system is locked in
place.
4.3.2.3 Upgrading the Physiological Signal Module
1. Connect the USB cable (shown in Figure 1) of the ECG module to the USB port on the ultrasound
equipment during power-off.
2. Connect the ECG cable to the lead port (shown in Figure 2) of the ECG module.
4.3.2.4 Upgrading the Battery
Note:
Install the battery when the system is shut down.
1. Remove an M3X8 Nylok screw from the battery compartment cover and then take off the battery
compartment cover along the direction indicated by the arrow.
M3X8 Nylok screw
Battery
compartment cover

Mindray MX7 Specifications

General

Display Size	15.6 inches
Transducer Ports	3
Portability	Portable
Type	Ultrasound System
Display Type	LCD
Battery Life	120 min
Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler
Connectivity	Wi-Fi, Ethernet, USB
Applications	Vascular, Cardiology, OB/GYN, Urology
Probe Connectors	3
Operating System	Windows
