Mindray MX7 Service Manual

Part I Service Scenarios
Update 113
2. Install the battery in the battery compartment and then install the battery compartment cover.
4.3.2.5 Upgrading the Wi-Fi Module
1. Remove the M2.5X4 plus flat-head screws from the cover plate of the bottom case of the
equipment, and then take off the SSD cover plate.
2. Install the Wi-Fi module at the socket, tighten the screws of the Wi-Fi module, and connect the two
Wi-Fi antennas.
4.3.2.6 Upgrading the 4G Module
1. Remove the M2.5X4 plus flat-head screws from the cover plate of the bottom case of the
equipment, and then take off the SSD cover plate.

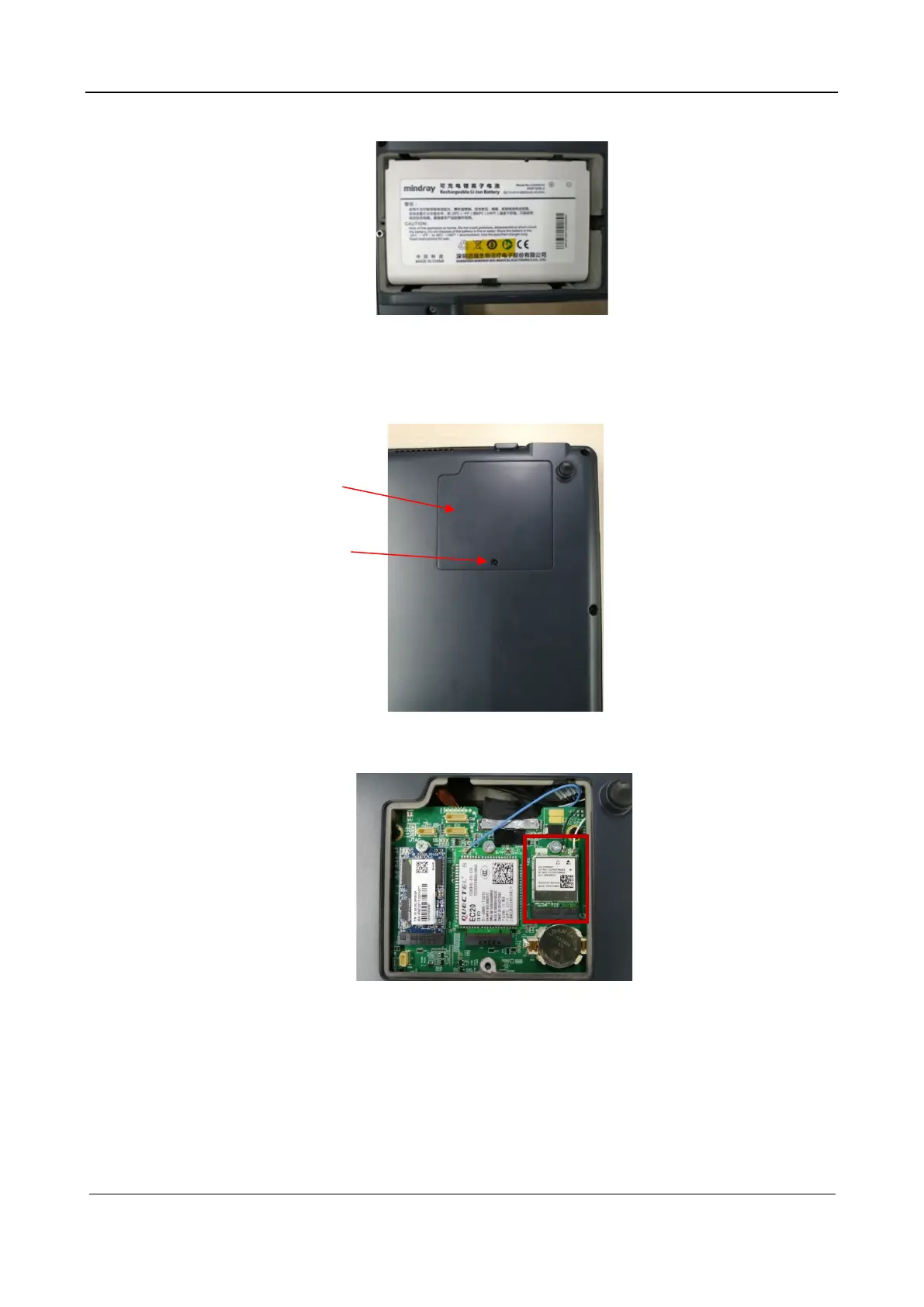

SSD cover plate
M2.5X4 plus flat-head screw

Mindray MX7 Specifications

General

Display Size	15.6 inches
Transducer Ports	3
Portability	Portable
Type	Ultrasound System
Display Type	LCD
Battery Life	120 min
Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler
Connectivity	Wi-Fi, Ethernet, USB
Applications	Vascular, Cardiology, OB/GYN, Urology
Probe Connectors	3
Operating System	Windows
