Mindray MX7 Service Manual

Part I Service Scenarios
Update 114

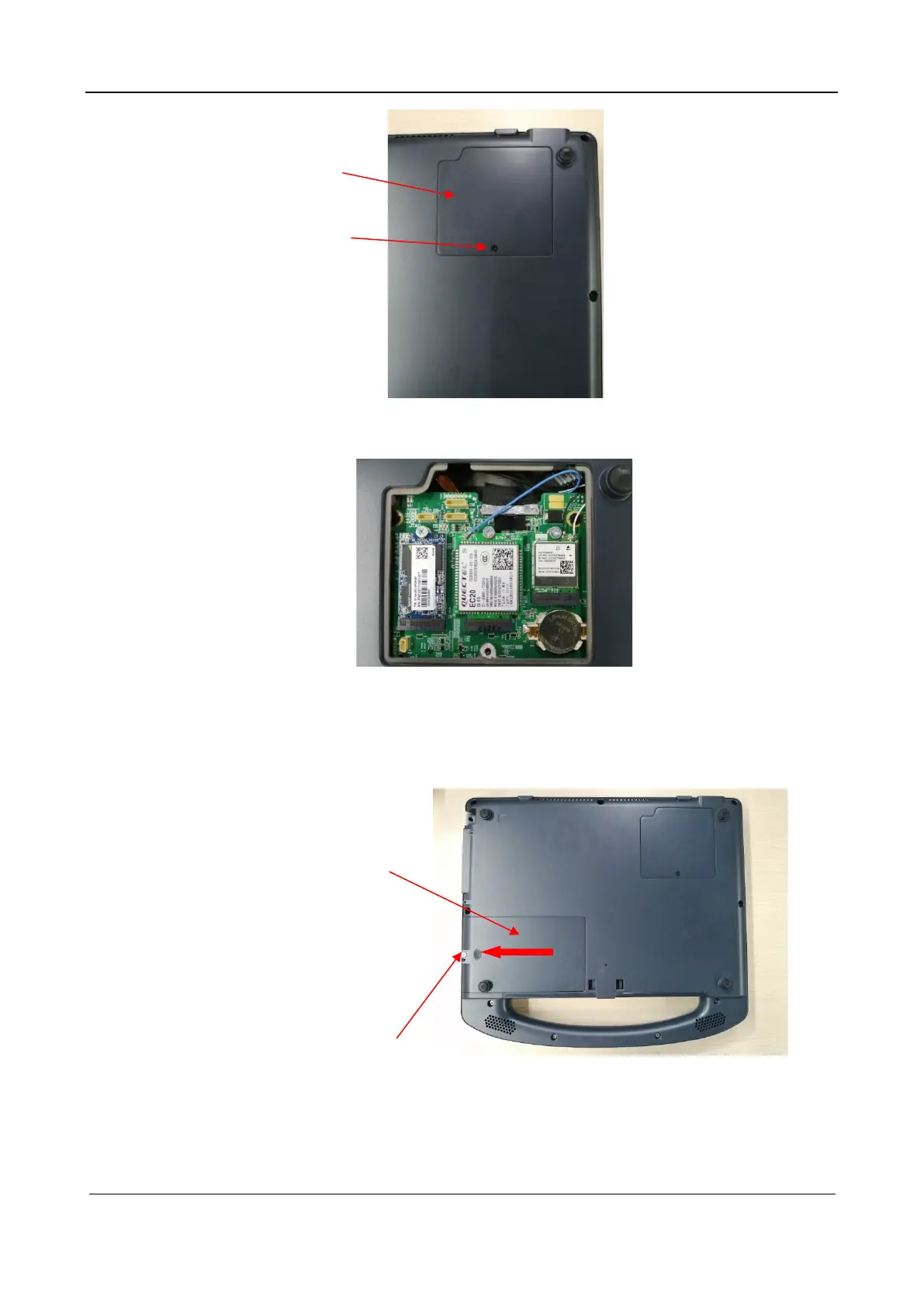

2. Install the 4G module at the socket, tighten the screws of the 4G module, and connect the 4G
module antenna.
4.3.2.7 4D/TEE/CW board
1. Remove an M3X8 Nylok screw from the battery compartment cover and then take off the battery
compartment cover along the direction indicated by the arrow.
2. Pull the battery pull tab and take out the battery.
M3X8 Nylok screw
Battery compartment cover
SSD cover plate
M2.5X4 plus flat-head screw

Mindray MX7 Specifications

General

Display Size	15.6 inches
Transducer Ports	3
Portability	Portable
Type	Ultrasound System
Display Type	LCD
Battery Life	120 min
Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler
Connectivity	Wi-Fi, Ethernet, USB
Applications	Vascular, Cardiology, OB/GYN, Urology
Probe Connectors	3
Operating System	Windows
