Mindray MX7 Service Manual

Part II General Information
Structure and Assembly/Disassembly 179

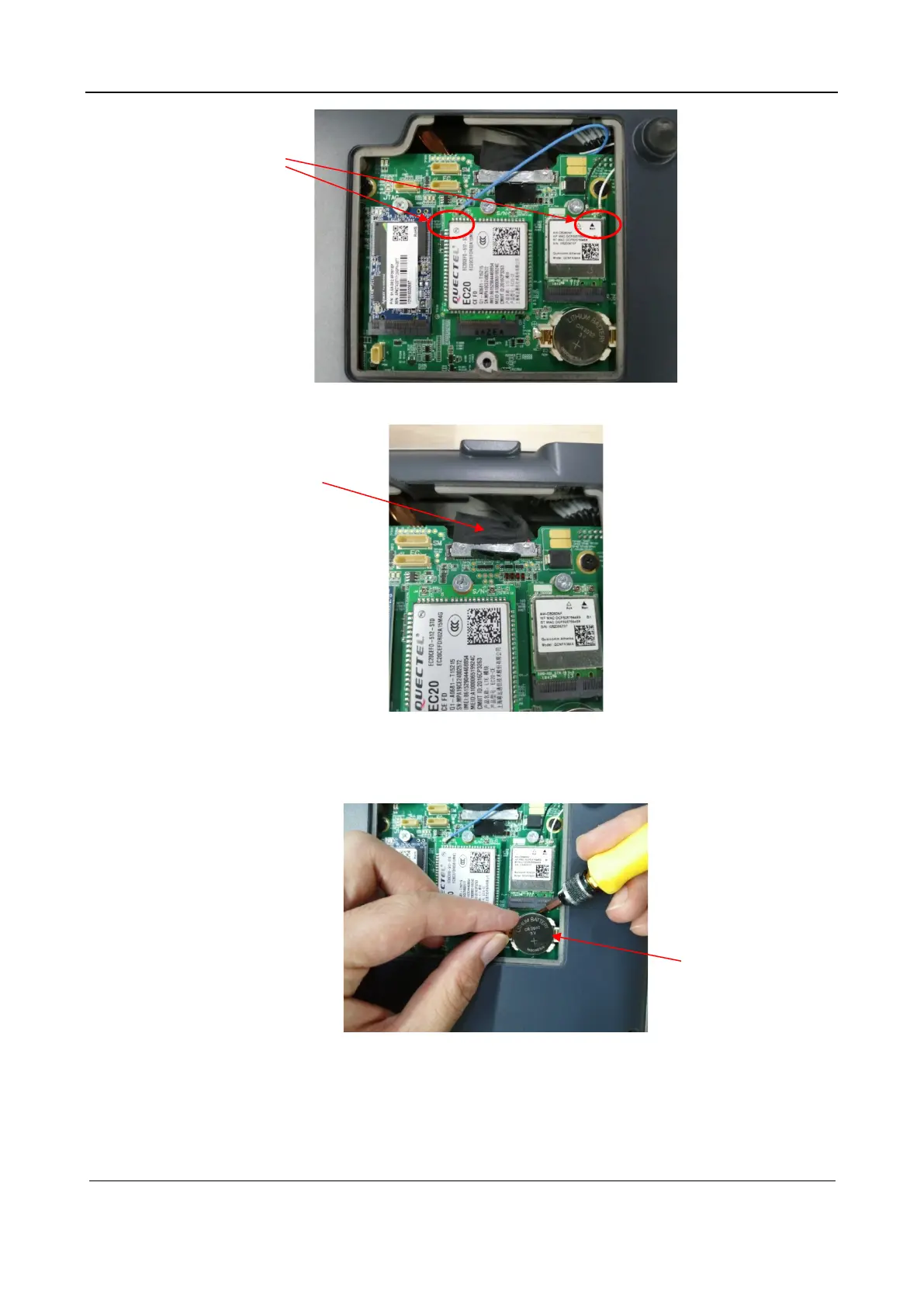

3. Remove the LCD signal cable with the black pull tab.
4. Remove the button battery.
Insert a flathead screwdriver into the gap between the button battery and the plastic cover. The
button battery ejects automatically.
5. Remove the SSD card, 4G card, and Wi-Fi card.
Remove the three M3X5 cross recessed flathead screws and take off the three cards along the
direction indicated by the arrows.
Antenna buckle
LCD signal cable
Button battery

Mindray MX7 Specifications

General

Display Size	15.6 inches
Transducer Ports	3
Portability	Portable
Type	Ultrasound System
Display Type	LCD
Battery Life	120 min
Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler
Connectivity	Wi-Fi, Ethernet, USB
Applications	Vascular, Cardiology, OB/GYN, Urology
Probe Connectors	3
Operating System	Windows
