Mindray MX7 Service Manual

Part II General Information
Structure and Assembly/Disassembly 180

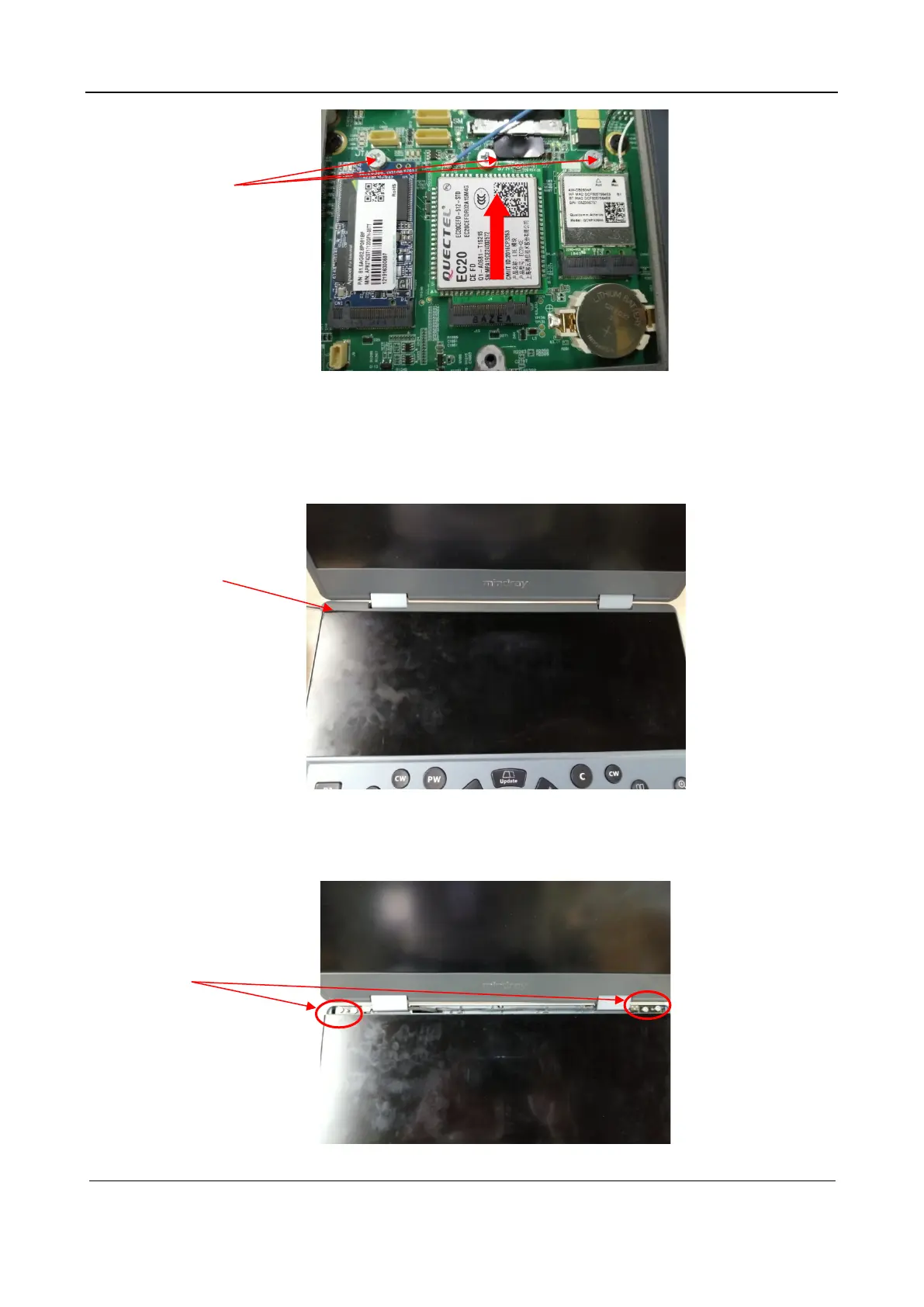

5.2.4 LCD and Keyboard Cover
1. Remove the spindle cover.
Insert a flathead screwdriver into the gap between the edge of the spindle cover and the keyboard
cover, and pull out the spindle cover.
2. Detach the LCD.
Use a crosshead screwdriver to remove the four M3X5 cross recessed flathead screws from the
damping axis, remove the signal cable softly, and then detach the LCD.
M3X5 cross recessed
flathead screw
Spindle cover
M3X5 cross recessed
flathead screw

Mindray MX7 Specifications

General

Display Size	15.6 inches
Transducer Ports	3
Portability	Portable
Type	Ultrasound System
Display Type	LCD
Battery Life	120 min
Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler
Connectivity	Wi-Fi, Ethernet, USB
Applications	Vascular, Cardiology, OB/GYN, Urology
Probe Connectors	3
Operating System	Windows
