Mindray MX7 Service Manual

Part II General Information
Structure and Assembly/Disassembly 185

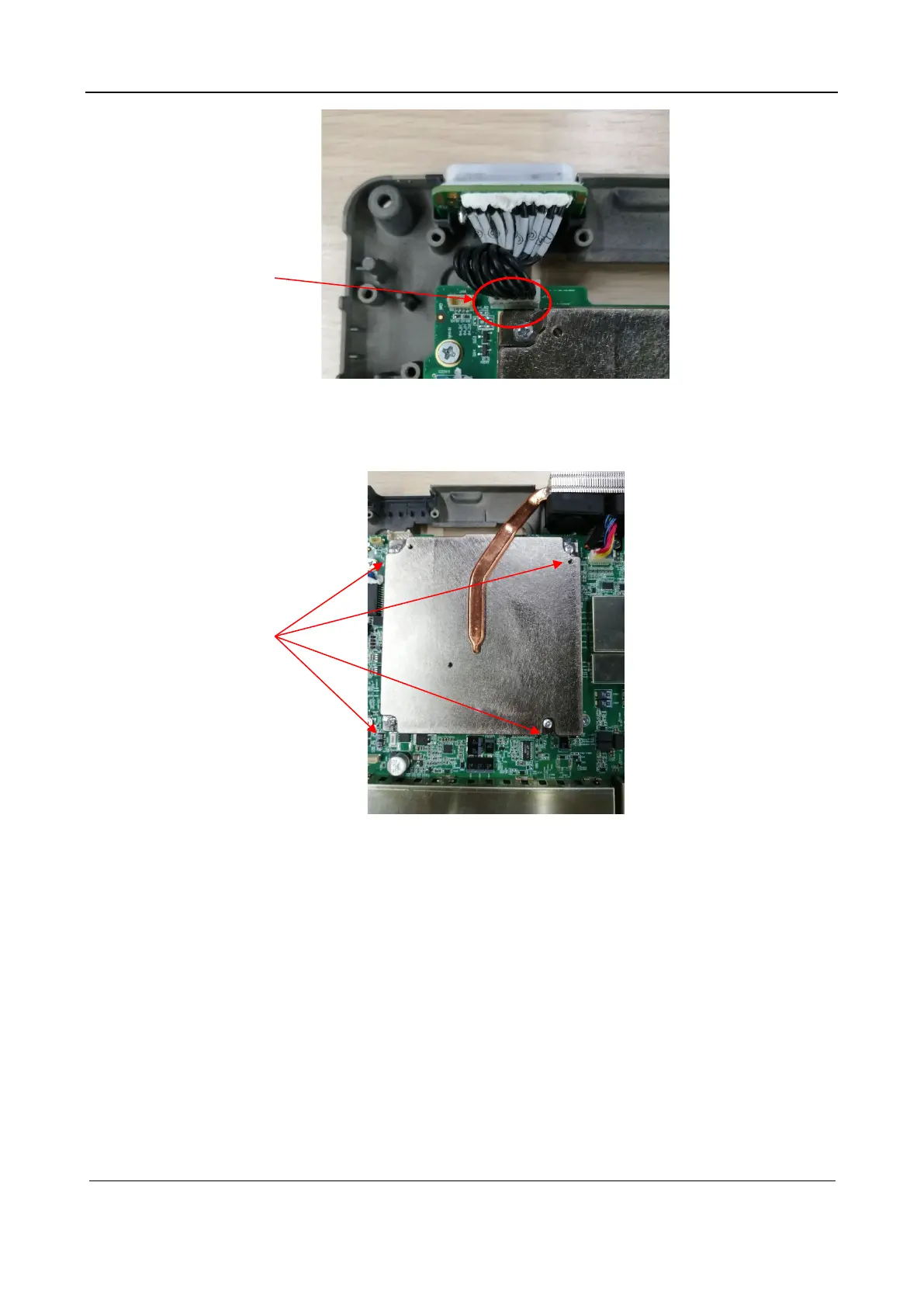

7. PC module radiator
Use a screwdriver to remove the four M2.5X8 cross recessed panhead screws and lift the PC
module radiator upwards vertically.
8. FPGA module radiator
Use a screwdriver to remove the four M2.5X4 plus flat-head screws. The FPGA contact surface is
coated with thermally conductive silicon and therefore is adhesive. Insert a flathead screwdriver
into the gap on the contact surface and take off the FPGA module radiator slowly.
Magnetic socket cable
M2.5X8 cross recessed
panhead screw

Mindray MX7 Specifications

General

Display Size	15.6 inches
Transducer Ports	3
Portability	Portable
Type	Ultrasound System
Display Type	LCD
Battery Life	120 min
Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler
Connectivity	Wi-Fi, Ethernet, USB
Applications	Vascular, Cardiology, OB/GYN, Urology
Probe Connectors	3
Operating System	Windows
