Part II General Information

Structure and Assembly/Disassembly 186

9. Main board PCBA

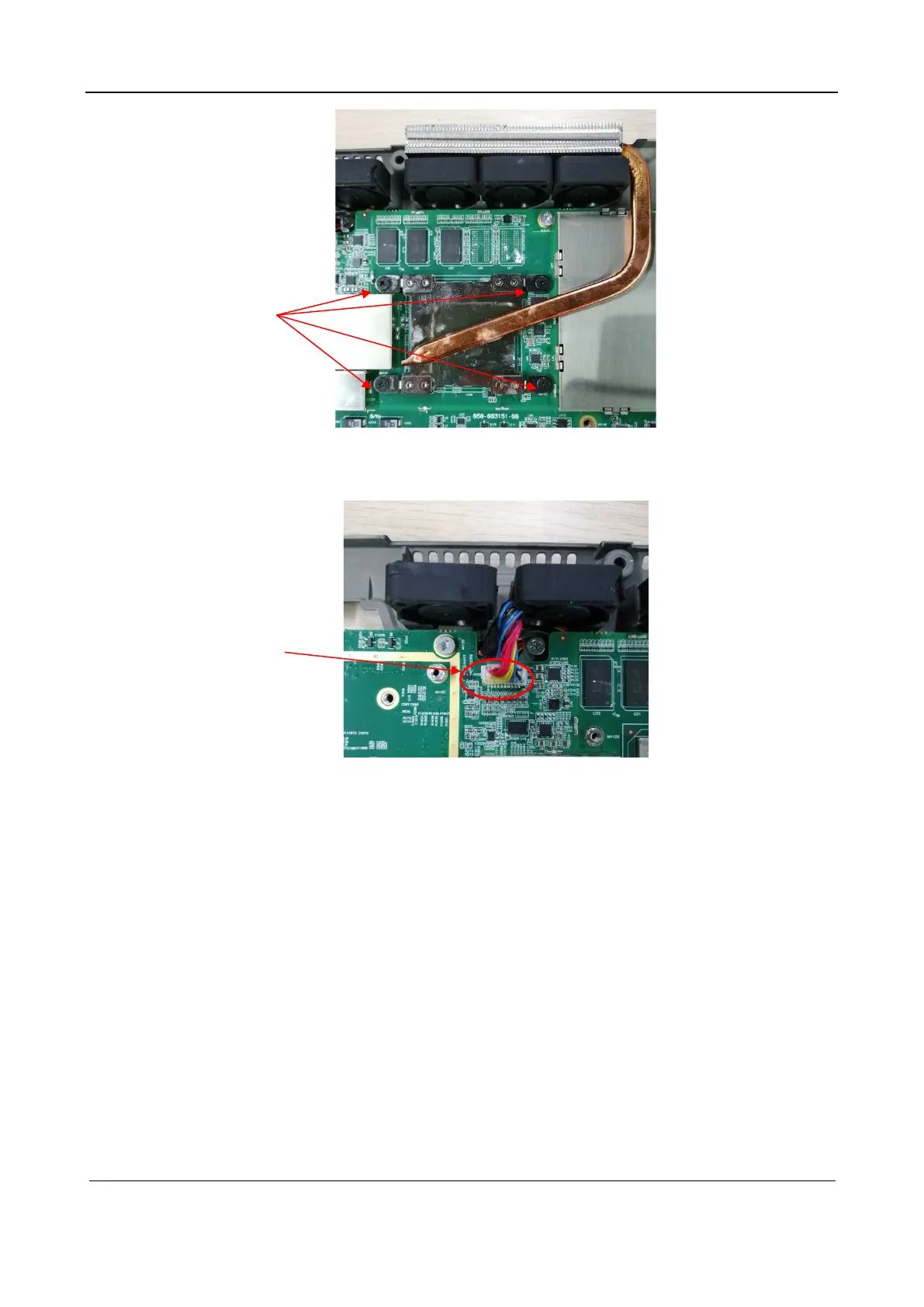

a Remove the fan cable bundle from the interface.

b Use a screwdriver to remove the nine M3X5 cross recessed flathead screws and take off the

main board PCBA.

M2.5X4

plus flat-head screw

Fan cable bundle

interface

Default Chapter3
