Mindray MX7 Service Manual

Part II General Information
Structure and Assembly/Disassembly 205
d Take out the guy-wire nut and bolt from the guy-wire fixing block.
Remove the guy-wire nut and bolt from the fixing block with your hands.
3. Remove the panel.
Use an M5 Allen wrench to remove the six M5X16 hex socket screws shown in the following
figure. Take off the panel from the column.

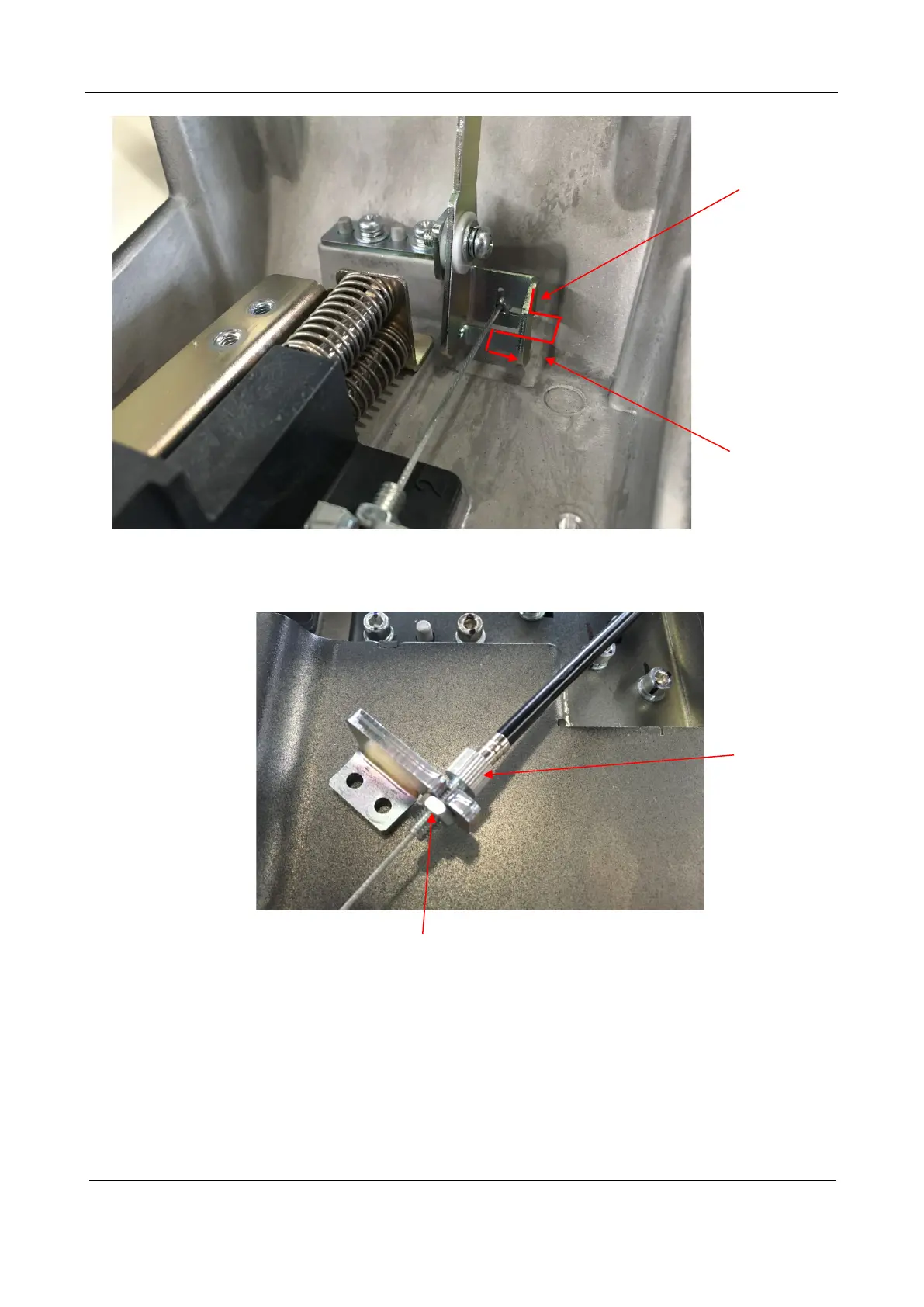

Guy-wire anchor
Connecting rod
Guy-wire
bolt
Guy-wire nut
