Mindray MX7 Service Manual

Part II General Information
Structure and Assembly/Disassembly 207

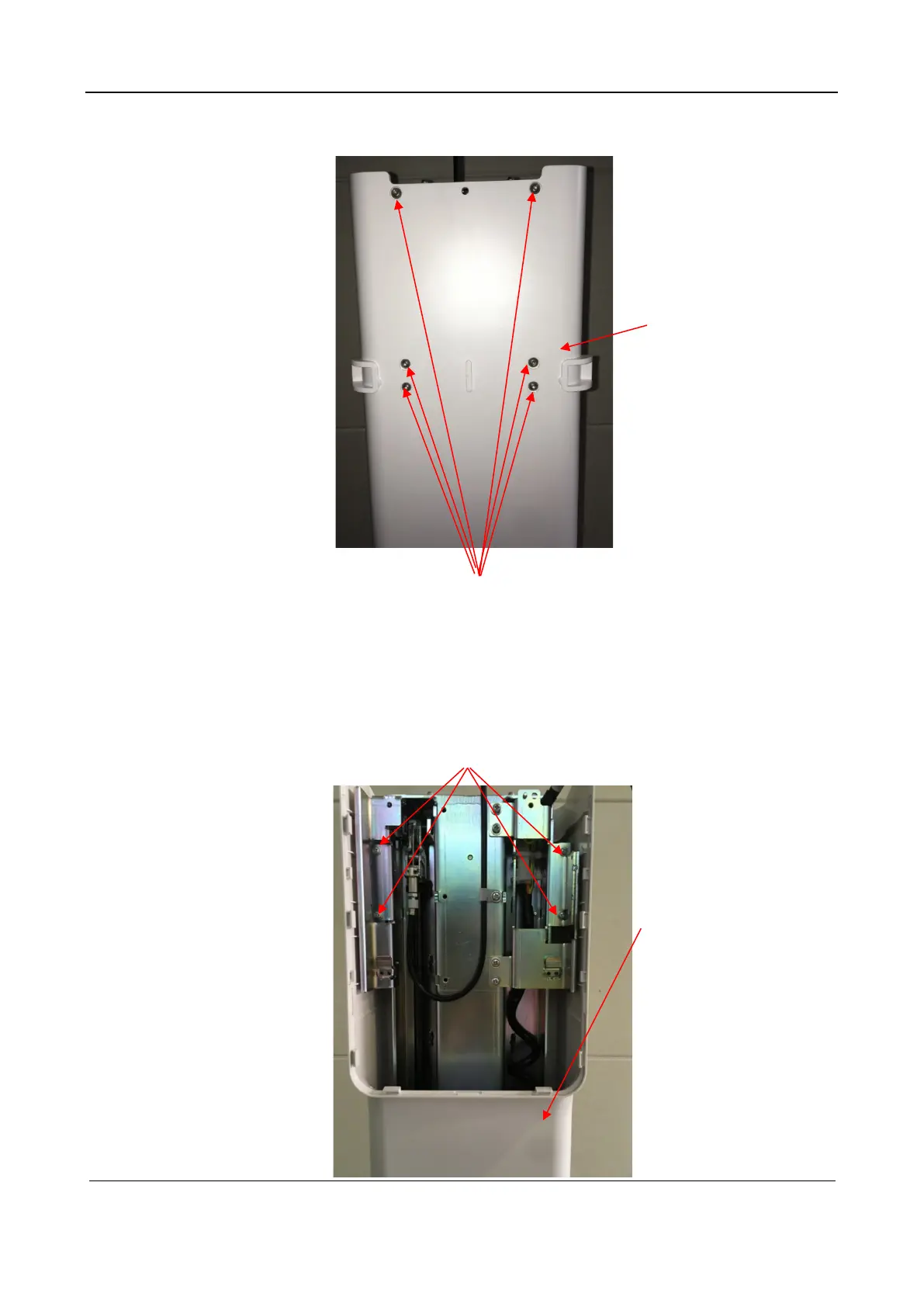

b Remove the four M3X8 cross recessed panhead screws on the rear side of the shell of the
outer column. Then hold the shell of the outer column and let it fall down to the bottom of the
outer column.
M4X8 hex half-round
head screw (6 pcs)
Shell of the outer
column
Front side (handle side)
M3X8 cross recessed
panhead screw (4 pcs)
Shell of the outer
column
