Mindray MX7 Service Manual

Part II General Information
Structure and Assembly/Disassembly 208
c Remove the extender brackets.

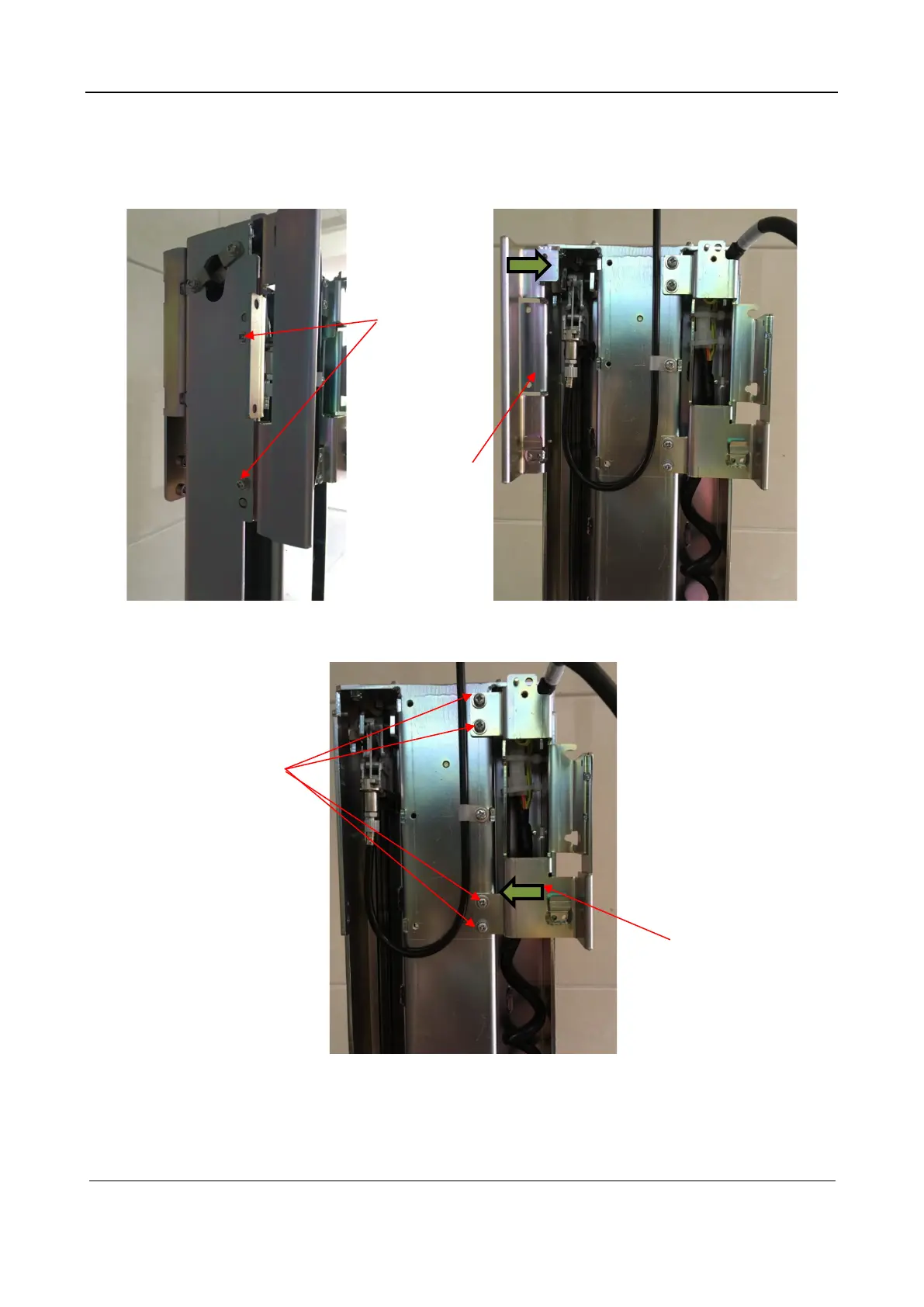

As shown in the following figure, first remove the two M3X8 cross recessed panhead screws
on the left side of the column for fastening the left extender bracket, and then push the left
extender bracket rightwards to take off it.
Remove the four M3X12 cross recessed panhead screws for fastening the right extender
bracket, and then push the right extender bracket leftwards to take off it.
d Remove the spring cable from the right extender bracket.
As shown in the following figure, cut the two cable ties, remove the M3X8 panhead screw
(ground screw), and then drag out the spring cable from the slot of the right extender bracket
based on the direction indicated in the figure.
Left extender
bracket
M3X8 cross
recessed panhead
screw
Right extender
bracket
M4X12 cross recessed
panhead screw

Mindray MX7 Specifications

General

Display Size	15.6 inches
Transducer Ports	3
Portability	Portable
Type	Ultrasound System
Display Type	LCD
Battery Life	120 min
Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler
Connectivity	Wi-Fi, Ethernet, USB
Applications	Vascular, Cardiology, OB/GYN, Urology
Probe Connectors	3
Operating System	Windows
