Mindray MX7 Service Manual

Part II General Information
Structure and Assembly/Disassembly 209

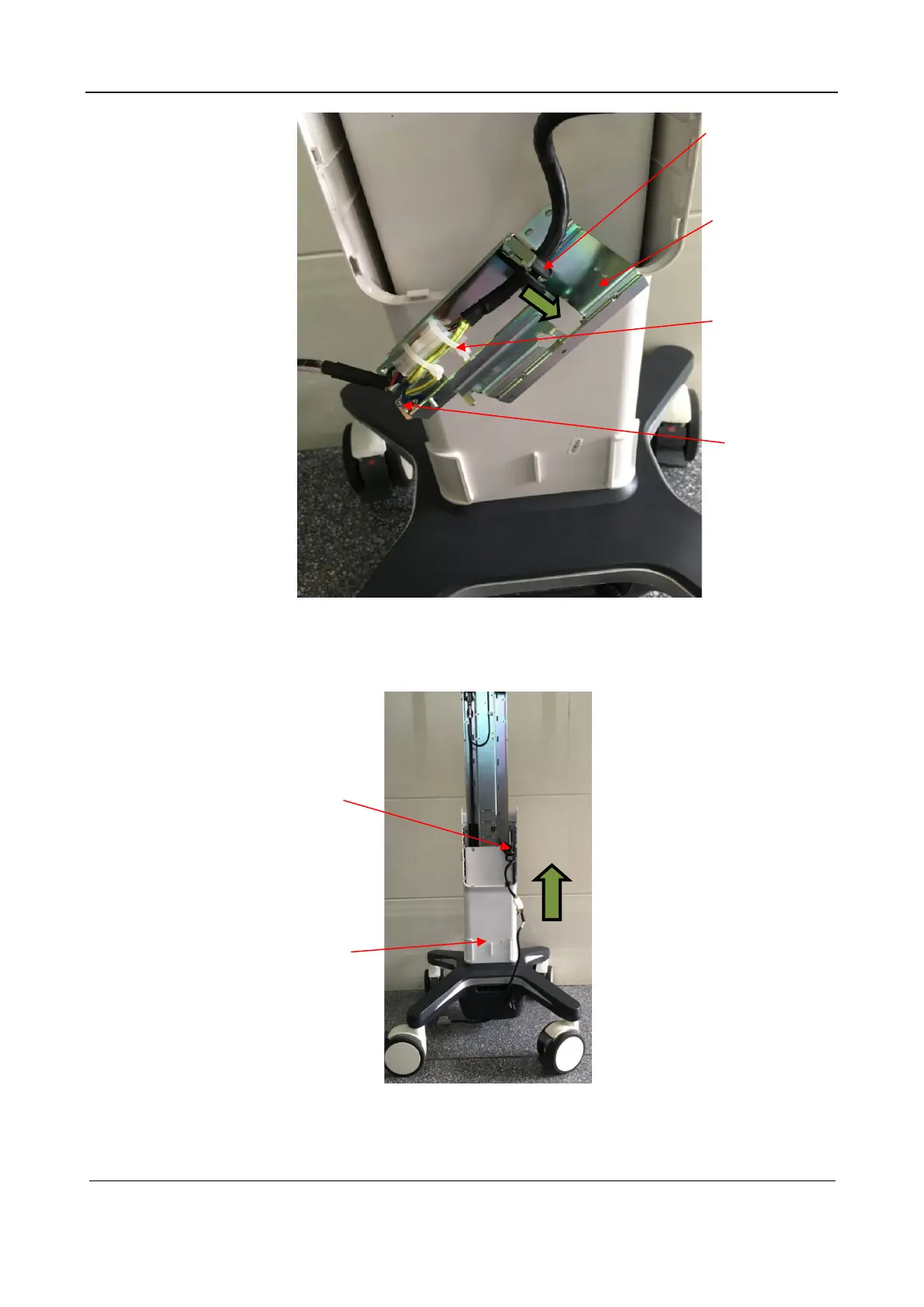

e Remove the shell of the outer column.
Take off the shell of the outer column from bottom up. Drag the spring cable upwards to avoid
clamping the cable.
3. Remove the shell of the inner column.
a Remove the assembly bracket of the shell.
Right extender
bracket
Spring cable
Cable tie
M3X8 cross
recessed panhead
screw
Shell of the
outer column
Spring cable
