Mindray MX7 Service Manual

Part II General Information
Structure and Assembly/Disassembly 216
5.3.11 Protection and Indicator Board and Output Control Board
1. Remove the protection and indicator board.
Wear a pair of ESD gloves, remove the two plugs from the board shown in the figure, remove the
two M3X8 cross recessed panhead screws for fastening the board, and take off the protection and
indicator board.

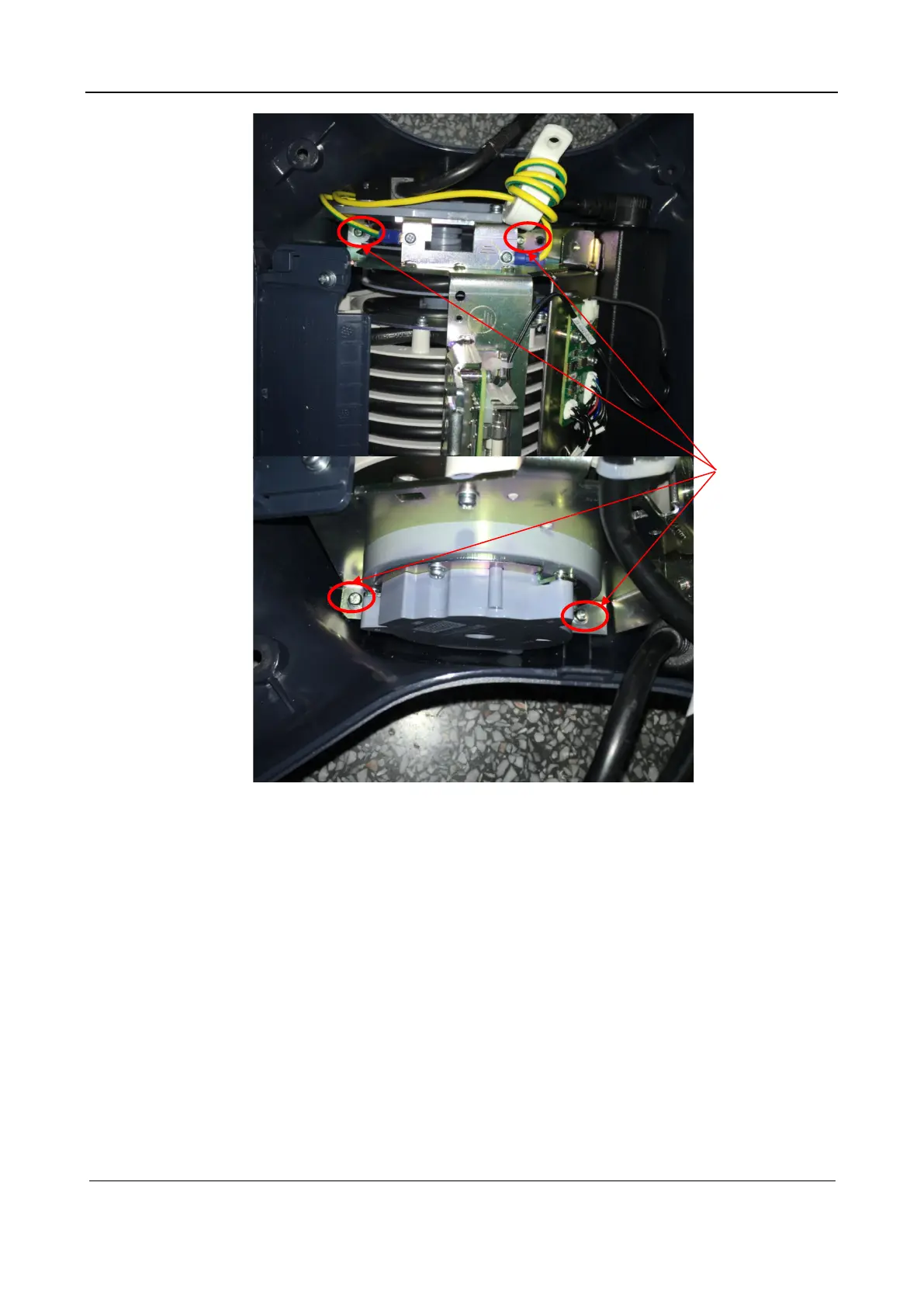

M4X12 cross
recessed panhead
screw (4 pcs)
