Part I Service Scenarios
Installation 13
7. Take out the probe.
Note: If a battery pack is available, assemble the battery pack together with the main unit. The EVA
active block (shown in the following figure) is placed inside the upper foam. Do not throw it away
during unpacking. Instead, place the active block in the position for the battery pack (shown in the
following figure) after taking out the main unit and battery pack.
1.2.1.6 Checking Articles
After unpacking, take out the packing list from the carton and check whether the actual articles conform
to the packing list. If the actual articles do not conform to the packing list, for example, if some
accessories are absent, contact the subsidiary or headquarters promptly and take pictures as evidence.
1.2.2 Transporting the Main Unit
1.2.2.1 Transporting the Bare-Metal Main Unit and Trolley
Transportation by truck
Normally, the MX trolley has a height of 1200 mm, width 520 mm, and depth 502 mm. The main
unit and trolley weigh 41.3 kg together. The trolley weighs 37.8 kg and the main unit weighs 3.5
kg. Observe the following precautions during transportation by truck:
a The trunk of the truck must be larger than the trolley in size.
b Take off the main unit and probe from the trolley and place them in a safe place.
c Press the lifting button to lower the trolley to the extreme.

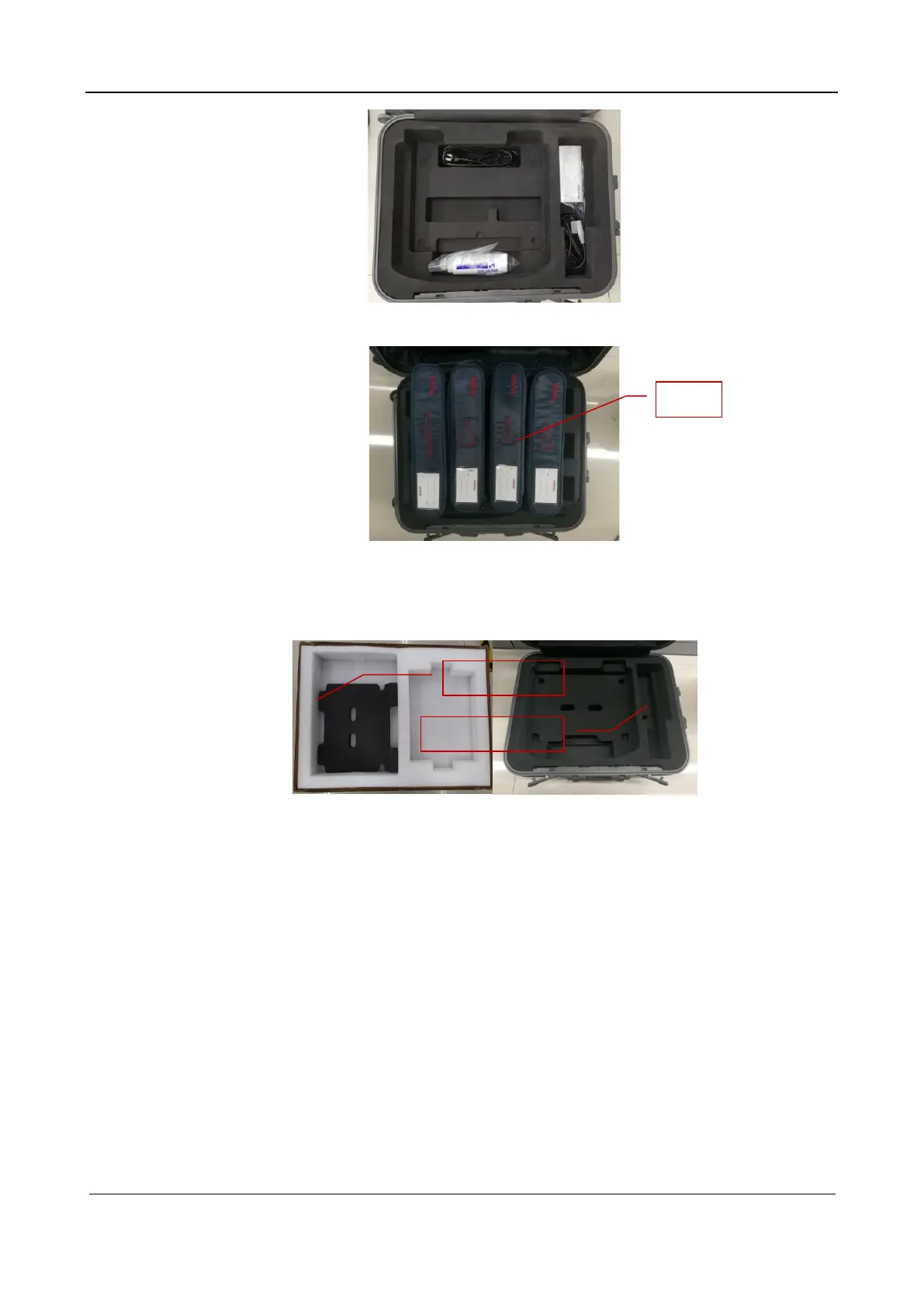

EVA active block
EVA active block
