Post-processing modes
ZS3 supports four post-processing modes: Render, Render with Light, MPR, and Tomo.
Render Mode
The imaging screen displays the surface volume image in a large format with the three
orthogonal image planes in a small format. The volume image (V) is the active window by
default.
Render Mode with Light

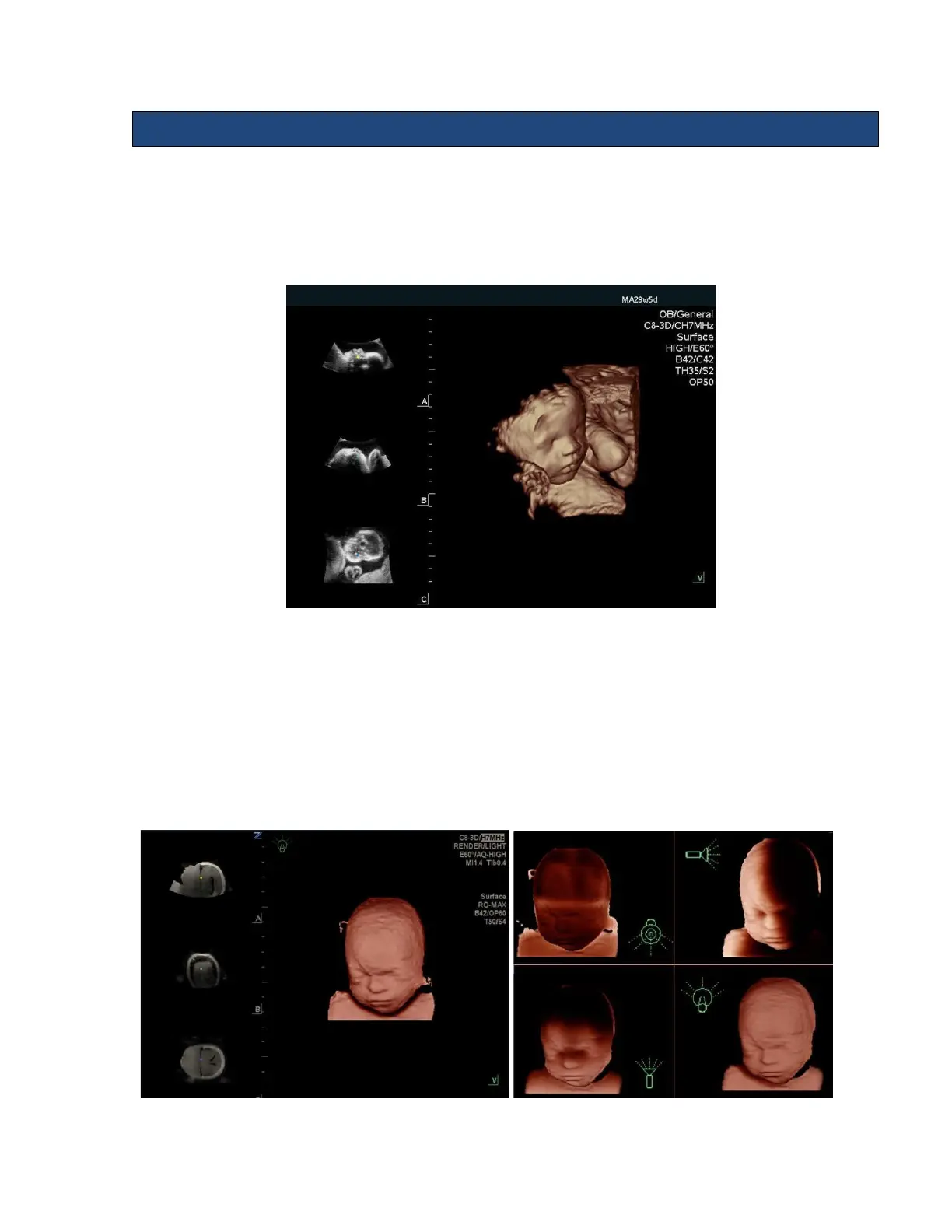

Figure 9-1: Render Mode
Lighting provides surface enhancement to Rendered volumes.
The imaging screen displays the surface volume image in a large format with the three
orthogonal image planes in a small format. The volume image (V) is the active window by
default.
When the volume image is the active window and Light is activated using the Softkey,
an onscreen graphic is displayed with direction of the light.
The Light softkey controls the direction of the light.
Figure 9-2: Render Mode with Light Figure 9-3: Light Direction Examples
