Moving the ZS3 system
Moving the System
1.
Lower the adjustable height to MINIMUM using the height adjustment release lever.
2.
Fold the monitor display down to a horizontal position and lock in place. The
monitor arm will lock into a non-rotating position when the two parts of the
articulating arm are in-line with each other AND centered with the system.
3.
Ensure that the transducer cables are wrapped over the cable hooks.
4.
Place wheel(s) in the non-swivel position.
5.
Ensure that all wheels do not have the brakes set ON and push the cart
from the front when transferring from location to location.
6.
When moving the cart over obstacles, always pull from the front.
Before Scanning
1.
Before scanning a patient, apply the brake by fully depressing any of the three brake pedals.
2.
To disengage brakes, flip up the pedals.
Height Adjustment
The height of the user interface console can be adjusted by squeezing the release lever located
inside the right-front handle. Refer to Figure 2.3: Height Adjustment.

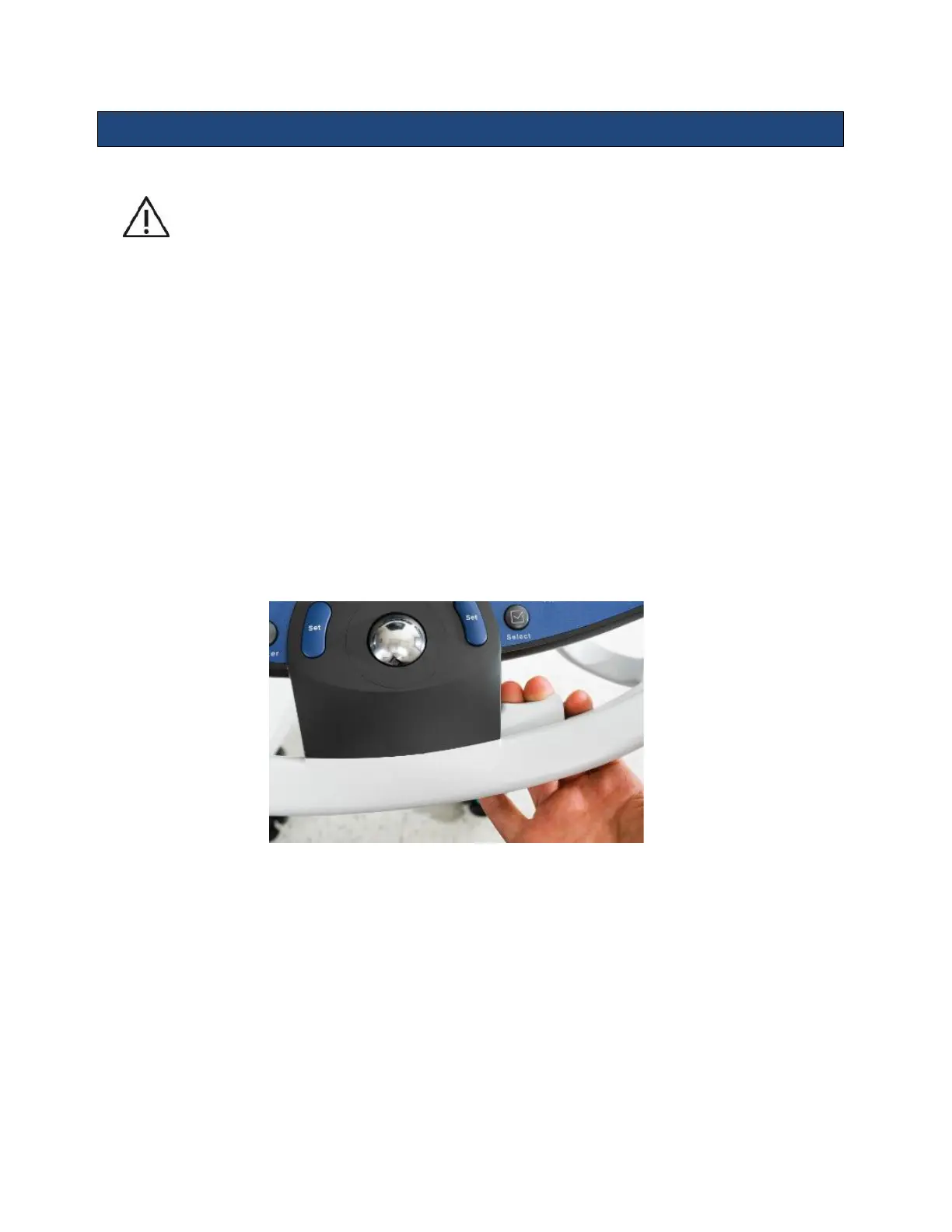

Figure 2.3: Height Adjustment
To Next Page
