7.
Archiving, Review and Management
Image Print and Storage
There are three keys that can be configured to either print or store:
Store 1, Store 2, and Print. These can be configured to send still
images, clips, and screen shots to an optional printer, hard drive, USB
device, DICOM networked device, or FTP site.
In addition, these keys can be assigned to store Total Recall (TRI) and
3D Volume Data by checking the desired box. Once the box is checked,
pressing the designated store or print key will store ‘Total Recall’ (pre-
scan converted data) or 3D Data.
These keys can be configured in Setup/Keys/Image Store-Print Buttons. Any of these
keys can be configured for any subset of store/print destinations.

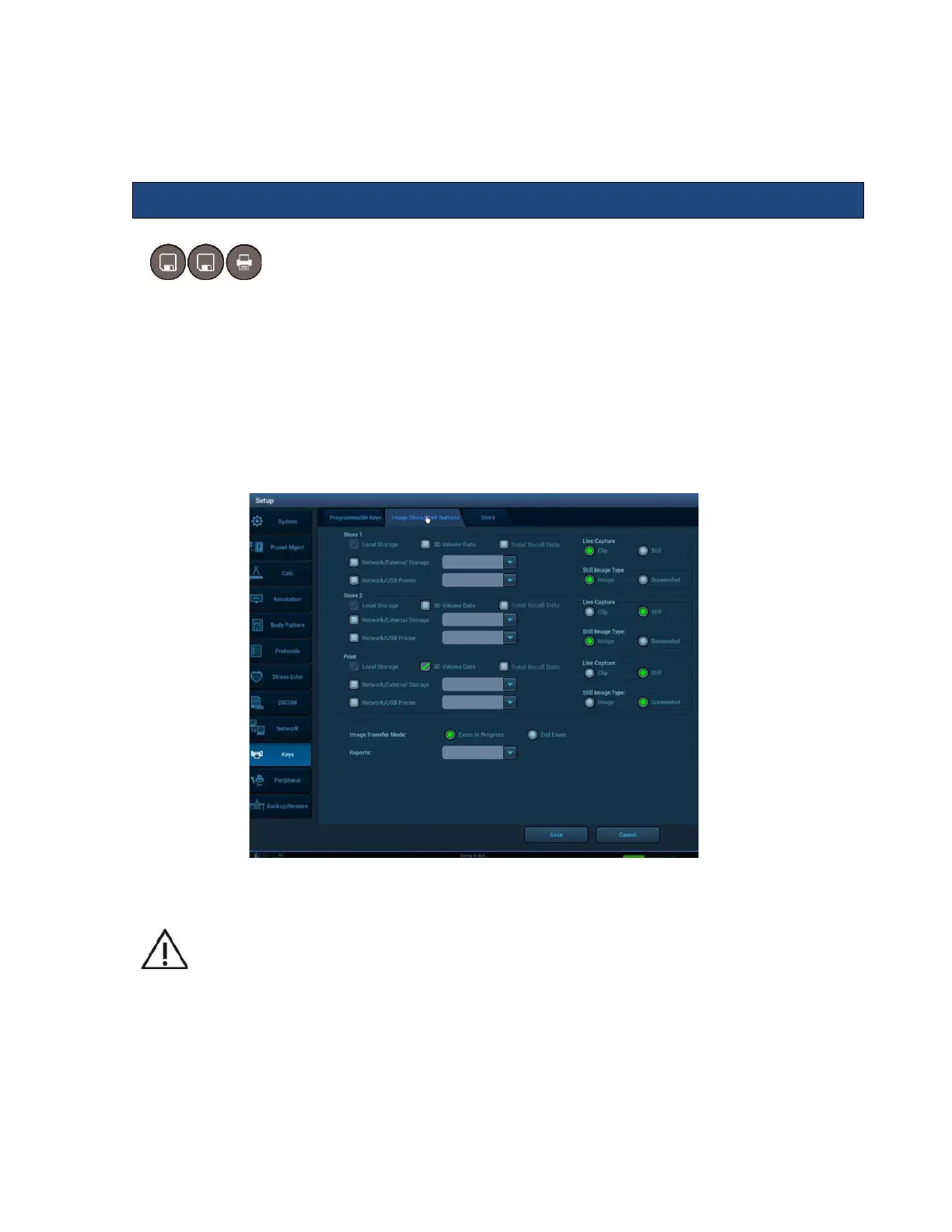

Figure 7-1: Setup; Keys; Image Store/Print Buttons
To avoid data loss, always use back up storage/archive devices. Do not delete
patient data and images from the scanner until the backup has been completed
and the ability to read transferred details is verified.
