ZS3 Instructions for Use
53 | P a g e

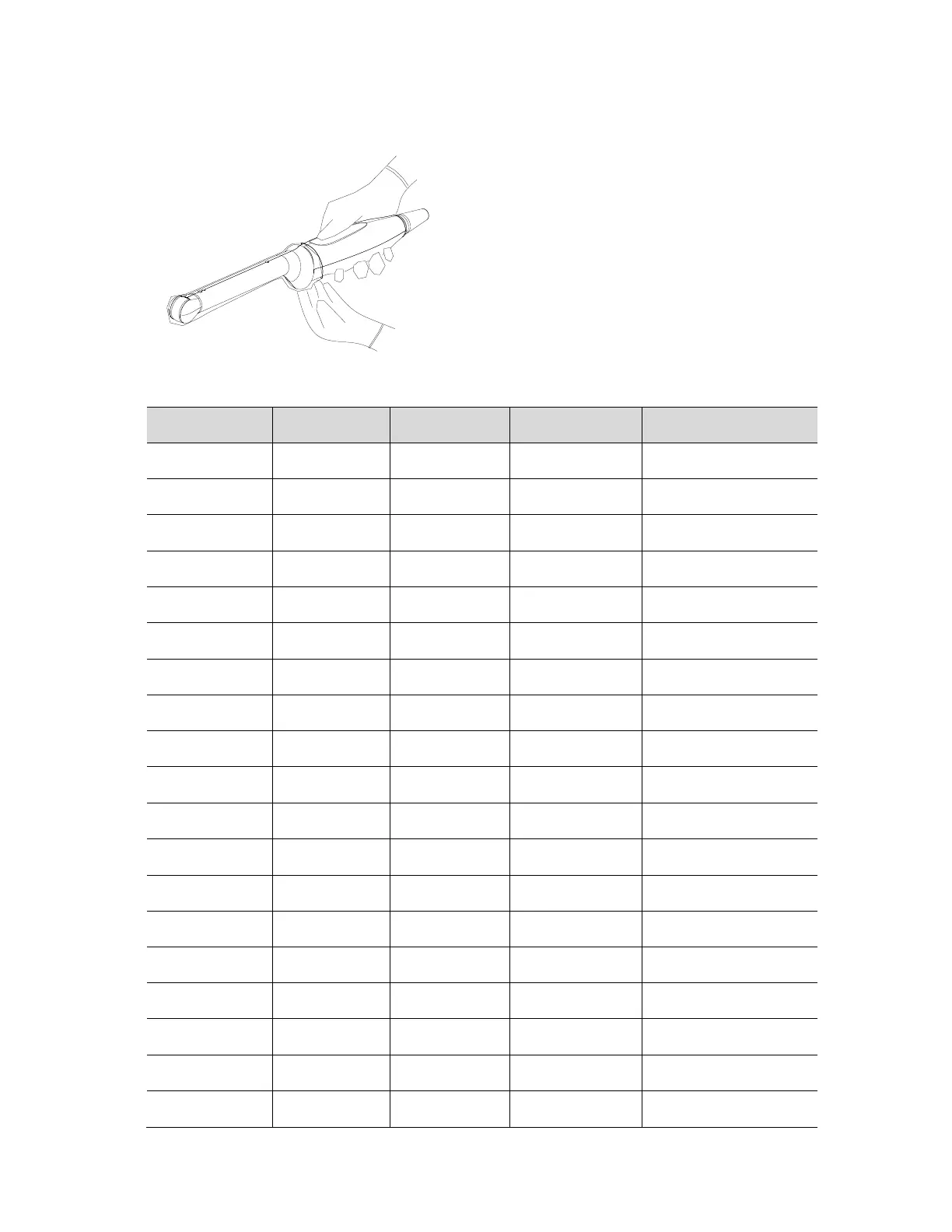

3. Secure the sheath with the enclosed elastic
bands.
4. Inspect the sheath to ensure there is no
hole or tear.
Refer to the following dimension table of all probes to choose the necessary probe sheath type.
Probe Length(mm) Width(mm) Height(mm) Cable Length(mm)
A2CW 120 80 18 1750±50
A5CW 123 11.2 11.2 1750±50
C4-1 98.1 45.8 25.4 1980±50
C6-2 111.2 68.1 31 1950±50
C6-1 112.4 76.5 28 1950±50
C8-3 3D 116.5 70 42.6 1950±50
C9-3 107.8 49.3 25.8 1980±50
C9-3sp 44.5 46 37.5 2525±50
C10-3 72.5 28.6 23 2000±50
C18-5 98 43 24.1 1980±50
L14-5w 98 66.5 25.6 1980±50
L14-5sp 95.1 70.8 25.4 2489±50
L10-5 106.5 43.3 31 1950±50
L20-5 98 43 24.1 1980±50
L8-3 100.1 56.3 27.9 1950±50
E9-3 3D 297.1 39.6 32.2 1950±50
E9-3 301 44.6 34.2 1950±50
E9-4 301 44.6 34.2 1950±50
P4-1c 89 35.2 28.6 1980±50
