3. Assembling the Detector
Please follow these instructions to assemble the Eureka Gold. Refer to
the drawings to identify parts and how they are positioned. Please contact
your Minelab dealer for further instructions should any difficulties arise.
3.1 Armrest/Upper Shaft Assembly
a) Place the two armrest halves (4) on either
side of the upper shaft (2) and ensure that
the bolt hole is aligned.
b) Slide the nylon bolts through the bolt holes
and screw the nylon wing nuts (12) onto
the bolts with a couple of turns (do not
tighten).
c) Slide the detector stand (7) into the
runners of the armrest (4) and tighten the nylon wing nuts by hand.
d) Attach the armrest straps (6) using the press studs on both sides of
the armrest.
e) Push the armrest straps through the slots in the armrest cover (5) and
push the cover over the armrest.
3.2 Lower Shaft Assembly
a) Remove the tape on the lower fibreglass tube
(3) that is holding the black teardrop washers
(10) in place.
Note: Ensure the washers do not fall out after
removing the tape.
b) Remove the black nylon wing nut (12), and
bolt (11) from the coil (9).

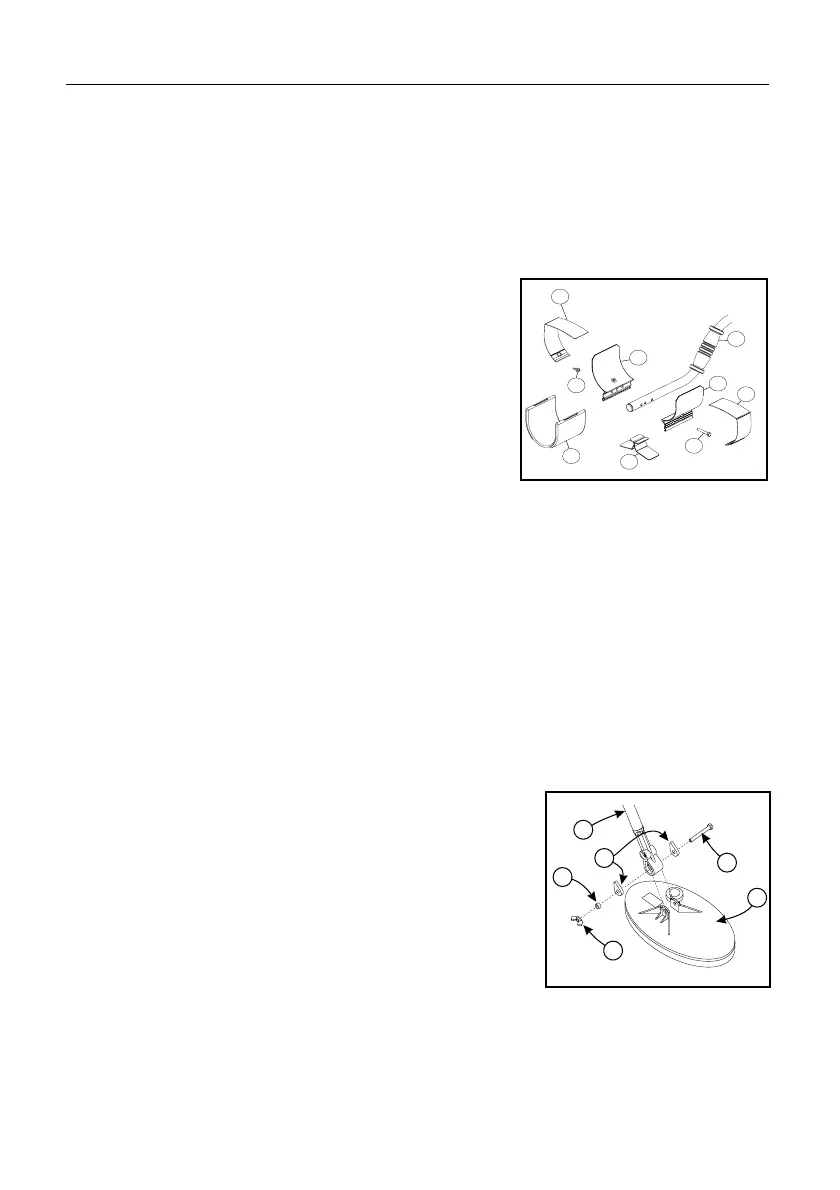

Figure 2 - Armrest/Upper
Shaft Assembly
6
4
12
5
7
11
2
4
6
P0570-A
Figure 3 - The Coil and
Lower Shaft Assembly
10
9
11
P0588-A
19
3
12
