Page 8 The Minelab Eureka Gold
c) With the teardrop washers in place, push the lower tube (3) into the
coil bracket so that the holes line up.
Note: Ensure that the black nylon spring clip near the top of the fibreglass
tube is pointing toward the rear of the coil.
d) Push the black nylon bolt (11) through the holes in the bracket on the
coil from the cable entry side, put on the spacer (19) and tighten the
wing nut (12) by hand.
3.3 Completing the Shaft Assembly
a) Slide the lower shaft assembly (3) into the Aluminium upper shaft (2).
Note: The black plastic locking nut (18) may need to be loosened to
position the lower shaft assembly correctly.
b) Set the length of the shaft by locking the black nylon spring clip
into one of the holes provided, then tighten the plastic locking nut.
3.4 Shaft Mount
a) Position the control box so that the recess in the control box (1) is aligned
with the leading edge of the mounting clip (8). Push the
forward section of the control box upwards until the trigger ‘clicks’
indicating the control box is secured (see figure 5).

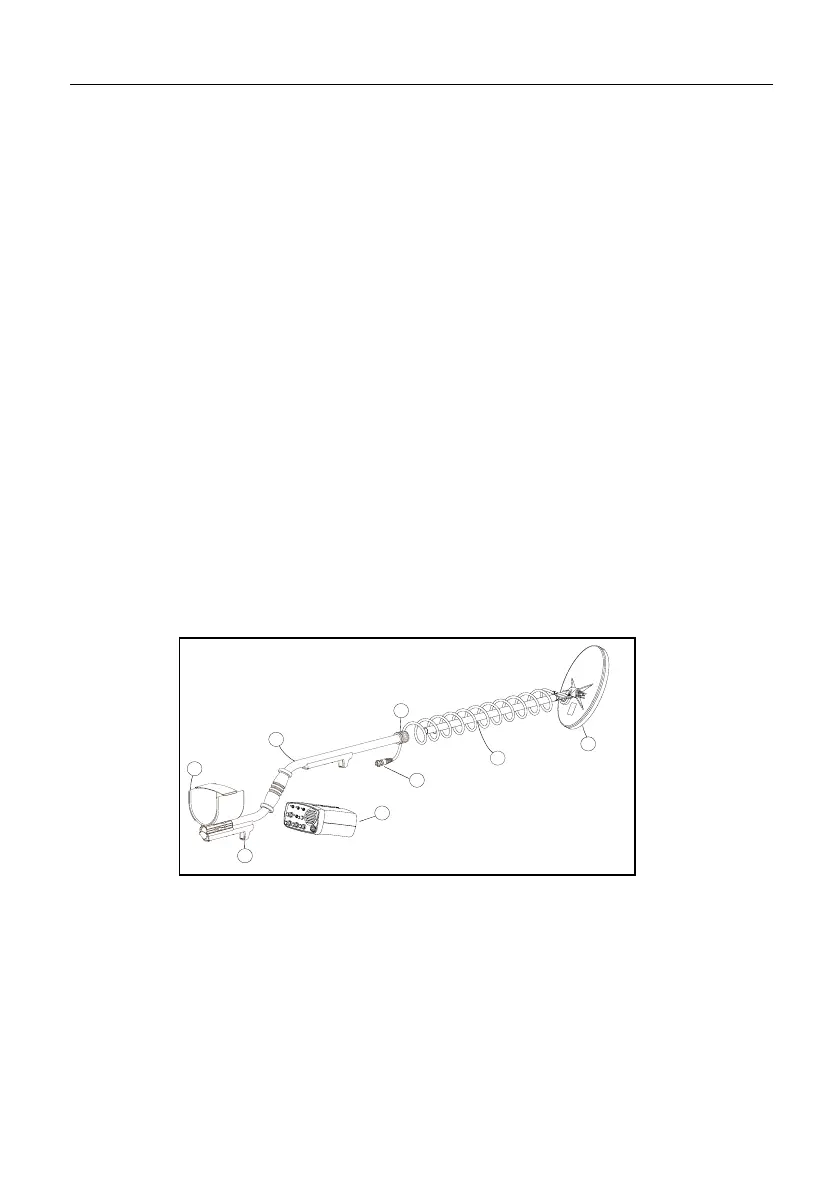

Figure 4 - Completing the Shaft Assembly
2
18
1
4
8
3
9
13
P0585-A
