12 | minnkotamotors.com
©2015 Johnson Outdoors Marine Electronics, Inc.

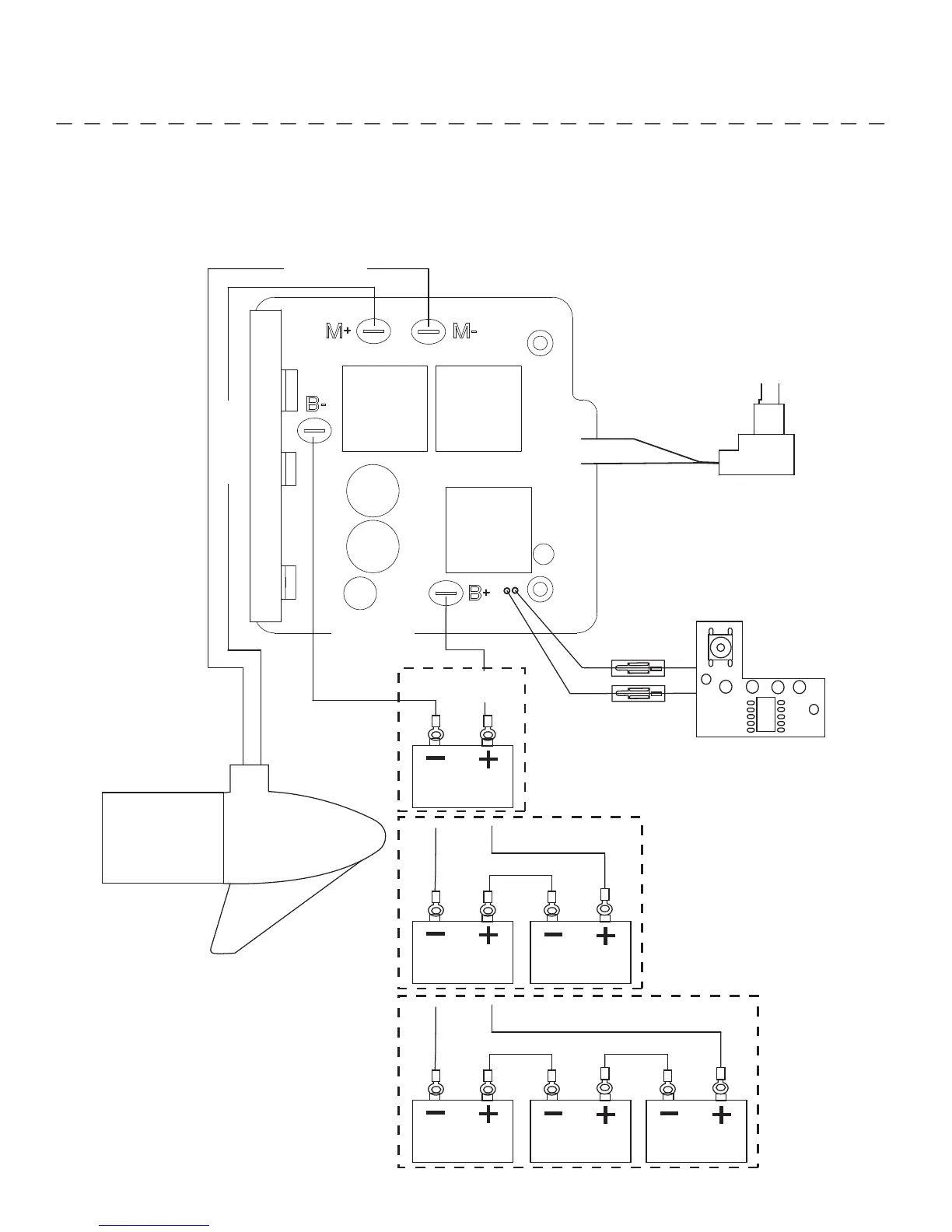

MOTOR WIRING DIAGRAM
NOTE: This is a universal, multi-voltage diagram. Double-check your motor's voltage for proper connections. Over-Current
Protection Devices not shown in this illustration.
12v
24v
36v
BLACK M-
RED M+
RED B+
MOTOR
SPEED
ADJUSTMENT
SWITCH
BATTERY GAUGE
RED
12V BATT 1
12V BATT 1 12V BATT 2
12V BATT 1 12V BATT 2 12V BATT 3
BLACK
BLACK B-
