34 | minnkotamotors.com
©2015 Johnson Outdoors Marine Electronics, Inc.

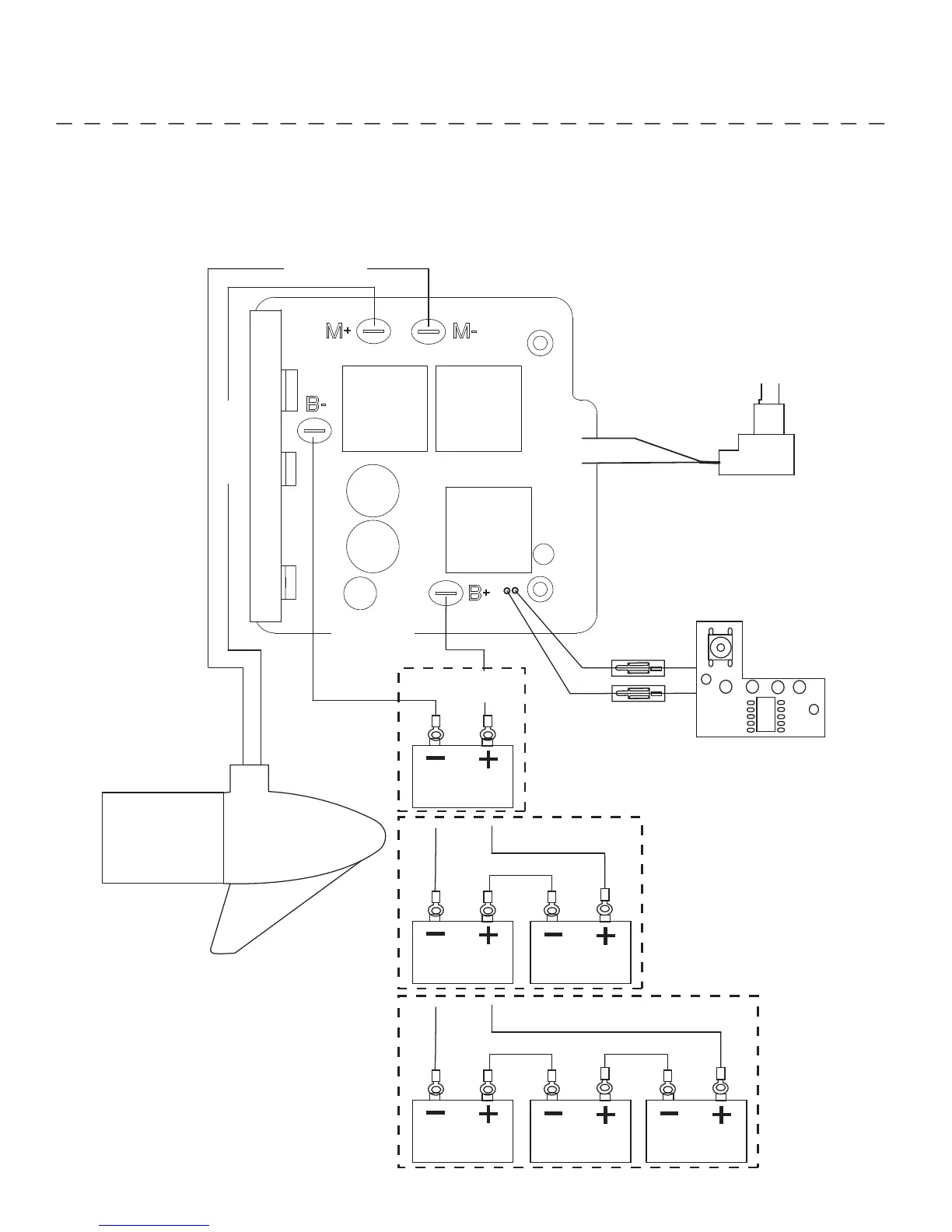

SCHÉMA DE CÂBLAGE DU MOTEUR
REMARQUE: Il s’agit d’un schéma multi-tensions universel. Vérifier à nouveau la tension du moteur afin de vous assurer que les
raccordements sont appropriés. Les dispositifs de protection contre la surintensité ne figurent pas dans cette illustration.
12v
24v
36v
NOIR M-
ROUGE M+
ROUGE B+
MOTEUR
INTERRUPTEUR
DE RÉGLAGE
DES VITESSES
JAUGE DE LA
BATTERIE
ROUGE
12V BATT 1
12V BATT 1 12V BATT 2
12V BATT 1 12V BATT 2 12V BATT 3
NOIR
NOIR B-
