ADJUSTING THE TILT/EXTEND TILLER

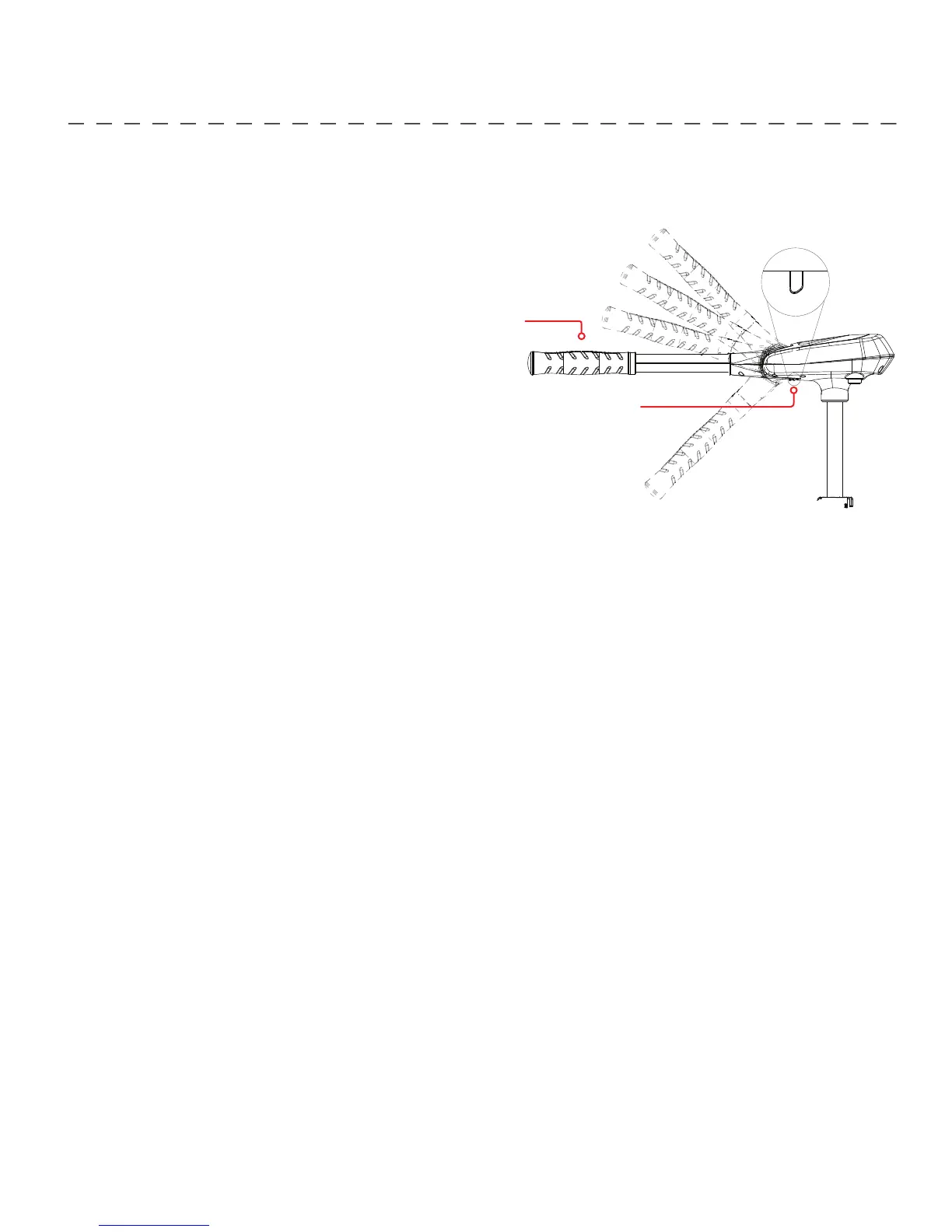

Your trolling motor features 7 usable handle tilt positions: 45°, 30°, and 15° up and
down from the 0° (horizontal) position. To use the down positions, you must fi rst press
the release button located on the left underside of the pivot handle.
Your trolling motor handle also features a unique stow
position, that is useful for limiting the amount of space
required for storage or travel.
Important: BEFORE attempting to put the
handle in the stowed position, the speed selector
must be in the OFF/STOW position . Failure to do
so will damage the internal mechanism.
First press the release button located on the left underside of the pivot handle,
then push the handle down until you feel the handle “lock in” to the stowed
position. This will be almost parallel to the motor shaft.
To extend the handle, pull the handle towards you to the desired position.
The handle will extend a full 6 inches. To retract, push the handle in until it
meets the face of the motor control head.
Handle Controls:
Off /On, Steering, and
Forward/Reverse
Release Button
minnkotamotors.com | 15
©2015 Johnson Outdoors Marine Electronics, Inc.
USING & ADJUSTING THE MOTOR
