minnkotamotors.com | 7
©2015 Johnson Outdoors Marine Electronics, Inc.
MOUNT INSTALLATION
2
1
INSTALLATION OF THE BOW-MOUNT
We recommend that you have another person help with this procedure.
1. For installation, DO NOT REMOVE THE SHAFT/MOTOR FROM THE BOWGUARD. The Bowguard spring is
under tension and must always remain secured.
2. Place the mount, with the motor in the fully stowed (fl at) position, on the deck of the
boat:
• The motor should be mounted as close to the centerline of the boat as possible
when it is deployed (see illustration).
• Make sure bow area under the chosen location is clear and unobstructed for
drilling.
• Make sure the motor rest is positioned far enough beyond the edge of the
boat. The motor, as it is lowered into the water or raised into the boat, must not
encounter any obstructions

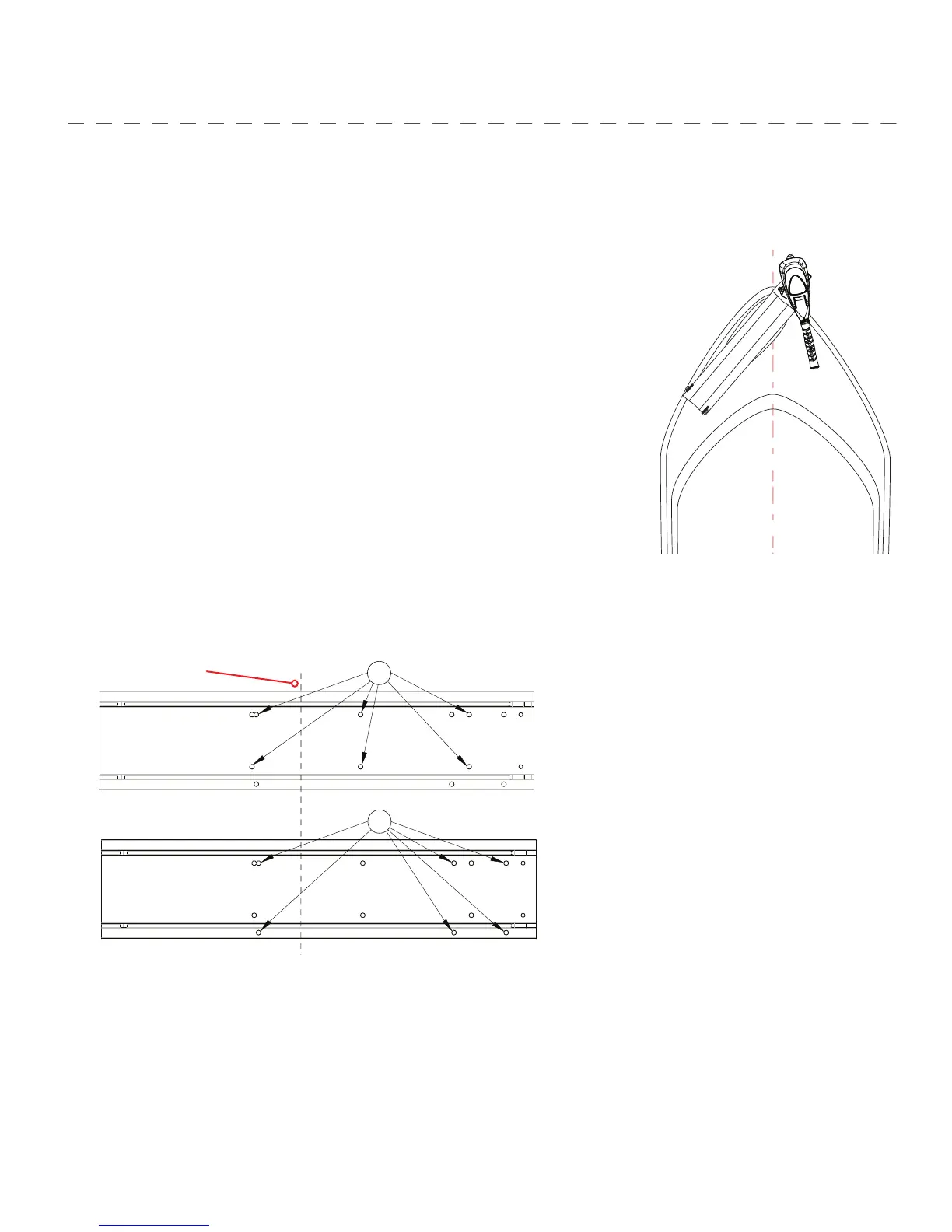

3. Once in position, determine which bolt pattern to use (see below), mark at least 4
of the holes (2 on each side) in the bow plate and drill through with a 9/32” drill bit.
Either pattern may be used when installing the motor.
- Pattern 1: Minnkota 3” bolt pattern standard motors.
- Pattern 2: Alternate 4” bolt pattern commonly used.
NOTE: If pattern 2 is to be used, the right side plate must be removed to access the mounting holes in the bow plate.
4. Install hold down strap between the motor and deck of boat between second and third set of mounting holes.
5. Mount the plate to the bow through the drilled holes using the provided (1/4-20 x 3-1/2”) bolts, nuts and washers.
NOTE: If possible, secure all sets of mounting bolts, nuts and washers.
6. Install the bow mount stabilizer (if included). See next section for installation instructions.
WARNING: The gas assist lift mechanism in this unit is under HIGH SPRING PRESSURE when the motor is in the deployed
position. DO NOT remove the Bowguard assembly from the mount without disconnecting one end of the gas spring (see
Removal of Bowguard section). Failure to do this can create a condition where accidental pulling of the rope may cause the
mount to spring open rapidly, striking anyone or anything in the direct path.
Hold Down Strap
To Next Page
