13

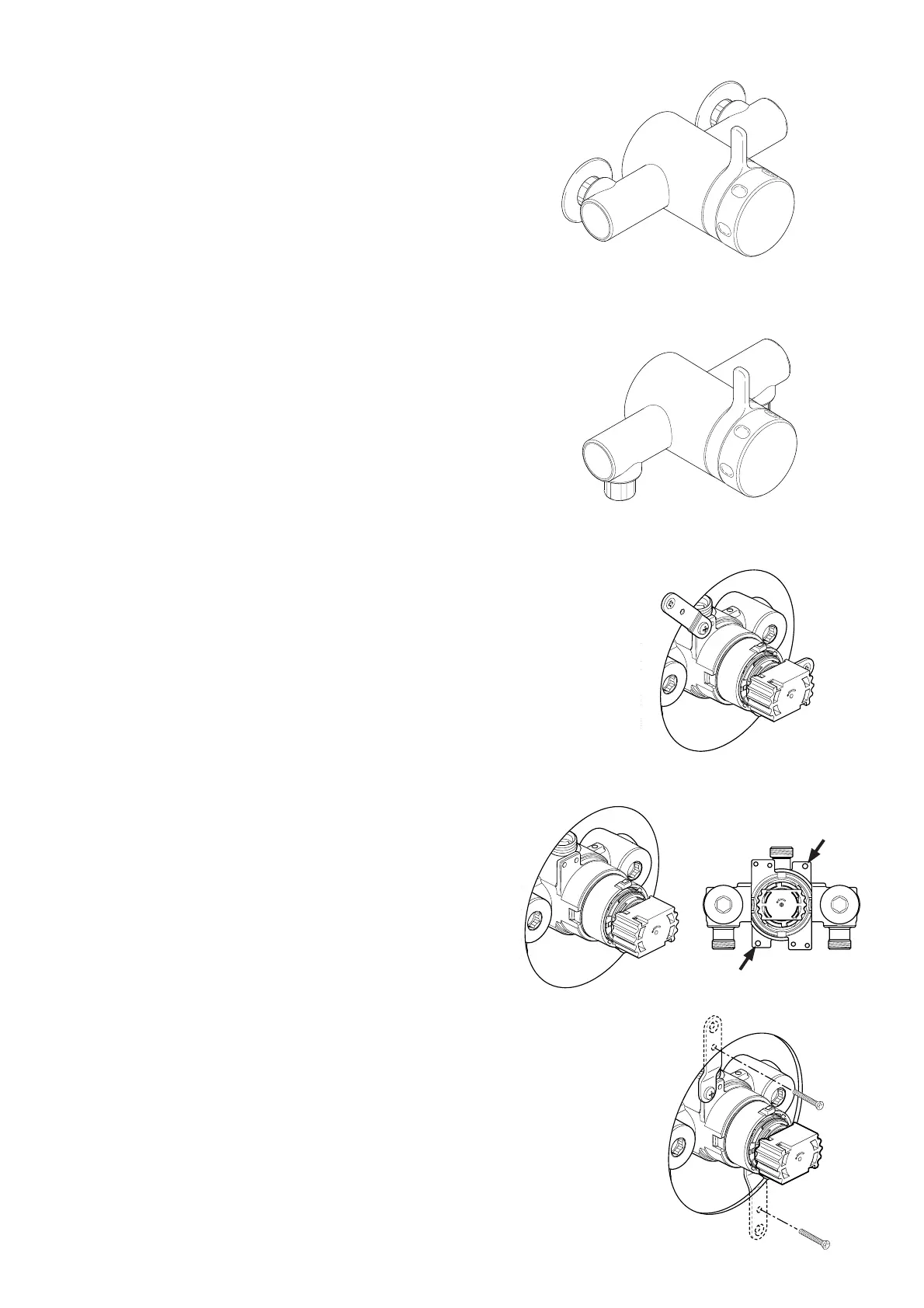

Rear Entry Supplies
Rising or Falling Supplies
Securing Brackets
(mounting on front
surface of wall)
Mounting using
rear fi xing points
Securing Brackets
(mounting on rear
surface of wall)
Installation Methods
Exposed Select Thermostatic Mixer
The Exposed Select Mixer can be installed
with rear, rising or falling supply inlets.
The exposed model has inlet elbows
which adjust between 149 mm - 154 mm.
This feature assists the installation onto
misaligned pipework.
For rear entry supplies, refer to section:
“Exposed Thermostatic Mixer, 1. Rear
Entry Supplies” for further details.
For rising or falling supplies, refer to
section: “Exposed Thermostatic Mixer,
2. Rising or Falling Supplies” for further
details.
Built-in Select Thermostatic Mixer
The Built-in Select Mixer can be installed
with rising or falling supply inlets (rising
inlets are illustrated).
The unit can be installed using the rear
fi xing points, or by using the Securing
Brackets (supplied) on the front surface of
a solid wall or stud partition, or on the rear
surface of a laminated panel.
For an installation into a solid wall or stud
partition using the Securing Brackets, refer
to section: “Built-in Thermostatic Mixer,
1. Solid Wall or Stud Partition (Using
Securing Brackets - Mounting on Front
Face of Wall)” for further details.
For an installation into a solid wall or stud
partition using the rear fi xing points, refer
to section: “Built-in Thermostatic Mixer,
2. Solid Wall or Stud Partition (Using
Rear Fixing Points on Thermostatic
Mixer)” for further details.
For an installation behind a laminated
panel using the Securing Brackets, refer
to section: “Built-in Thermostatic Mixer,
3. Laminated Panel (Using Securing
Brackets - Mounting on Rear Face of
Wall)” for further details.
To Next Page
